Product Description

YX25-810 Glazed Tile Roll Forming Machine

1. Main features of Glazed Tile roll forming machine

The advantages of Glazed Tile machine are as follows:

1. Low cost, lightweight but high strength, short building period, and re-cycle use

2. Save material, no waste.

3. Easy operation, low maintenance cost

4. Infinite sizing(any size within machine range), help to save material

5. Optional Punch hole at any position of purlin web side and flange side

2. Detailed Images of YX25-810 Glazed Tile forming machine

Machine Parts

1) YX25-810 Glazed Tile machine pre-cutter

Brand: BMS Original: China

With feeding material guide.

2) YX25-810 Glazed Tile machine rollers

Brand: BMS Original: China

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

with black treatment or Hard-Chrome Coating for options.

Body frame made from 350# H type steel by welding

3) YX25-810 Glazed Tile machine punching mold

Brand: BMS Original: China

4) YX25-810 Glazed Tile machine post cutter

Brand: BMS Original: China

Made by high-quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa

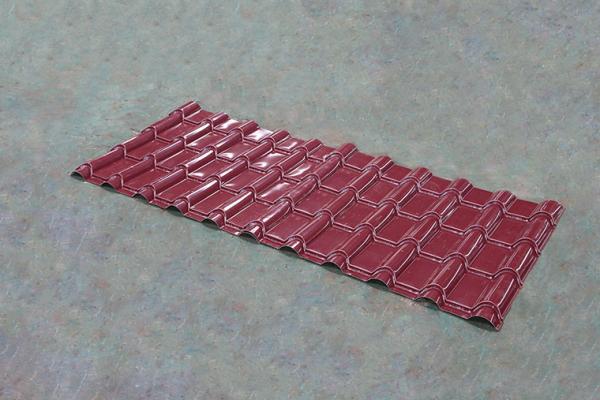

5) YX25-810 Glazed Tile machine product show

Brand: BMS Original: China

5) YX25-810 Glazed Tile machine decoiler

Brand: BMS Original: China

ManualDecoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max. feeding width: 1200mm, coil ID range 508mm±30mm

Capacity: 5-9 Ton

With 6 tons hydraulic decoiler for option

6) YX25-810 Glazed Tile machine control cabinet

Brand: BMS Original: China

Other detailes of YX25-810 Glazed Tile roll forming machine

Suitable for material with thickness 0.5-0.8mm

Shafts manufactured from 45#, Main shaft diameter=φ75mm, precision machined

Motor driving, Gear chain transmission, 14 steps to form.

Main motor=5.5KW, Frequency speed control. Forming speed of approx.5-8m/min

PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,

Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manual in English

After-sale service of glazed tile roll forming machine

1. The warranty of glazed tile roll forming machine

is one year after the client receives the machine.

Within one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories at extra cost.

Terms of trade

1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore,

Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique,

Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
