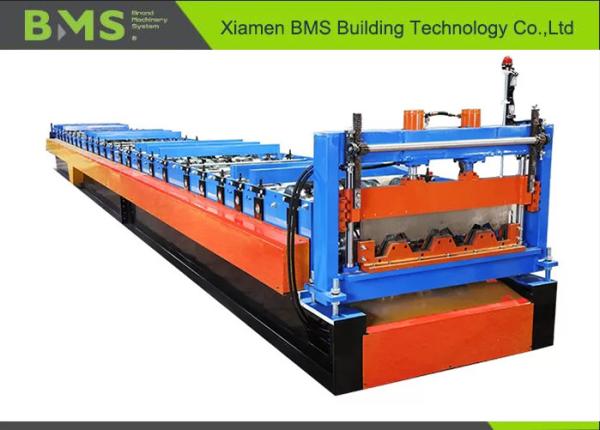

0.5-1.0mm Thick Steel Deck Roll Forming Machine , Floor Tile Deck Making Machine
0.5-1.0mm Thick Steel Deck Roll Forming Machine , Floor Tile Deck Making Machine
Specifications
Brand Name :
BMS
Model Number :
YX90-306-918
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50sets/month
Packaging Details :
Nude packing in the container suitable for long term transportation.
Delivery Time :
50days
Working material :
galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC)
Thickness :
0.5-1.0mm
Yield strength :
245-550Mpa
Decoiler :
Manual/Hydraulic for options
Housing :
H400 beam
Side wall thickness :
18mm
Shaft :
90mm/100mm
Forming station :
22steps
Cutter material :
Cr12 Tool Steel
Feeding material :
1220mm
Description

steel deck roll forming machine Xiamen Machine Floor Tile Decking Making Machine

1. Details of floor tile making a machine

Material
Material Thickness(&):0.5-1.0mm
Applicable material: Galvanized Steel Coils, Cold Rolled Coils, yield strength 245Mpa or 550Mpa
Machine Components
1)Manual Decoiler: one set
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton
2) Cold Rolling Mills:
Rollers manufactured from bearing steel GCr15, precision machined, hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust) ;
Motor Driving, Gear chain transmission, 22 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and leveling)
Main Motor=15KW, Frequency speed control
Forming speed of approx.12-18m/min
3)Hydraulic Cutting device
hydraulic motor: 4KW, Hydraulic pressure range: 0-12Mpa
Cutting tool material: Cr12, Heat treatment
4)PLC Control System(Touch screen brand: Taiwan WEINVIEW, Inverter brand: Finland VOCAN/Denmark Danfoss, Encoder brand: Japan Koyo)
Control the quantity and cutting length automatically
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±1mm
Control Voltage 24V
5) Exit Rack Un-powered, two units
