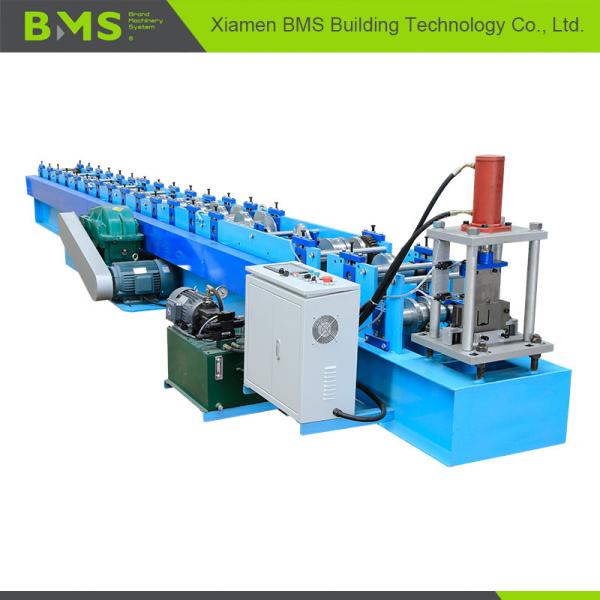

U Shape Cold Roll Forming Machine , 12-15m/min Metal Roll Forming Machine
U Shape Cold Roll Forming Machine , 12-15m/min Metal Roll Forming Machine
U Shape Cold Roll Forming Machine , 12-15m/min Metal Roll Forming Machine
U Shape Cold Roll Forming Machine , 12-15m/min Metal Roll Forming Machine
Specifications
Brand Name :
BMS
Certification :
ISO9001/CE/SGS
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 Set/Sets per Month
Delivery Time :
45DAYS
Packaging Details :
Nude Packing in The Container Suitable for U Shape Cold Roll Forming Machine
Condition :
New
Tile Type :
Steel
Production Capacity :
12-15m/min
Working material :
galvanized sheet(GI),cold roll steel(CRC)
Thickness :
1.2-2.5mm
Yield strength :
245-550Mpa
Decoiler :
Manual/Hydraulic for options
Housing :
H400 beam
Side wall thickness :
18mm
Shaft :
80mm
Forming station :
16steps
Cutter material :
Cr12Mov, Heat treatment
Output :
about 12-15meters per minute
After-sales Service Provided :
Engineers available to service machinery overseas
Port :
Xiamen
Description

U Shape Cold Roll Forming Machine(Metal Roll Forming Machine)

1. Main features of U channel roll forming machine

The advantages of the U channel roll forming machine are as follows:

1. Produce different purlin sizes without changing rollers or spacers.

2. No need changing cutter for different sizes.

3. Easy operation, low maintenance cost

4. Infinite sizing(any size within machine range), help to save material

5. Optional Punch hole at any position of purlin web side and flange side

2. Detailed Images of U channel roll forming machine

Machine Parts

1) U channel roll forming machine straightening part

Brand: BMS Original: China

2) U channel roll forming machine rollers

Brand: BMS Original: China

Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

with black treatment or Hard-Chrome Coating for options.

With feeding material guide, body frame made from 400# H type steel by welding

3) U channel roll forming machine post cutter

Brand: BMS Original: China

No need to change cutter for a different size,

made by high-quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 30mm steel plate by welding
hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa

4) U channel roll forming machine touching screen

5) U channel roll forming machine decoiler

Brand: BMS Original: China

Manual Decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 3Tonc

6) U channel roll forming machine exit rack

Brand: BMS Original: China

Un-powered, one unit
