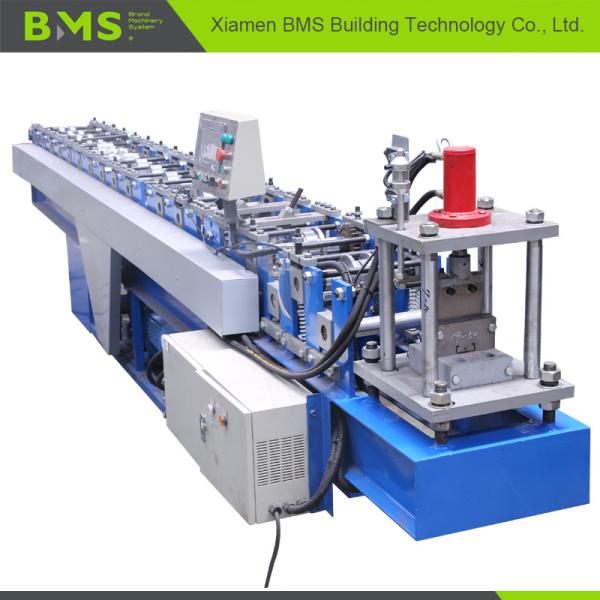

C Shaped Metal Stud And Track Roll Forming Machine 12-15m/Min High Stability
C Shaped Metal Stud And Track Roll Forming Machine 12-15m/Min High Stability
Specifications
Brand Name :
BMS
Certification :
ISO9001/CE/SGS
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 Set/Sets per Month
Delivery Time :
45DAYS
Packaging Details :
Nude Packing in The Container Suitable for Floor Decking Roll Forming Making Machine
Condition :
New
Tile Type :
Steel
Production Capacity :
12-15m/min
Working material :
galvanized sheet(GI),cold roll steel(CRC)
Yield strength :
245-550MPa
Decoiler :
Manual/Hydraulic for options
Housing :
H350 beam
Forming station :
12
Cutter material :
Cr12Mov, Heat treatment
Output :
about 12-15meters per minute
After-sales Service Provided :
Engineers available to service machinery overseas
Port :
Xiamen
Thickness :
0.5-1.2mm
Description

Detailed Images of C shaped steel forming machine
Machine Parts
1) High-speed C section machine arc feeding guide
Brand: BMS Original: China

C section machine rollers
Brand: BMS Original: China
Rollers manufactured from high-quality mold steel Cr12(=D3 steel=SKD11 steel), CNC lathes, Heat Treatment.
with black treatment for options.
With feeding material guide, body frame made from 350# H type steel by welding
C section machine post flying cutter
Brand: BMS Original: China
made by high-quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
servo motor:2.2KW, Hydraulic pressure range: 0-16Mpa

Other detailes

Suitable for material with thickness 0.5-1.2 mm
Shafts manufactured from 45#, Main shaft diameter=φ75mm, precision machined
Motor driving, Gear chain transmission, 12 rollers to form.
Main servo motor=2.0KW, Frequency speed control. Forming speed of approx.25-30m/min



PLC Control System (Touch screen brand: Taiwan WEINVIEW/OneTouch,
Inverter brand: Taiwan DELTA/Jiexun, Encoder brand: Japan Koyo/OMRON)
Combined with: Inverter, TouchScreen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V
User's manual in English
