Specifications
Brand Name :
BMS
Model Number :
75mm
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30sets/month
Packaging Details :
Main body of 75mm Shutter Door Roll Forming Machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x20GP container suitable for long-distance transportation, spare parts are covered by pl
Delivery Time :
28days
Working material :
galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC)
Thickness :
0.6-1.0mm
Yield strength :
235-400Mpa
Decoiler :
Manual/Hydraulic for options
Housing :
H200 beam
Side wall thickness :
18mm
Shaft :
45mm
Forming station :
14
Cutter material :
Cr12 Tool Steel
Output :
about 12-15 meters per minute
Description

75mm Shutter Door Roll Forming Machine

1. Main features of 75mm Shutter Door Roll Forming Machine

The advantages of Rolling Shutter Roll Forming Machine are as follows:

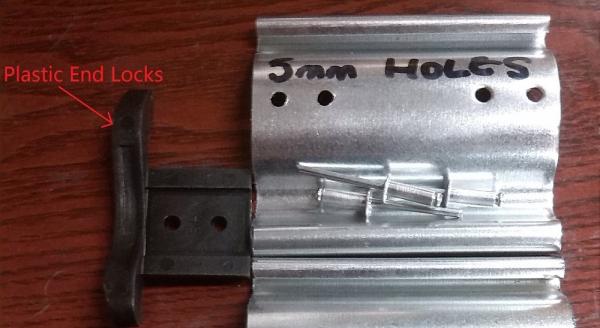

1. Able to produce slat with 2 types of connection: with a punched hole or punched slot.

2. Save space, more convenient.

3. Easy operation, low maintenance cost

4. Stable and durable

75mm Roller Shutter Door Roll Forming Machine With Punched Hole Or Punched Slot

2. Detailed Images of Shutter Door Roll Forming Machine

Machine Parts

1) 75mm Shutter Door Roll Forming Machine Guiding

Brand: BMS Original: China

75mm Roller Shutter Door Roll Forming Machine With Punched Hole Or Punched Slot

2) 75mm Shutter Door Roll Forming Machine Rollers

Brand: BMS Original: China

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

With 0.04mm Hard-Chrome Coating for long working life

Body frame made from 200# H type steel by welding

75mm Roller Shutter Door Roll Forming Machine With Punched Hole Or Punched Slot

3) 75mm Shutter Door Roll Forming Machine post cutter

Brand: BMS Original: China

Made by high-quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 20mm steel plate by welding

75mm Roller Shutter Door Roll Forming Machine With Punched Hole Or Punched Slot

75mm Roller Shutter Door Roll Forming Machine With Punched Hole Or Punched Slot

4)75mm Shutter Door Roll Forming Machine PLC control cabinet

Brand: BMS Original: China

75mm Roller Shutter Door Roll Forming Machine With Punched Hole Or Punched Slot

5) 75mm Shutter Door Roll Forming Machine decoiler

Brand: BMS Original: China

Manual Decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max. feeding width: 300 mm, coil ID range 470mm±30mm

Capacity: Max. 1.5 Ton

75mm Roller Shutter Door Roll Forming Machine With Punched Hole Or Punched Slot

6) 75mm Shutter Door Roll Forming Machine run out table

Brand: BMS Original: China

Un-powered,3units

75mm Roller Shutter Door Roll Forming Machine With Punched Hole Or Punched Slot

Other detailes of 75mm Shutter Door Roll Forming Machine

Suitable for material with thickness 0.6-1.0mm

Shafts manufactured from 45#, Main shaft diameter=φ45mm, precision machined

Motor driving, Gear chain transmission,14 steps to form

Main motor: 4KW, Hydraulic motor:2.2 KW

Frequency speed control. Forming speed of approx.12-15m/min

PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,

Inverter brand: German Schneider Electric/Taiwan DELTA/SHILIN, Encoder brand: Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manual in English

After-sale service of 75mm Shutter Door Roll Forming Machine

75mm Roller Shutter Door Roll Forming Machine With Punched Hole Or Punched Slot

1. The warranty of 75mm Rolling Shutter Roll Forming Machine

is one year after the client receives the machine.

Within one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories at extra cost.

Terms of trade

1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore,

Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique,

Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
