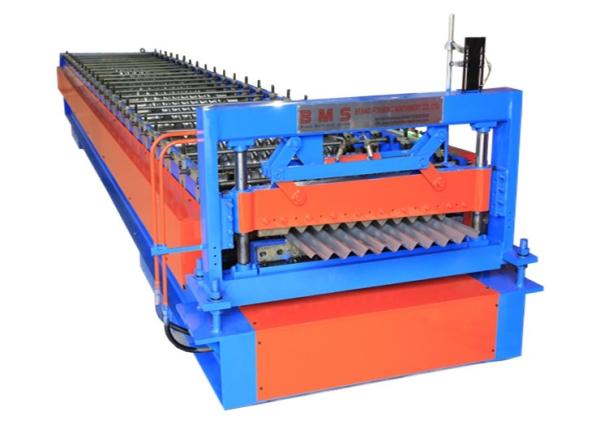

Customized Corrugated Sheet Roll Forming Machine , Corrugated Roof Making Machine
Customized Corrugated Sheet Roll Forming Machine , Corrugated Roof Making Machine
Specifications
Brand Name :
BMS
Model Number :
YX18-75-975
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50sets/month
Packaging Details :
Nude packing in the container suitable for long term transportation.
Certification :
SGS/ISO9001/CE
Delivery Time :
60days
Working material :
galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC)
Thickness :
0.25-0.6mm
Yield strength :
G350-G550Mpa
Decoiler :
Manual/Hydraulic for options
Housing :
H400 beam
cut-to-length tolerance :
±1mm
Shaft :
75mm
Forming station :
About 22 stations
Cutter material :
Cr12 Tool Steel
Roller material :
Gcr15/Cr12/SKD11
Description

corrugated roof making machine corrugated sheet roll forming machine corrugated panel machine

Product Application

This machine takes GI/PPGI as raw material, through a series of steps and can produce the barrel type roofing sheets.

The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

TECHNICAL PARAMETERS FOR CORRUGATED PANEL ROLL FORMING MACHINE
Serial Number
Item
Parameters
Remark
Applicable material
Type
GI/PPGI
Thickness
0.25-0.6MM
Yield strength(Mpa)
G245-G550
Main performance parameters
Forming speed(M/MIN)
12-20M/MIN
Machine size(L×W×H)
9*1.5*2
Refer to the machine
Power supply(KW)
7.5+3.0
Motor and Hydraulic Motor
MACHINE COMPONENTS FOR CORRUGATED PANEL ROLL FORMING MACHINE
Name
Model/name
Quantity
Technical description

1.Decoiling system

Hydraulic decoiler

1 set
Capacity: Max. 5Ton, hydraulic control steel coil inner bore expanding, shrinkage and stop.

2.Forming machine
Material Guiding System
1 set
For feeding in the right position no Deviation.
Precutting Device
1 set
Prevent the profile from being unbeautiful because of the rough material.
Main Roll Forming Machine
1 set
About 22 steps, motor driving, and chain transmission. Wall plate structure.
3.Cutting system
Hydraulic Cutting Device
Precutting and post-cutting both.
4.Hydraulic system
Hydraulic Station
1 set
Providing the power of cutting.

5.Control system
PLC Control System

1 set
PLC control system, encoder positioning, and cut-to-length automatically, touch screen operating.
6.Racking system
Exit rack
3 PC
no power.

Main Features

1) We use Taiwan quality.

2) Adopting advanced world famous brand components in computer parts. Like Siemens, Schneider, Sony, etc.

3) Running in a high automatization and intellectualization,no pollution.
