ข้อมูล roll forming Shelf Support Keel Roll Forming Machine For Z Beam Profile

BMS Racking Roll Forming System including Pallet rack roll forming machine/Metal panel rack roll forming machine/Support beam rack roll forming machine and so on.

Machine Description

1. Material:

1) Suitable Coil Thickness: 0.5-1.0mm;

2)Test material thickness:0.8mm

3)Feeding width:58mm
4) Suitable Raw Material: Q235 Galvanized steel sheet

2. Equipment composition

Hydraulic de-coiler 1 set Max. loading 3 Tons

Roll forming System 1 set
Hydraulic cutting device 1 set
PLC Electrical control system 1 set
Hydraulic system 1 set

Decoiler→Feeding And Leveling Device→Hydraulic Punching Hole Device →

Roll Forming System→Hydraulic Post Cutter→Exit Rack

(1) Hydraulic De-coiler

Single - head de-coiler, unilateral discharge
Use hydraulic tightening
Pressure internal intensify

Oil pump type: Vane pump
Max. loading weight: 5000Kg
Max. coiling diameter: 600mm
Working pressure: 10mpa
Max. coil ID range: 508±30mm

2)Feeding & Leveling Device

After uncoiling, the coil goes into the unit guide wheel (Adjustable left and right)

Shafts manufactured from 45# steel, Diameter=φ90mm, plated with hard chrome-coated, precision machined.

Levelling roller are on top two shafts and three shafts, totally five rollers in the following, surface quenching

3)Hydraulic Punching Hole

Pre-punching and Post cutting use the same hydraulic system
Working pressure: 0-16mpa
Mould material: Cr12Mov(=D2 steel), Quenching to 58-62°
Hydraulic station power: 7.5KW

4)Roll Forming System

Main motor: 5.5KW
Drive: Motor drive
Shafts diameter: ￠65mm,
Material 45# quenching and tempering treatment
Roller material: 40Cr Steel, CNC lathes, Heat Treatment, hard Chrome Coated

with thickness 0.04mm, surface with mirror treatment(for longer life and anti-rust)
Stations: 8 stations
The unit adopts frequency conversion 12-18m/min(excluding punching time)
Computer PLC control, operation panel with touch screen display

5)Hydraulic Cutting Device

Hydraulic cutting for Z Beam profile, one for C profile, manual adjusting
Blade material: Cr12Mov quenching to 58°-62°
Cylinder brand: Huade
Working pressure:30mpa
Working travel: 80mm

6)PLC Electrical control system

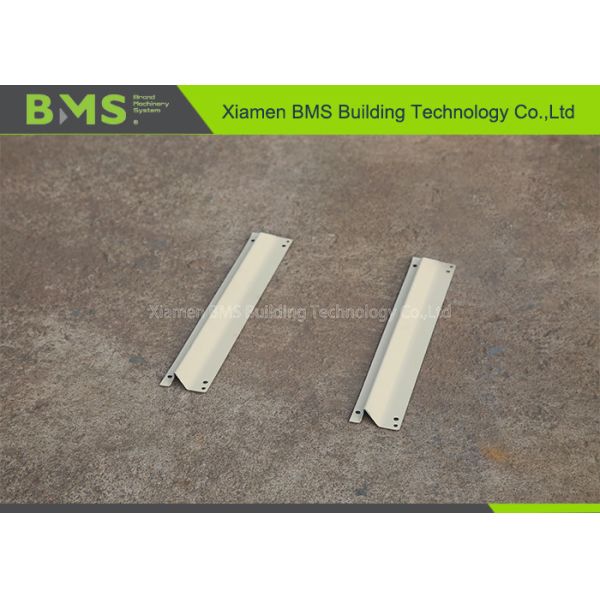

7)Finished products

Packing & Delivery

The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.

Payment terms and after-sale service:

1) FOB Xiamen or CIF your requirement port or L/C.
2) Payment: 30% T/T deposit, and pay the balance before shipping.
3) Delivery time: 45working days.
