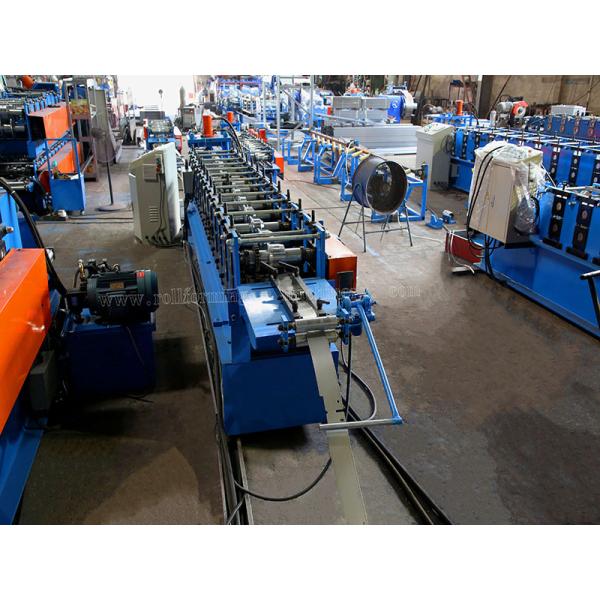

Shelf Bracket Roll Forming Machine For Light Shelf European Design
Shelf Bracket Roll Forming Machine For Light Shelf European Design
Shelf Bracket Roll Forming Machine For Light Shelf European Design
Shelf Bracket Roll Forming Machine For Light Shelf European Design
Shelf Bracket Roll Forming Machine For Light Shelf European Design
Shelf Bracket Roll Forming Machine For Light Shelf European Design
Shelf Bracket Roll Forming Machine For Light Shelf European Design
Shelf Bracket Roll Forming Machine For Light Shelf European Design
Specifications
Brand Name :
BMS
Model Number :
YX28-81
Certification :
SGS/CE/ISO
Place of Origin :
Xiamen，China
MOQ :
1 Set
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
45days
Packaging Details :
Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
Price :
Negotiate
Material of Roller :
High Quality CGr15 Quenched HRC58-62 °
Weight :
about 6T
Warranty :
24 Months Guarantee
Cutting blade material :
Cr12Mov with Quenched Treatment 58-62°
Control system :
Automatic Customized( Standard Siemens)
Form Speed :
12-16m/min
Shaft material :
High Grade No.45 Forged
Applicable material :
Galvanized Steel,Cold Roll Steel
Description

Shelf Bracket Roll Forming Machine suitable For Light Shelf With European Design

Parameter:

Item Parameters
1 Type Racking Roll Forming Machine
2 Thickness 1.5-2.0mm
3 Forming Speed 12-16m/min
4 Forming station 12 steps
5 Main motor 7.5KW
6 Hydraulic Power 5.5 KW
7 Weight About 6 Tons
8 Housing H450

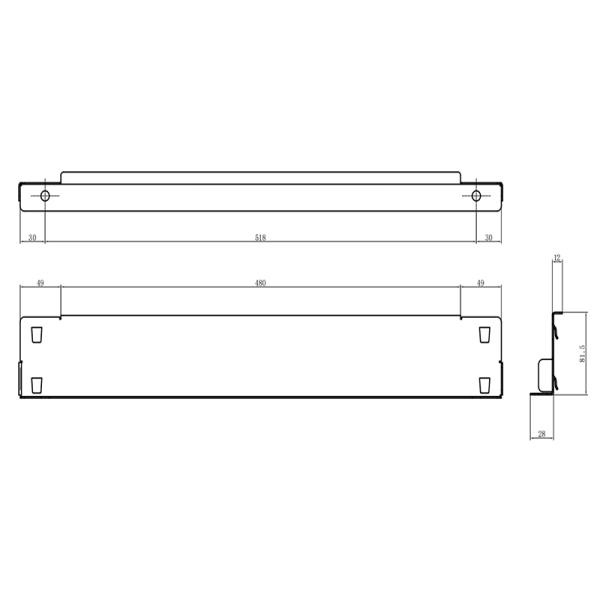

Profile:

Shelf Bracket Roll Forming Machine For Light Shelf European Design

Work Flow:

Decoiler & Leveling Device→Servo Motor Feeding & Punching Device→Feed Guide Device→Roll Forming System→Hydraulic Post Punching & Cutting Device→Exit Rack

Shelf Bracket Roll Forming Machine For Light Shelf European Design

Machine Components:


1) Decoiler & Leveling Device: one set

Un-powered, Manually control steel coil inner bore shrinkage and stop Max Feeding width: 600mm,coil ID range 508mm±30mm Capacity: Max. 3 Ton

Shelf Bracket Roll Forming Machine For Light Shelf European Design

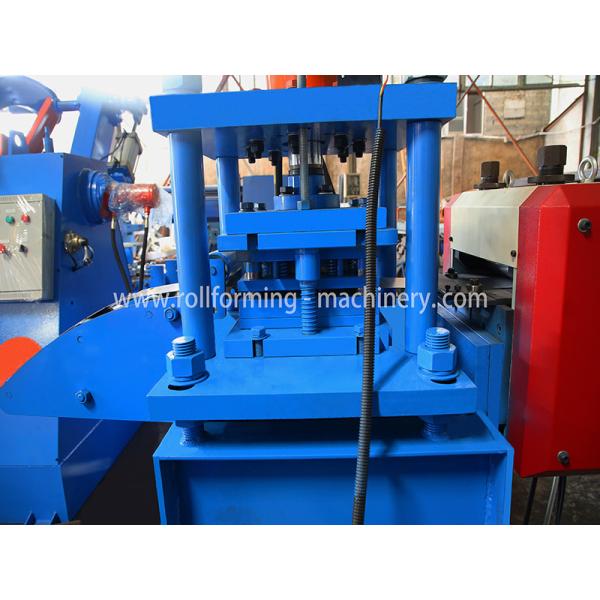

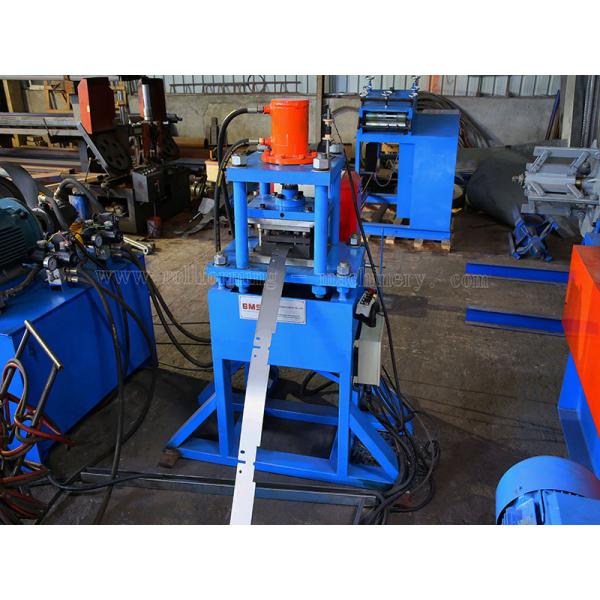

2) Servo Motor Feeding & Punching Device

Shelf Bracket Roll Forming Machine For Light Shelf European Design

Shelf Bracket Roll Forming Machine For Light Shelf European Design

3) Feed Guide Device

The guiding position can be adjusted for suitable material feeding

Shelf Bracket Roll Forming Machine For Light Shelf European Design

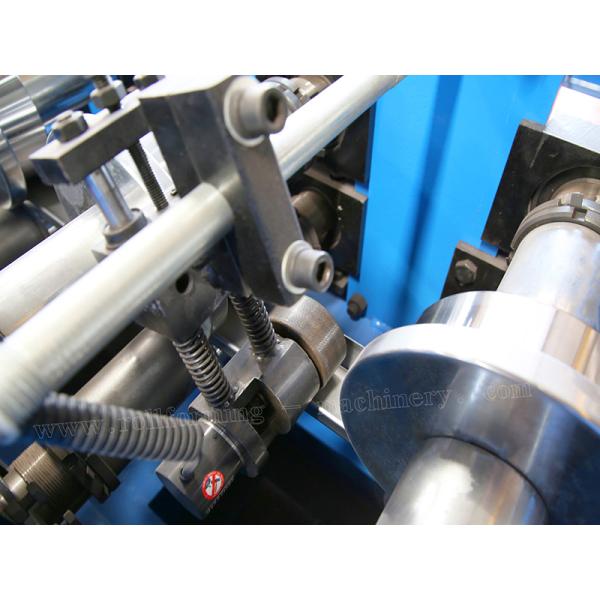

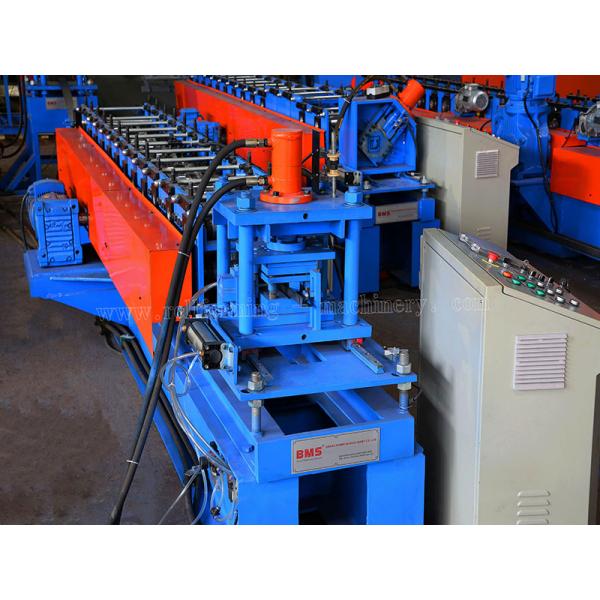

4) Main Machine

Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm

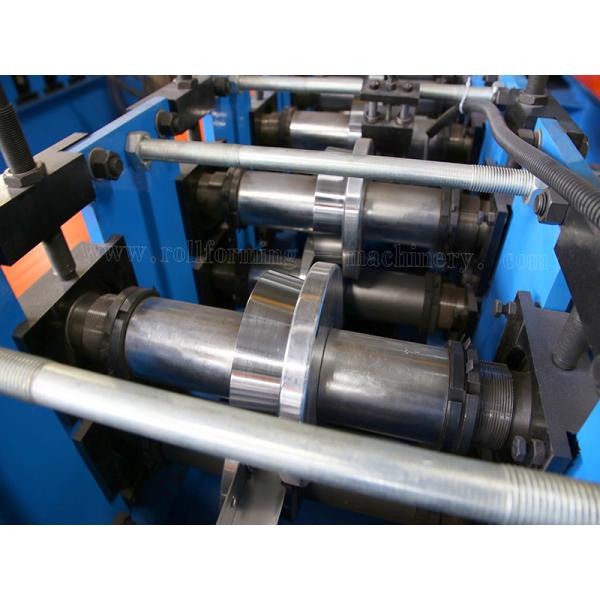

Rollers manufactured from GCr15 Steel,CNC lathes,Heat Treatment
Shafts Diameter=ф70mm,precision machined
Gear/Sprocket driving,about 12-step to form
Main Motor(Polaroid brand)=7.5KW,Frequency speed control
Real forming speed:12-16m/min

Shelf Bracket Roll Forming Machine For Light Shelf European Design

Shelf Bracket Roll Forming Machine For Light Shelf European Design

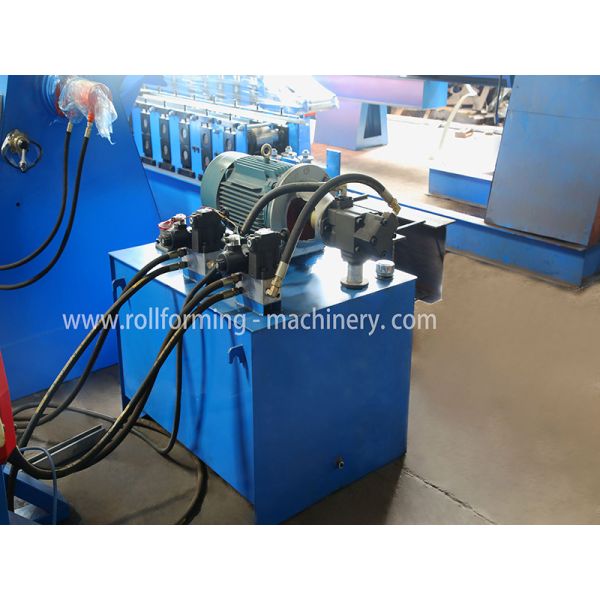

5) Post Hydraulic Cutting Device


Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 5.5KW
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station

Shelf Bracket Roll Forming Machine For Light Shelf European Design

Shelf Bracket Roll Forming Machine For Light Shelf European Design

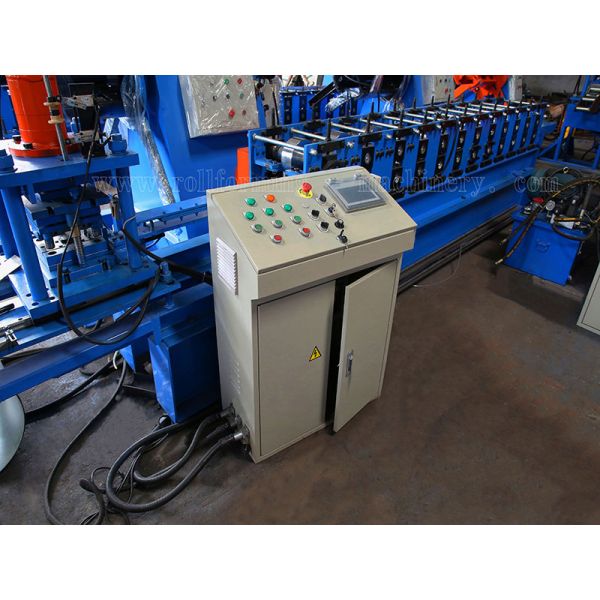

6) PLC Control System


Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

Shelf Bracket Roll Forming Machine For Light Shelf European Design

7)Exit Rack


Un-powered, Two units,with rollers on it for easy movement.

Shelf Bracket Roll Forming Machine For Light Shelf European Design

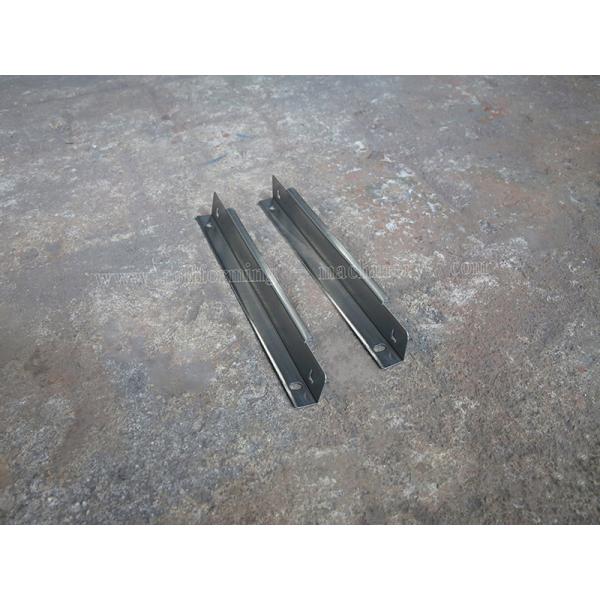

8)Product Show

Shelf Bracket Roll Forming Machine For Light Shelf European Design


After-Sale Service

1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost.


Terms Of Trade


1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 80 countries and regions, including Taiwan, UK, France, Singapore,Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc


Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

Shelf Bracket Roll Forming Machine For Light Shelf European Design
