0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine
0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine
0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine
0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine
0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine
0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine
0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine
0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine
Specifications
Brand Name :
BMS
Model Number :
YX10-900
Certification :
CE/SGS/ISO9001
Place of Origin :
Xiamen,China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
45days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
Material stress :
245---550Mpa
Dimension :
about 7M*1.5M*1.5M
Housing :
H400 beam
Shaft :
75mm
Forming station :
20 steps
Cutter material :
Cr12 Tool Steel
Decoiler :
Manual/Hydraulic decoiler for option
Yield strength :
245-550Mpa
Description

0.3 - 0.8 Thickness Chain Drive Roofing Panel Roll Forming Machine With Taiwan Quality

Technical Parameters:


Material specification		 galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC)

Thickness		 0.3 mm to 0.8mm.

Main motor power		 7.5 kw.

Hydraulic station power		 2.2 kw.

Feeding width		 1200mm.

Yield stress		 245Mpa ~ 550Mpa

Roll forming Speed		 18-20 m/minute.

Cutting Tolerance		 +/-2mm

Manual Uncoiler		 Max. Capacity: 8000kgs.

Coil inner diameter		 470mm±30mm

Voltage		 AC 3-380V/415V/440V

Forming station		 20 stations

Type of cutting		 Roll-formed and length-set profile cutting.


3. Material of Main Equipment:


Roller Material

high quality 45# steel , CNC lathes, Heat Treatment.

with black treatment or Hard-Chrome Coating for options.


Active Shaft Material		 45#,Main shaft diameter=φ75mm,precision machined.

Electric Elements

PLC Control System

Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,

Encoder brand:Japan Koyo/OMRON

Cutter Blades		 Cr12MoV steel with quenched treatment, hardness HRC58~62,

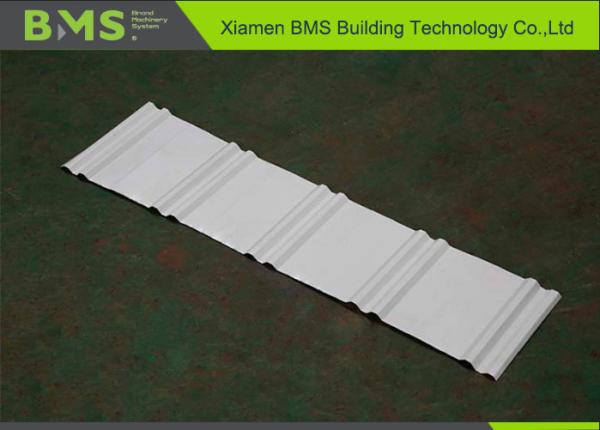

Profile Drawing

0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine

Main features of YX10-900 roof panel machine


The advantages of roof panel machine are as follows:

1.Two ribs on the profile

2.Save space,more convenient.

3.Easy operation, low maintenance cost

4.Stable and durable

Detailed Images of YX10-900 roof panel forming machine

Machine Parts

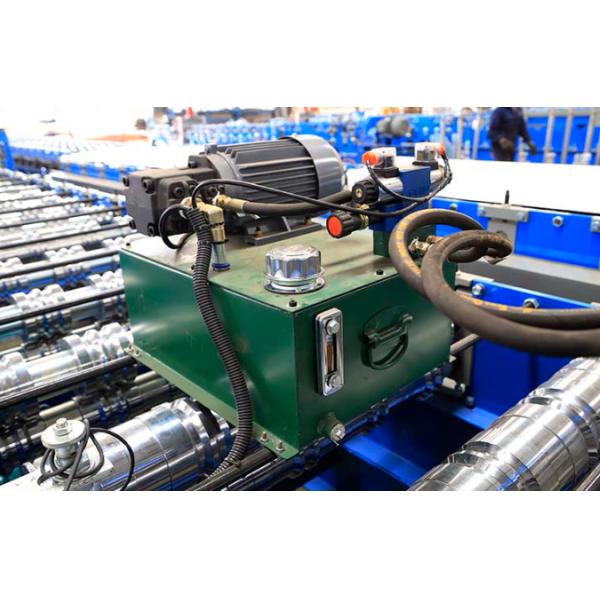

1) YX10-900 roof panel machine hydraulic system

Brand: BMS Original: China

0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine

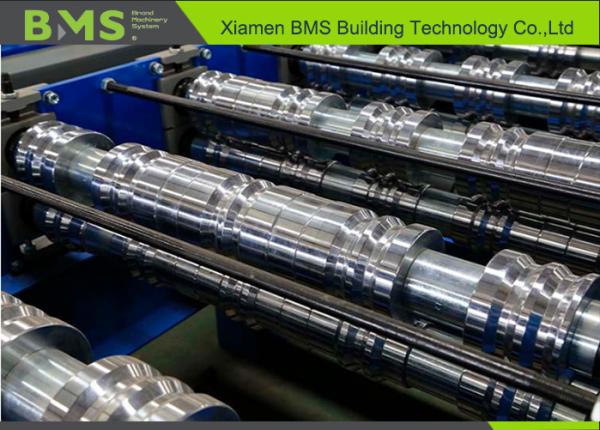

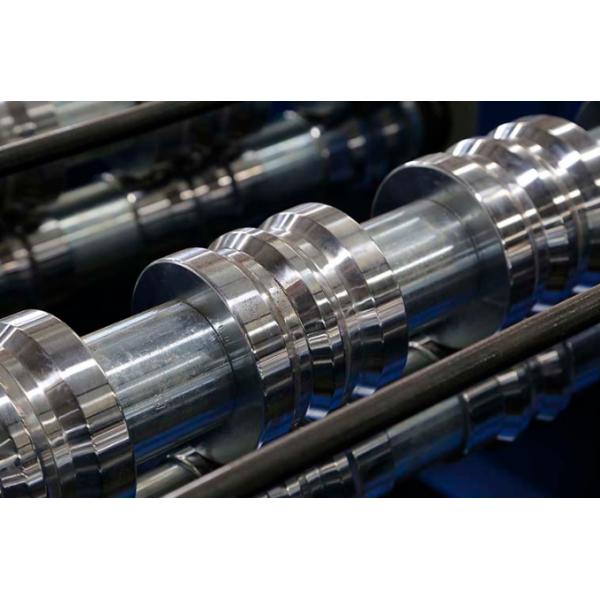

2) YX10-900 roof panel machine rollers

Brand: BMS Original: China

0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine

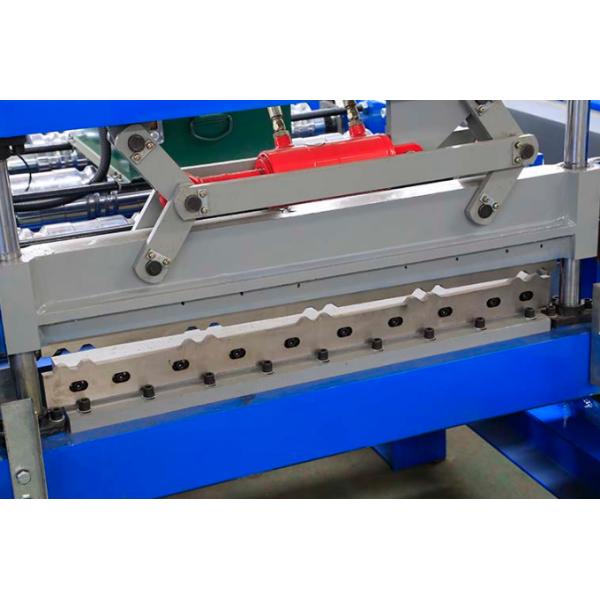

3) YX10-900 roof panel machine post cutter

Brand: BMS Original: China

Cutter frame made from high quality 20mm steel plate by welding
Hydraulic pressure range: 0-16Mpa

0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine

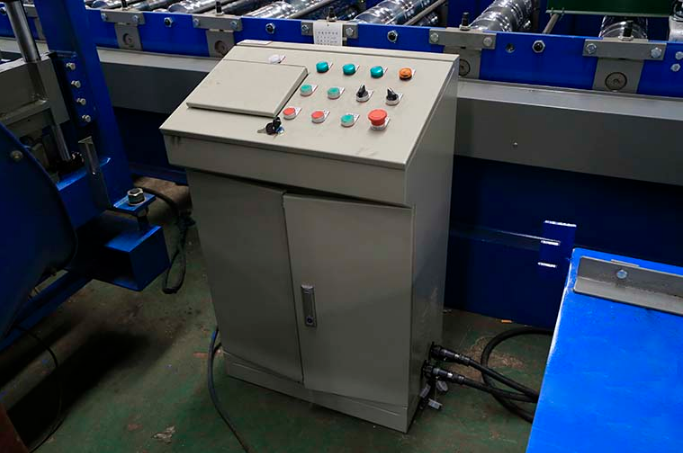

4) YX10-900 roof panel machine control cabinet

Brand: BMS Original: China

Easy to operate

0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine

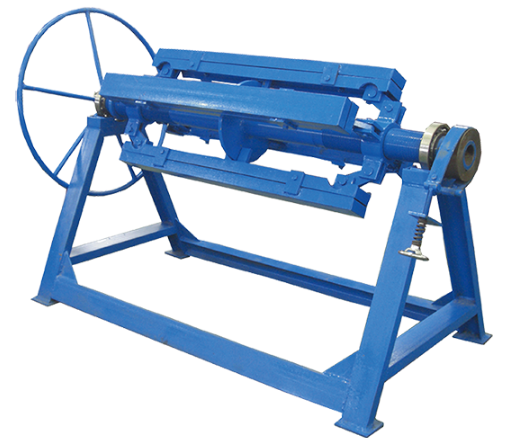

5) YX10-900 roof panel machine decoiler

Brand: BMS Original: China

Manual Decoiler: one set

Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1250mm, coil ID range 470mm±30mm

Capacity: Max. 8 Ton

0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine

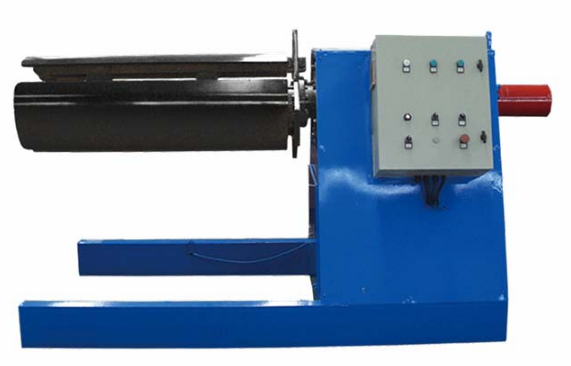

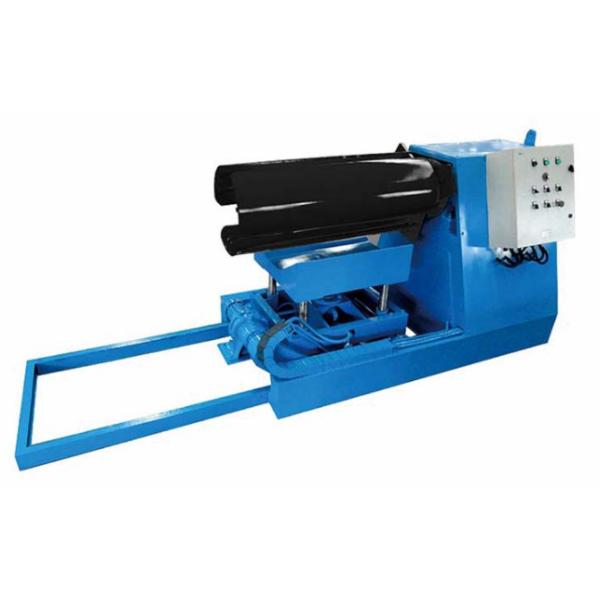

With 6 tons hydraulic decoiler for option

0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine

0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine

Other detailes of YX10-900 roof panel machine

PLC Control System

Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,

Encoder brand:Japan Koyo/OMRON

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English

After-sale service of YX10-900roof panel machine

1. The warranty of YX10-900 roof panel machine is one year after the client receives the machine.

Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
