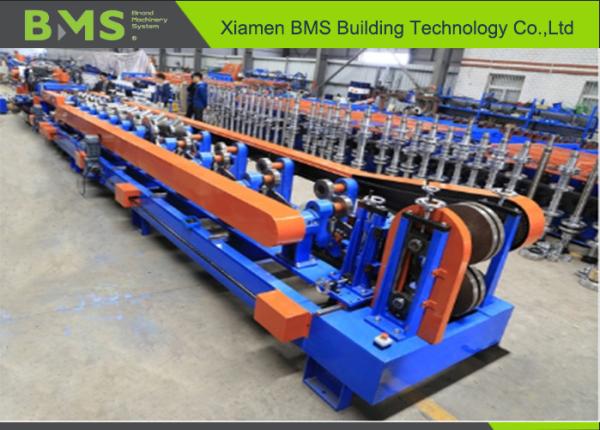

18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler
18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler
18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler
18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler
18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler
18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler
18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler
18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler
Specifications
Brand Name :
BMS
Model Number :
C80-300
Certification :
CE/SGS/ISO9001
Place of Origin :
Xiamen,China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
45days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
Dimension(L*W*H) :
11500*1500*1600
Condition :
New
Coil ID range :
470mm±30mm
Shaft :
45#
Rolling thinckness :
1.5-3.5mm
Roller material :
Gcr15 Steel, heat treatment
Decoiler :
Manual/ Hydraulic
Weight :
about 12T
Description

18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler

Configurations

Manual Uncoiler ,Main Body Of Roll Forming Machine, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.
Control System PLC(imported Brand)
Main Frame 400mm H-Beam
Main Power 18.5 kw
Power Supply 3-Phase,380V,50Hz
Forming Speed 18-20m/min
Hydraulic Pressure 0-16MPa
Feeding Thickness 1.5-3.5mm
Roller Station 18stations
Shaft Diameter 95mm
Backboard Thickness 18mm
Cutter Standard Cr12
Roller Standard GCr15
Hydraulic motor 7.5KW

Main features of automatic C purlin roll forming machine


The advantages of single size C purlin roll forming machine are as follows:
1. Produce different purlin size without changing rollers or spacers
2.No need changing cutter for diferent size;
3.Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range), help to save material
5. Optional punch hole at any position of purlin web side and flange side

3. Specification of Components

No Technical Specification & Remark Others
1 Manual decoiler Brand: BMS Original: China
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton
With 3 tons hydraulic decoiler for option		 18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler
2

pre-cutter

 Brand: BMS Original: China
No need to change cutter for different size.
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
3

Punching system

 with 3 cylinder(one cylinder for single hole and two cylinders fro dual hole) 18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler
4 Main Roll Forming Machine Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options. 		18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler
5 PLC Control Cabinet PLC Control System Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON
 18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler
6

C purlin exit rack

 Brand: BMS Original: China
Un-powered,one unit		 18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler

Profile Drawing

18.5KW C Purlin Cold Automatic Roll Forming Machine With Manual Decoiler

Other detailes of C purlin roll forming machine

Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English

Motor driving,Gear chain transmission, 18 rollers to form and 7 rollers for straightening and levelling

Frequency speed control.Forming speed approx.20m/min

After-sale service of c purlin roll forming machine
1. The warranty of c purlin roll forming machine is two years after the client receives the machine.
Within the two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
