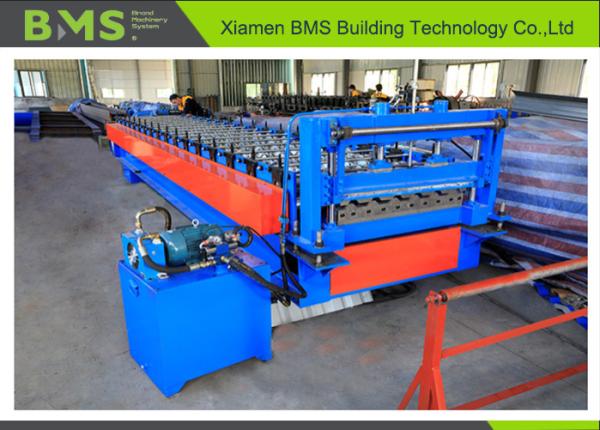

20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE SGS Approved
20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE SGS Approved
20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE SGS Approved
20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE SGS Approved
20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE SGS Approved
20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE SGS Approved
20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE SGS Approved
20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE SGS Approved
Specifications
Brand Name :
BMS
Model Number :
YX30-150-750
Certification :
CE/SGS/ISO9001
Place of Origin :
Xiamen,China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
45days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
Key Selling Points: Long Service Life :
Long Service Life
Thickness :
0.3-0.8mm
Shaft :
75mm
Cutter material :
Cr12Mov, Heat treatment
Hydraulic motor :
2.2KW
Hydraulic pressure range :
0-16Mpa
Cutter frame :
high quality 20mm steel plate by welding
Features :
Stable and durable
Description

20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE approved(by SGS)

Technical parameters

No
1 Width of the plate 1250mm, customized
2 Power 7.5+2.2kw
3 Voltage 380V 50Hz 3phases
4 material thickness 0.3-0.8mm
5 working speed 18-20m/min
6 Touch screenbrand German Schneider Electric/Taiwan WEINVIEW
7 Inverter brand Finland VOCAN/Taiwan DELTAALPHA
8 Encoder brand Japan Koyo/OMRON

Main features of YX30-150-750 roof panel machine

The advantages of roof panel machine are as follows

1. Able to produce two different profiles

2. Save space, more convenient

3. Easy operation, low maintenance cost

4 Stable and durable

5. More efficient and accurate execution of production orders;
6. High equipment reliability;
7. Little waste of materials and energy;

Profile Drawing

20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE SGS Approved

About raw material and product for YX30-150-750 roof panel forming machine

Material&product Feeding width according to profile
Effective width according to profile
Raw material PPGI
Yield strength 245-550 MPA

Detailed Images of YX30-150-750 roof panel forming machine

Machine parts

1) YX30-150-750 roof panel machine rollers

Brand: BMs Original: China

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment with black treatment or Hard-Chrome Coating for options.

With feeding material guide, body framemade from 400# H type steel by welding

2) YX30-150-750 roof panel machine post cutter

20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE SGS Approved

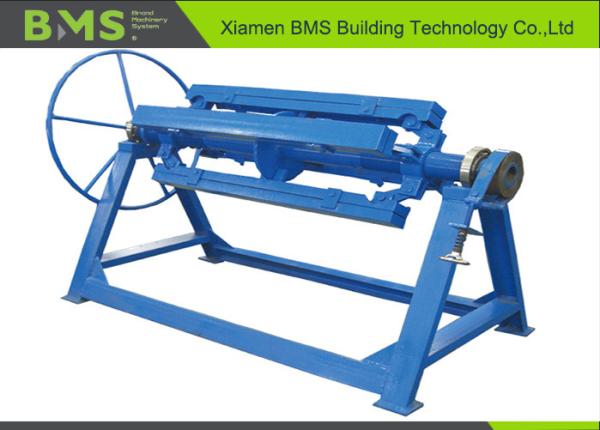

3) YX30-150-750 roof panel machine decoiler

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 1250mm, coil ID range 470mm+30mm Capacity: Max 8 Ton

With 6 tons hydraulic decoiler for option
20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE SGS Approved
20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE SGS Approved
4) YX30-150-750 roof panel machine exit rack
Un-powered, one unit
20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE SGS Approved
Other detailes of YX30-150-750 roof panel machine
Motor driving, Gear chain transmission, 20 steps to form
Main motor7. 5KW, Frequency speed control Forming speed approx. 12-15m/min
Cut-to-lengthtolerance≤±2mm Control Voltage 24V
Users manualin English
After-sale service of roof panel machine
The warranty of YX30-150-750 roof panel machine is one year after the client receives the machine within the one year, we will courier the replacement parts to the client free of charge.
2.we offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients factories with extra cost
Terms of trade
1. Minimum order quantity(MoQ): 1 piece
2. Delivery time: about 30 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
20 Steps YX30-150-750 Roof Panel Roll Forming Machine CE SGS Approved
