Specifications
Brand Name :
BMS
Certification :
CE/SGS/ISO9001
Place of Origin :
Xiamen,China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
45days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
Condition :
New
cutter :
Cr12
Color :
Client's Request
Name :
Purlin Roll Forming Machine
Drive :
by gear
Power :
30KW
Material of blades :
Cr12 quenched
Production capacity :
40m/min
Description

30KW High Speed C purlin Roll Forming Machine WIth European Design

No. Item Parameter
1 Material Type PPGI & PPGL
Width 500mm
Thickness 1.5-3.0mm
Yield stress 350Mpa to 550Mpa
2 Manual decoiler Type Un-powered
Max. feeding width 500mm
Coil ID range

470mm±30mm
Max. Capacity 3 T
3 Machine Shaft No.45 steel
Roller GCR15 Steel Chrome plated
Forming Stand About 12 groups
Forming Speed 30m/min
Transmission style Gear chain drive
Main machine structure Guide column or wallboard
4 Power Requirement Type 380AC/50HZ
Main motor 30Kw
Hydraulic

7.5 Kw

Main features of high speed C purlin roll forming machine

The advantages of high speed C purlin machine are as follows:

1. The speed can reach 40 meters per minute

2. Stable

3. Easy operation, low maintenance cost4.Beautiful

5. Customorized for any size you want

Machine Parts

1) High speed C purlin machine operation panel

Brand: BMSOriginal: China

30KW High Speed C Purlin Roll Forming Machine WIth European Design

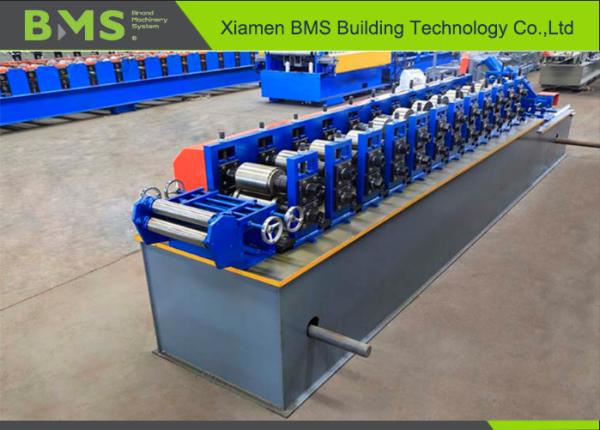

2) c purlin machine rollers

Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.with black treatment or Hard-Chrome Coating for options.

with feeding material guide, body framemade from 400# H type steel by welding

30KW High Speed C Purlin Roll Forming Machine WIth European Design

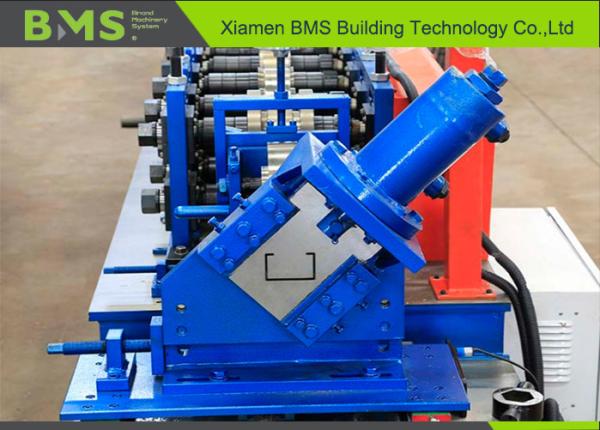

3) C purlin machine post cutter

made by high quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 30mm steel plate by welding

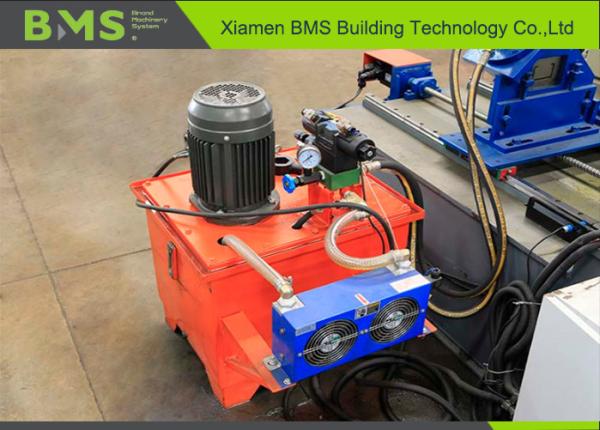

Hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa

4) C purlin machine decoiler

Manual Decoiler: one set

Un-powered,manually control steel coil inner bore shrinkage and stop

Max. feeding width: 500mm, coil ID range 470mm士30mm

Capacity : Max.3Ton

30KW High Speed C Purlin Roll Forming Machine WIth European Design

With 3 tons hydraulic decoiler for option

30KW High Speed C Purlin Roll Forming Machine WIth European Design

6) C purlin exit rack

Un-powered,one unit

30KW High Speed C Purlin Roll Forming Machine WIth European Design

Other details
After-sale
service
1.The warranty of c purlin roll forming machine is one year after the client receives the machine.
Within the one year, we will courier the replace.
2.We offer technical support for the entire life of our machines.
3.All components of c channel Roll Forming machine fixed by steel wire.

PLC Control System

Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTAALPHA,

Encoder brand-Japan Koyo/OMRON

Just adjust required WEB,HEIGHT and LIP by hand wheel with the help of position clock (with digit display for easy operation) on it, and then input the required production data on the touch screen. lt takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters like traditional old style machine (which takes over 45 minutes for each production size changing).

Combined with: PLC, Inverter,TouchScreen, Encoder, etc

Cut-to-lengthtolerances+2 mm

Control Voltage 24V

User's manualin English
