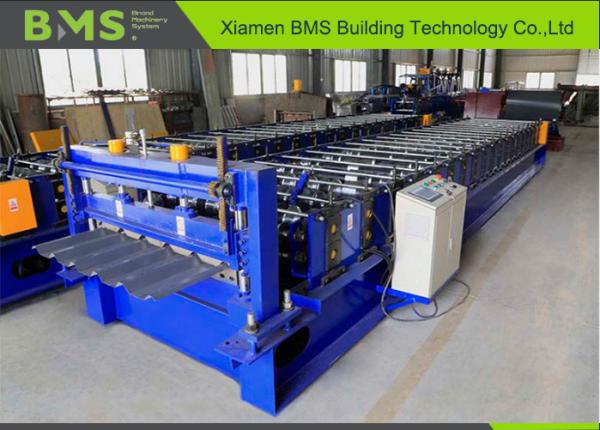

Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000
Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000
Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000
Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000
Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000
Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000
Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000
Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000
Specifications
Brand Name :
BMS
Model Number :
YX35-200-1000
Certification :
CE/SGS/ISO9001
Place of Origin :
Xiamen,China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
45days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
Power :
7.5KW
Thickness :
0.3-0.8mm
Decoiler :
Manual/Hydraulic for options
Housing :
H400 Beam
Forming station :
18 steps
Cutter material :
Cr.12
Voltage :
AC 3-380V/415V/440V
Condition :
New
Description

Automatic 18 Steps Roof Panel Roll Forming Machine For YX35-200-1000

1. Product Details

Material&product Feeding width 1250mm
Effective width 1000mm
Raw material PPGI
Thickness 0.3-0.8mm
Yield strength 245-550 MPA
Main Forming machine Forming steps 18 steps
Shaft diameter 75mm
Machine frame steel plate welded
roller material 45#steel
shaft material 45# steel with quenching and tempering
Work speed 18-20m/min
Transport By chains
Power of main machine 7.5kw
Voltage 380V-50HZ-3P(as required)
Machine weight About 8T

Usage: In order to keep the product shape and precision, adopts welded sheet structure,

2. Profile Drawing

Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000

3. .Main features of YX35-200-1000 roof panel machine

The advantages of roof panel machine are as follows:

1.Able to produce two different profiles.

2.Save space,more convenient.

3.Easy operation, low maintenance cost4.Stable and durable

4. Detailed Images of YX35-200-1000 roof panel forming machine

Machine parts

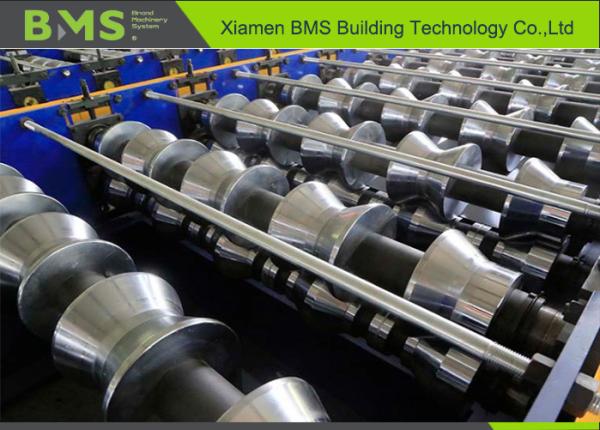

1)YX35-200-1000 roof panel machinerollers
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment. With black treatment or Hard-Chrome Coating for options.
2)YX35-200-1000 roof panel machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
Hydraulic motor: 2. 2KW, Hydraulic pressure range: 0-16Mpa
Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000
3) YX35-200-1000 roof panel machine decoiler
Un-powered, manually control steel coil inner bore shrinkage and stop
Max feeding width: 1250mm, coil ID range 470mm+30mm
Capacity: Max 8 Ton
Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000

With 6 tons hydraulic decoiler for option
Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000
Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000
5) YX35-200-1000 roof panel machine exit rack
Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000
5. PLC Control System
Touch screenbrand: German Schneider Electric/Taiwan WEINVIEW
Inverter brand. Finland VOCAN/Taiwan DELTAALPHA,
Encoder brand Japan Koyo/OMRON
Combined with: PLC. Inverter. Touch Screen. Encoder etc
Cut-to-lengthtolerance≤±2mm
Control Voltage 24V
Users manualin English
6. After-sale service of roof panel machine
1. The warranty of YX35-200-1000 roof panel machine e year after the client receives the machine Within the one year, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machin
3. We can send our technicians to install and train the workers in the clients factories with extra cost
7. Terms of trade
1. Minimum order quantity( MoQ): 1 piece
2. Delivery time: about 30 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/ or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
