Hydraulic Automatic Steel YX62-490 Klip Lok Roof Panel Roll Forming Machine
Hydraulic Automatic Steel YX62-490 Klip Lok Roof Panel Roll Forming Machine
Hydraulic Automatic Steel YX62-490 Klip Lok Roof Panel Roll Forming Machine
Hydraulic Automatic Steel YX62-490 Klip Lok Roof Panel Roll Forming Machine
Hydraulic Automatic Steel YX62-490 Klip Lok Roof Panel Roll Forming Machine
Hydraulic Automatic Steel YX62-490 Klip Lok Roof Panel Roll Forming Machine
Hydraulic Automatic Steel YX62-490 Klip Lok Roof Panel Roll Forming Machine
Hydraulic Automatic Steel YX62-490 Klip Lok Roof Panel Roll Forming Machine
Specifications
Brand Name :
BMS
Model Number :
YX62-490 Profile
Certification :
CE/SGS/ISO9001
Place of Origin :
Xiamen,China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
45days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
Power :
7.5KW
Side wall thickness :
18mm
Forming station :
20 steps
Cutter material :
Cr12
Housing :
H400 Beam by welding
Shaft :
75mm
Condition :
New
Voltage :
AC 3-380V/415V/440V
Description

Hydraulic Automatic Steel YX62-490 Klip-Lok Roof Panel Roll Forming Machine WIth European Design

Product Description

Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client's profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.

The complete machine includes the uncoiler, main forming machine, PLC controlling system and exit rack.

Name
Units
Quantity
Decoiler
Set
1
Main machine
Pre-cutting device
Set
1
Feeding device
Set
1
Roll forming system
Set
1
Hydraulic system
Set
1
PLC control system
Set
1
Exit rack
Set
1

Profile Drawing

Hydraulic Automatic Steel YX62-490 Klip Lok Roof Panel Roll Forming Machine

Main features of YX62-490 klip-lok roof panel machine

The advantages of roof panel machine are as follows

1. Able to produce two different profiles

2. Save space, more convenient

3.Easy operation, low maintenance cost

4 Stable and durable

Product Parameters:

Item Specification
Raw Material Type galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC)
Thickness(mm) 0.3-0.8
Yield strength(mpa) 245-550
Roller material 45# steel , coated with Chrome
Shaft for rollers Solid shaft with 75mm,precision machined
Forming speed(m/min) About 18-20
Output speed(m/min) About 12-15
Speed adjusting mode Frequency speed control
Roller drive Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Japan Koyo/OMRON
Control mode PLC
Operating mode Button + Touch screen
Main motor power(kw) 7.5KW
Total power(kw) 9.7KW
Warranty 2 years

Detailed Images

Hydraulic Automatic Steel YX62-490 Klip Lok Roof Panel Roll Forming Machine

DECOILER

(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ470 – Φ500 mm
(3) Max. Loading Capacity: 8000 kgs

ROLL FORMING MACHINE

(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
(3) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

Hydraulic Automatic Steel YX62-490 Klip Lok Roof Panel Roll Forming Machine
Hydraulic Automatic Steel YX62-490 Klip Lok Roof Panel Roll Forming Machine

POST CUTTER

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC58 – 62°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off

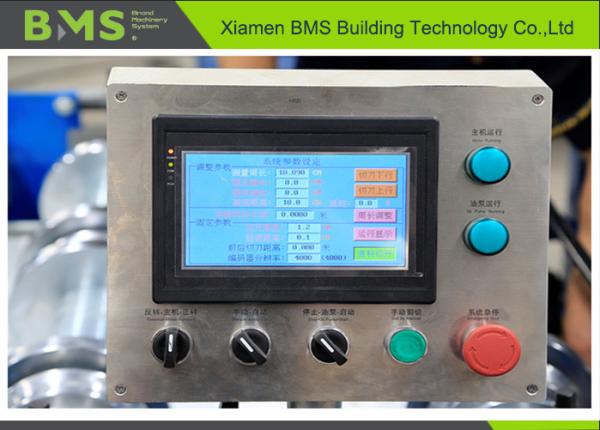

PLC CONTROL CABINET

(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese

Hydraulic Automatic Steel YX62-490 Klip Lok Roof Panel Roll Forming Machine

Other detailes of yX62-490 klip-lok roof panel machine

Cutter frame made from high quality 20mm steel plate by welding

Hydraulic pressure range: 0-16Mpa

PLC Control System

Touch screenbrand: German Schneider Electric/Taiwan WEINVIEW

Inverter brand Finland VOCAN/Taiwan DELTA/ALPHA,

Encoder brand: Japan Koyo/OMRON) Combined with Plc. Inverter. Touch Screen. encoder etc Cut-to-l

Control Voltage 24V

Users manualin English

Other detailes of yX62-490 klip-lok roof panel machine

Other detailes of yX62-490 klip-lok roof panel machine

PLC Control System

Touch screenbrand: German Schneider Electric/Taiwan WEINVIEW Inverter brand Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON

Combined with Plc. Inverter. Touch Screen. encoder etc

Cut-to-lengthtolerance≤±2mm

Control Voltage 24V

Users manual in English
