Specifications
Brand Name :
BMS
Model Number :
YX24-210-840-1050
Certification :
CE
Place of Origin :
Xiamen, China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
45days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
Main Motor :
11KW
Forming station :
20-step
Forming speed :
20-25m/min
Rollers :
Cr12 steel
Weight :
about 8T
Steel Rod :
Q235B
Shafts Diameter :
ф80/95mm,precision machined.
Hydraulic motor :
4KW
Description

20 Steps High Productivity Stainless Steel Roofing Panel Roll Forming Machine For USA

1. Specification of the material

1 Applicable Material Stainless Steel
2 Effective Width 1000/1219mm
3 Thickness 0.3-0.6mm
4 With Yield Strength 235-345Mpa



2. Machine Detailed Parameters

1 Roll Forming Machine Stainless Steel Roofing Panel Roll Forming Machine For USA
2 Machine structure with Hydraulic cutting structure
3 Total power Motor power-11kW, Frequency speed control.
Hydraulic power-4KW
4 Roller stations 20steps
5 Productivity 20-25m/min
6 Drive system By gear box
7 Diameter of shaft ф80/95mm,precision machined.
8 Voltage 380V 50Hz 3phases (Customized)
9 Color Of The Machine Bule and orange
10 Deliver time 45 workdays
11 Terms Of Payment 30%T/T 70% pay before shipment, L/C


3. Profile drawing

20 Steps Stainless Steel Roofing Panel Roll Forming Machine High Productivity For USA

4.Work Flow


Decoiler→Feeding Guide Device→Hydraulic Pre-Cutting Device→Roll Forming System→Hydraulic Post Cutting Device→Exit Rack

20 Steps Stainless Steel Roofing Panel Roll Forming Machine High Productivity For USA

5.Machine Components

1) 7T-1250 Hydraulic Decoiler
Hydraulic Control Steel Coil Inner Bore Shrinkage And Stop
Max. Feeding Width:1250mm,Coil ID Range:508+/-30mm
Max Capacity:7 T,Motor:3KW,Oil Pump Motor:2.2KW,Frequency Speed Control
Add Automatic Feeding Power And Self-Stop Device

20 Steps Stainless Steel Roofing Panel Roll Forming Machine High Productivity For USA

2) Hydraulic Pre-Cutting Device

20 Steps Stainless Steel Roofing Panel Roll Forming Machine High Productivity For USA

3) Main Machine
With feeding material guide, body frame made from H450 type steel by welding.
Side wall thickness: Q235 t18mm.

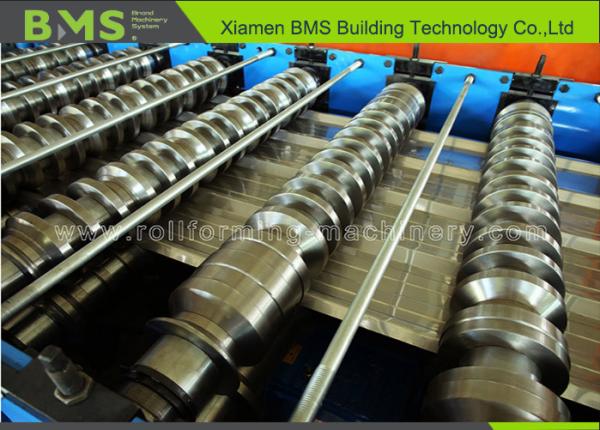

Rollers manufactured from Cr12 steel,CNC lathes,Heat Treatment,hard Chrome Coated.
with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust).
Gear/Sprocket driving

20 Steps Stainless Steel Roofing Panel Roll Forming Machine High Productivity For USA

Safety Shield

20 Steps Stainless Steel Roofing Panel Roll Forming Machine High Productivity For USA

4) Post Hydraulic Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking.
Hydraulic motor: 4KW ;Cutting pressure: 0-16Mpa;Cutting time:2s.
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree.
The cutting power is provided by the main engine hydraulic station.

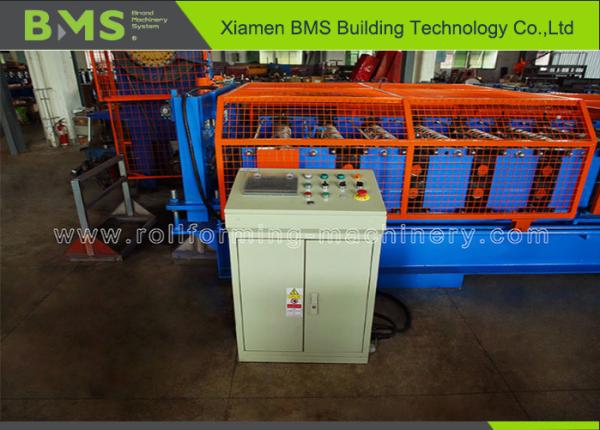

5) PLC Control System
Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

6)Exit Rack
Un-powered, Three units,with rollers on it for easy movement.

20 Steps Stainless Steel Roofing Panel Roll Forming Machine High Productivity For USA

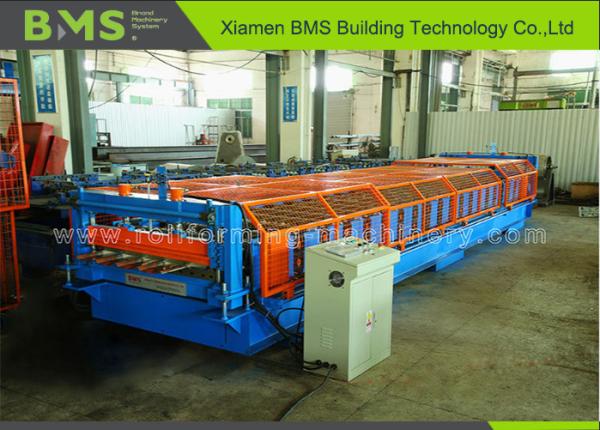

6. Product Show

20 Steps Stainless Steel Roofing Panel Roll Forming Machine High Productivity For USA

7. Advantages

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

4. Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore, Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
