2. The advantages of roof panel machine are as follows:

1. Able to produce two different profiles.

2. Save space,more convenient.

3. Easy operation, low maintenance cost

4. Stable and durable

3. Profile Drawing

4. Main Parts

1) Decoiler

Manual Decoiler: one set

Un-powered,manually control steel coil inner bore shrinkage and stop

Max. feeding width: 1250mm, coil ID range 470mm±30mm

Capacity: Max. 8 Ton

With 6 tons hydraulic decoiler for option

2) pre-cutter

3) Rollers

Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding

4) Post Cutter

Cutter frame made from high quality 20mm steel plate by welding
Hydraulic motor:2.2KW, Hydraulic pressure range: 0-16Mpa

5) Touching screen and control panel

Easy to operate

6) Control cabine

PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

7) Exit rack(Un-powered,one unit)

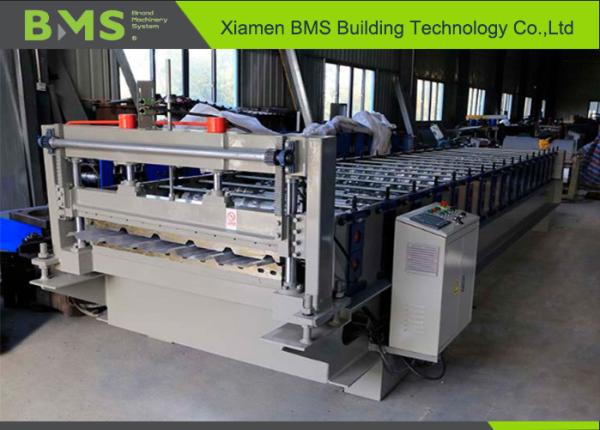

5. Other detailes of YX25-205-1025 roof panel machine

Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English

For the more detail click here to see the video:
http://www.rollforming-machinery.com/Quick-change-Type-C-Purlin-Roll-Forming-Machine_n26

6. After-sale service of roof panel machine

1. The warranty of YX25-205-1025 roof panel machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

7. Terms of trade

1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 30 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore, Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
