8.4*1.45*1.2 M Size Cold Joint Hidden Roof Panel Roll Forming Machine With PLC Control System

1. Product Details

2. Main features of YX28-820 klip-lok roof panel machine

The advantages of roof panel machine are as follows:

1. Able to produce two different profiles.

2. Save space,more convenient.

3. Easy operation, low maintenance cost

4. Stable and durable

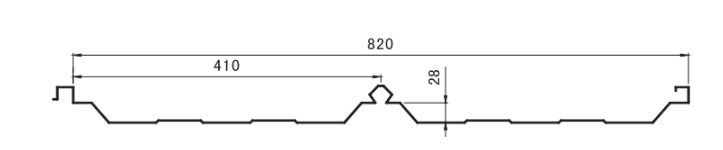

3. Profile Drawing

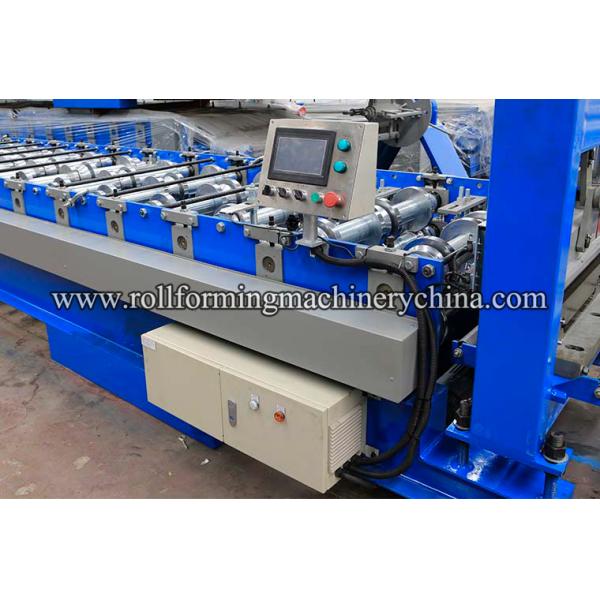

4. Detailed Images of YX28-820 klip-lok roof panel forming machine

Machine Parts

1) YX28-820 klip-lok roof panel machine electronic control cabinet

Brand: BMS Original: China

2) YX28-820 klip-lok roof panel machine rollers

Brand: BMS Original: China

Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.

with black treatment or Hard-Chrome Coating for options.

With feeding material guide, body framemade from 400# H type steel by welding

3) YX28-820 klip-lok roof panel machine post cutter

Brand: BMS Original: China

Made by high quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 20mm steel plate by welding
Hydraulic motor:2.2KW, Hydraulic pressure range: 0-16Mpa

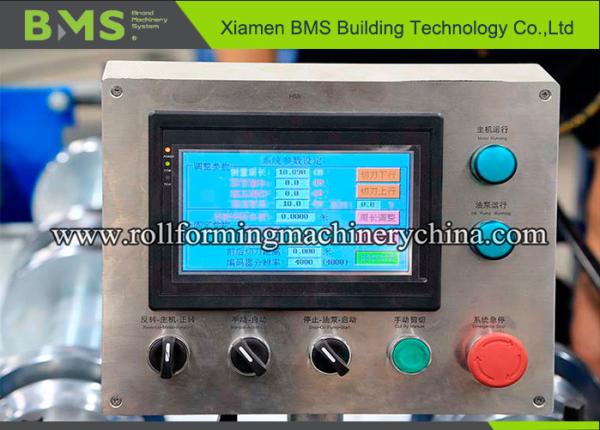

4) YX28-820 klip-lok roof panel machine touching screen

Brand: BMS Original: China

Easy to operate

5) YX28-820 klip-lok roof panel machine decoiler

Brand: BMS Original: China

Manual Decoiler: one set

Un-powered,manually control steel coil inner bore shrinkage and stop

Max. feeding width: 1250mm, coil ID range 470mm±30mm

Capacity: Max. 8 Ton

With 6 tons hydraulic decoiler for option

6) YX28-820 klip-lok roof panel machine exit rack

Brand: BMS Original: China

Un-powered,three units

5. Other detailes of YX28-820 klip-lok roof panel machine

PLC Control System

Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,

Encoder brand:Japan Koyo/OMRON

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English

For the more detail click here to see the video:

http://www.rollforming-machinery.com/Quick-change-Type-C-Purlin-Roll-Forming-Machine_n26

6. After-sale service of klip-lok roof panel machine

1. The warranty of YX28-820 klip-lok roof panel machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

7. Terms of trade

1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore, Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
