Specifications
Brand Name :
BMS
Model Number :
YX35-273-820
Certification :
CE/SGS/ISO9001
Place of Origin :
Xiamen,China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
45days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
Form Speed :
18-20m/min
Weight :
9T
Body frame :
H350 beam
Hydraulic motor :
5.5KW
Hydraulic pressure range :
0-16Mpa
Shafts :
45#
Shaft diamete :
φ75mm,precision machined
Thickness :
0.3-0.8mm
Description

PPGI High Quality Metal Roof Roll Forming Machine With 14 Stations

1. Technical Parameters

Material galvanized sheet(GI),cold roll steel(CRC).
Thickness From 0.3 mm to 0.8mm.
Main Motor Power 5.5 kw.
Hydraulic Power 5.5 kw.
Feeding Width 1200mm.
Total Speed 18-20m/min
Cutting Tolerance ≤±2 mm
Manual Uncoiler capacity is 5 tons.
Coil Inner Diameter 508mm±30mm
Voltage 380V, 3 phase, 50 HZ, or customized.
Forming Station 14 stations.
Type of Cutting roll-formed and length-set profile cutting.


2. Material of Main Equipment:

Roller Material manufactured from high quality 45# steel, CNC lathes, Heat Treatment. with black treatment or Hard-Chrome Coating for options.
Active Shaft Material manufactured from 45#, Main shaft diameter=φ75mm, precision machined
Electric Elements 5.5 kw.
Cutter Blades 5.5 kw.

3. Profile Drawing

0.3mm-0.8mm Thickness PPGI Metal Roof Roll Forming Machine With 14 Stations

3. Detailed Images of YX35-820 roof panel forming machine

Machine Parts
1) YX35-820 roof panel machine pre-cutter

Brand: BMS Original: China
With feeding material guide.

0.3mm-0.8mm Thickness PPGI Metal Roof Roll Forming Machine With 14 Stations

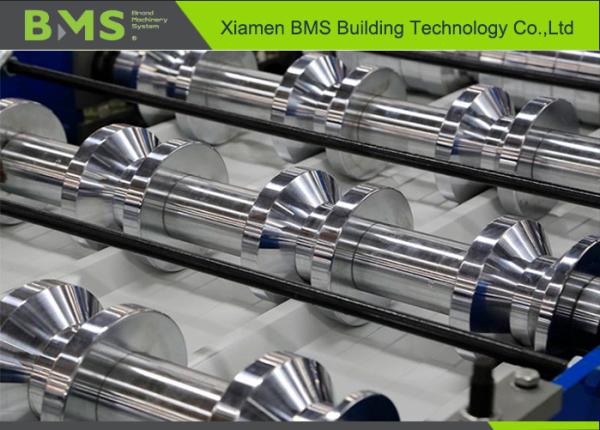

2) YX35-820 roof panel machine rollers

0.3mm-0.8mm Thickness PPGI Metal Roof Roll Forming Machine With 14 Stations

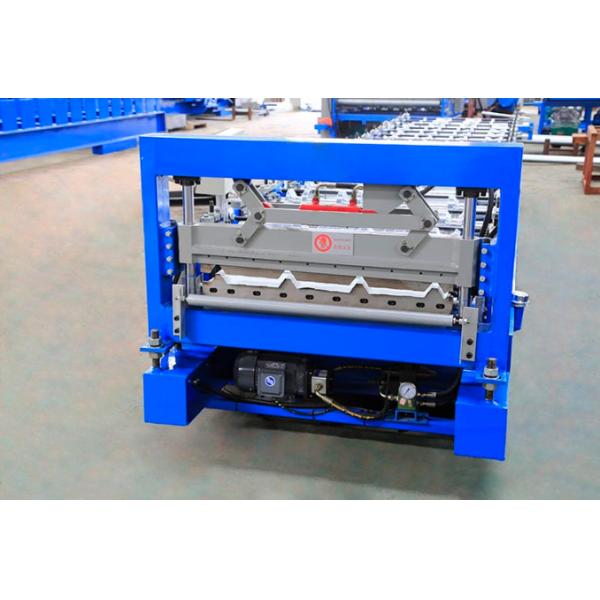

3) YX35-820 roof panel machine post cutter

Made by high quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 20mm steel plate by welding

hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa

0.3mm-0.8mm Thickness PPGI Metal Roof Roll Forming Machine With 14 Stations

4) YX35-820 roof panel machine touch screen

0.3mm-0.8mm Thickness PPGI Metal Roof Roll Forming Machine With 14 Stations

5) YX35-820 roof panel machine control cabinet

0.3mm-0.8mm Thickness PPGI Metal Roof Roll Forming Machine With 14 Stations

6) YX35-820 roof panel machine decoiler

ManualDecoiler: one set

Un-powered,manually control steel coil inner bore shrinkage and stop

Max. feeding width: 1200mm, coil ID range 508mm±30mm
Capacity: 5-9 Ton

0.3mm-0.8mm Thickness PPGI Metal Roof Roll Forming Machine With 14 Stations

With 6 tons hydraulic decoiler for option

0.3mm-0.8mm Thickness PPGI Metal Roof Roll Forming Machine With 14 Stations

0.3mm-0.8mm Thickness PPGI Metal Roof Roll Forming Machine With 14 Stations

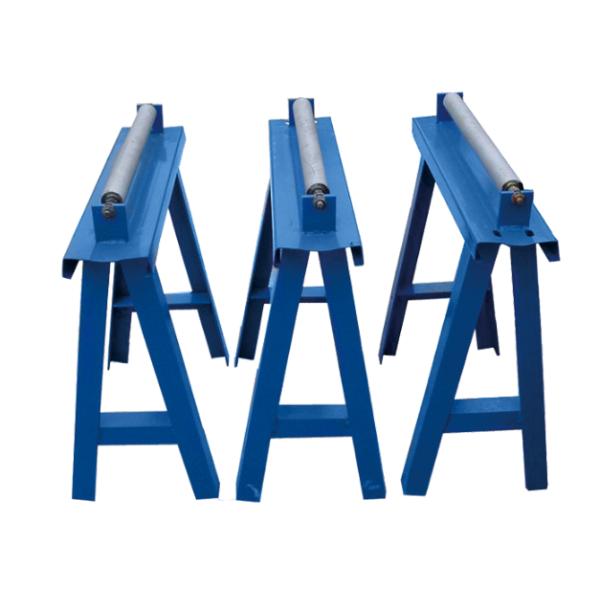

7) YX35-820 roof panel machine exit rack

Un-powered,three units

0.3mm-0.8mm Thickness PPGI Metal Roof Roll Forming Machine With 14 Stations

4. Other detailes of YX35-820 roof panel roll forming machine

Motor driving,Gear chain transmission, 14 steps to form.
Main motor=5.5KW , Frequency speed control. Forming speed approx.12-15m/min

PLC Control System

Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,

Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English

5. The advantages of roof panel machine are as follows:

1.Low cost, light weight but high strength, short building period, and re-cycle use

2.Save material ,no waste.

3.Easy operation,low maintenance cost

4.Able to deal with stainless material

6. After-sale service of roof panel roll forming machine

1. The warranty of purlin roof panel roll forming machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
