PLC Control 20m/min H450 Housing Floor Deck Forming Machine
PLC Control 20m/min H450 Housing Floor Deck Forming Machine
PLC Control 20m/min H450 Housing Floor Deck Forming Machine
PLC Control 20m/min H450 Housing Floor Deck Forming Machine
PLC Control 20m/min H450 Housing Floor Deck Forming Machine
PLC Control 20m/min H450 Housing Floor Deck Forming Machine
Specifications
Brand Name :
BMS
Model Number :
YX50-333-1000
Certification :
CE
MOQ :
1 Set
Price :
USD 34990/Set
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
50days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
After-sales Service Provided :
Engineers available to service machinery overseas
Thickness :
0.8-1.5mm
Decoiler :
Manual/Hydraulic decoiler for option
Shaft material :
45#
Forming station :
24 steps
Forming Speed :
20m/min
Cutter :
Cr12MoV
Housing :
H450
Shaft diameter :
φ90mm
Roller material :
GCr15
Description

2 Years Warranty Housing H450 Floor Deck Roll Forming Machine

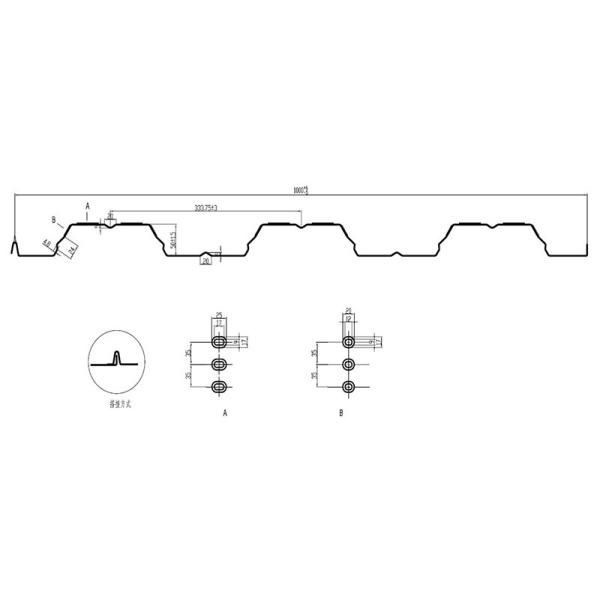

Profile Drawing

PLC Control 20m/min H450 Housing Floor Deck Forming Machine

Parameter

Item Parameters
1 Type YX50-333-1000
2 Thickness 0.8-1.5mm
3 Forming Speed 20m/min
4 Forming station 24 steps
5 Main motor 15KW
6 Hydraulic Power 5.5KW
7 Roller GCr15
8 Housing H450

Main features

1)Manual Decoiler: one set
Un-Powered,Manually Control Steel Coil lnner Bore Shrinkage Andstop
Max Feeding Width:1200mm,Coil ID Range:508mm±30mmCapacity:Max.5 Ton

PLC Control 20m/min H450 Housing Floor Deck Forming Machine

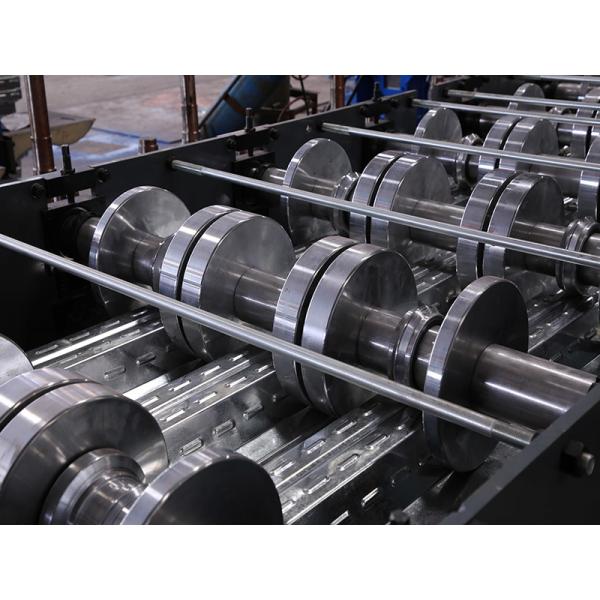

2)Main Machine
Body Frame Made From H450 Type Steel By WeldingSide Wall Thickness:Q235 t18mm
Rollers Manufactured From 45# Steel,CNC Lathes,Heat
Treatment,Hard Chrome Coated,with thickness 0.04mm,SurfaceWith Mirror Treatment(For Longer Life And Anti-Rust)
The Material For Embossing Roller:GCr15 Steel(=EN31 Steel),HeatTreatment,HRC 58-62
Shafts Diameter=cp90mm,High Frequency ProcessingGear/Sprocket Driving,About 24-step To Form
Main Motor(Polaroid brand)=15KW,Frequency Speed ControlReal Forming Speed:20m/min

PLC Control 20m/min H450 Housing Floor Deck Forming Machine

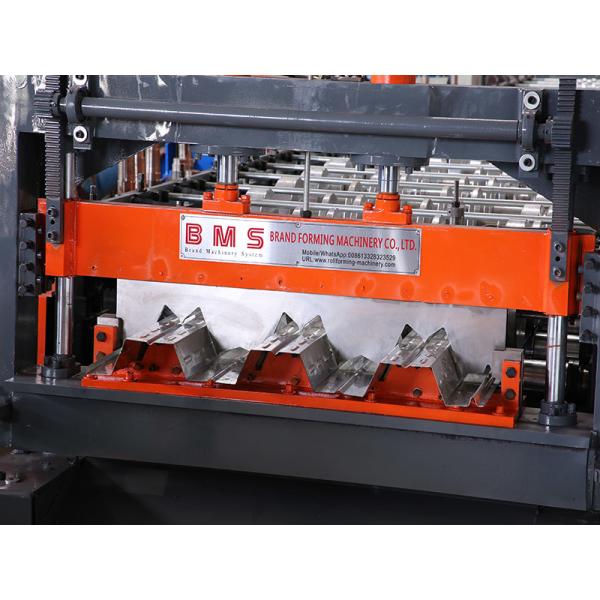

4) Post Hydraulic cutting Device
post To Cut, Stop To Cutting,Two Pieces Type Of cutting BladeDesign,No Blanking
Hydraulic Motor:5.5KW;Cutting Pressure:O-16Mpa
cutting Tool Material:Cr12MoV(= SKD11 With At Least One MillionTimes Of Cutting Life),Heat Treatment To HRC58-62 Degree
The Cutting Power ls Provided By The Main Engine Hydraulic Station

PLC Control 20m/min H450 Housing Floor Deck Forming Machine

PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On TheTouch Screen
lt Can Finish The Production Automatically
Combined With: PLC, Inverter,Touch Screen,Encoder, etc

PLC Control 20m/min H450 Housing Floor Deck Forming Machine

Exit Rack

PLC Control 20m/min H450 Housing Floor Deck Forming Machine

Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
PLC Control 20m/min H450 Housing Floor Deck Forming Machine
After-sale service
1. The warranty is two years after the client receives the machine Within two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machine .
3. We can send our technicians to install and train the workers in the clients factories with extra cost.
Terms of trade

1. Minimum order quantity (MoQ): 1

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
