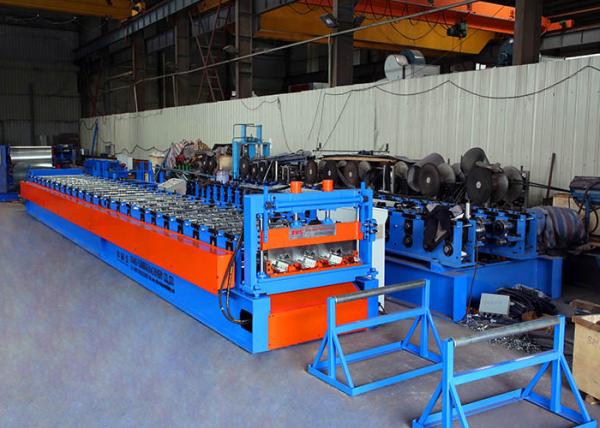

H450 Housing Thickness 2.0mm Floor Tiles Making Machine
H450 Housing Thickness 2.0mm Floor Tiles Making Machine
H450 Housing Thickness 2.0mm Floor Tiles Making Machine
H450 Housing Thickness 2.0mm Floor Tiles Making Machine
Specifications
Brand Name :
BMS
Model Number :
YX72-305-915
Certification :
CE
MOQ :
1 Set
Price :
USD44890/Set
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
50days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
After-sales Service Provided :
Engineers available to service machinery overseas
Thickness :
1.0-2.0mm
Decoiler :
Manual/Hydraulic decoiler for option
Shaft material :
45#
Forming station :
24 steps
Forming Speed :
20-25m/min
Cutter :
Cr12MoV
Housing :
H450
Shaft diameter :
φ90/95mm
Roller material :
GCr15
Description

Thickness 1 . 0 - 2 . 0mm Housing H450 Floor Tiles Making Machine

Profile Drawing

H450 Housing Thickness 2.0mm Floor Tiles Making Machine

Parameter

Item Parameters
1 Type YX72-305-915
2 Thickness 1.0-2.0mm
3 Forming Speed 20-25m/min
4 Forming station 24steps
5 Main motor 18.5*2KW
6 Hydraulic Power 5.5KW
7 Roller GCr15
8 Housing H450

Decoiler

7T Hydraulic Decoiler: one set
Hydraulic Control Steel Coil lnner Bore Shrinkage And Stop
Max Feeding Width:1250mm,Inside Coil lD Range:508mm+30mmOutSide Coil ID:1600mm.Capacity:Max.7 Ton
Motor Power:3.0Kw,oil punch:2.2KW

H450 Housing Thickness 2.0mm Floor Tiles Making Machine

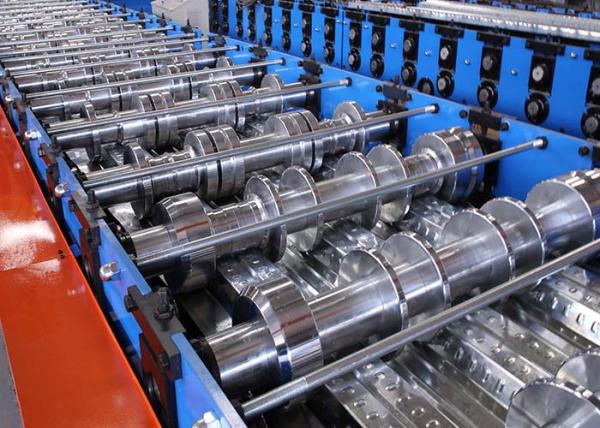

Main Machine

Body Frame Made From H450 Type Steel By WeldingSide Wall Thickness:Q235 t18mm
Rollers Manufactured From 45# steel,CNC Lathes,Heat
Treatment,Hard Chrome Coated,With Thickness 0.04mm,SurfaceWith Mirror Treatment(For Longer Life And Anti-Rust)
The Material For Embossing Roller:GCr15 Steel(=EN31 Steel),For longworking life, heat treatment,HRC58-62

Shafts Diameter=Φ90/95mm,precision machined
Gear/Sprocket driving, about 24-step to form
Servo motor=18.5×2KW , Frequency speed control
Real forming speed 20-25m/min

H450 Housing Thickness 2.0mm Floor Tiles Making Machine

Post To Cut,Stop To cutting,Two Pieces Type Of Cutting Blade Design,No Blanking Hydraulic Motor:5.5KW;Cutting ressure:0-16Mpa Cutting Tool Material:Cr12MoV(=SKD11 Steel) With At Least One Million Times Of Cutting Life),Heat Treatment To HRC58-62 Degree The Cutting Power ls Provided By The Main Engine Hydraulic Station

H450 Housing Thickness 2.0mm Floor Tiles Making Machine

PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On TheTouch Screen
lt Can Finish The Production Automatically
Combined With: PLC, Inverter,Touch Screen, Encoder, etc

H450 Housing Thickness 2.0mm Floor Tiles Making Machine

Exit Rack
Un-Powered,Three units,With Rollers On lt ForEasy Movement

H450 Housing Thickness 2.0mm Floor Tiles Making Machine

Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
H450 Housing Thickness 2.0mm Floor Tiles Making Machine
After-sale service
1. The warranty is two years after the client receives the machine Within two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machine .
3. We can send our technicians to install and train the workers in the clients factories with extra cost.
Terms of trade

1. Minimum order quantity (MoQ): 1

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
