Shaft 95mm Thickness 0.8 0.9mm Steel Deck Roll Forming Machine
Shaft 95mm Thickness 0.8 0.9mm Steel Deck Roll Forming Machine
Shaft 95mm Thickness 0.8 0.9mm Steel Deck Roll Forming Machine
Shaft 95mm Thickness 0.8 0.9mm Steel Deck Roll Forming Machine
Shaft 95mm Thickness 0.8 0.9mm Steel Deck Roll Forming Machine
Shaft 95mm Thickness 0.8 0.9mm Steel Deck Roll Forming Machine
Specifications
Brand Name :
BMS
Model Number :
YX45-982/YX50-955
Certification :
CE
MOQ :
1 Set
Price :
US $ 99980.0/Set
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
50days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
After-sales Service Provided :
Engineers available to service machinery overseas
Thickness :
0.8-1.5mm
Decoiler :
Manual/Hydraulic decoiler for option
Shaft material :
45#
Forming station :
up26-step&down27-step
Forming Speed :
18-25m/min
Cutter :
Cr12MoV
Housing :
H450
Shaft diameter :
φ80/95mm
Roller material :
GCr15
Description

Thickness 0 . 8 - 1 . 5 Shaft 95mm Steel Deck Roll Forming Machine

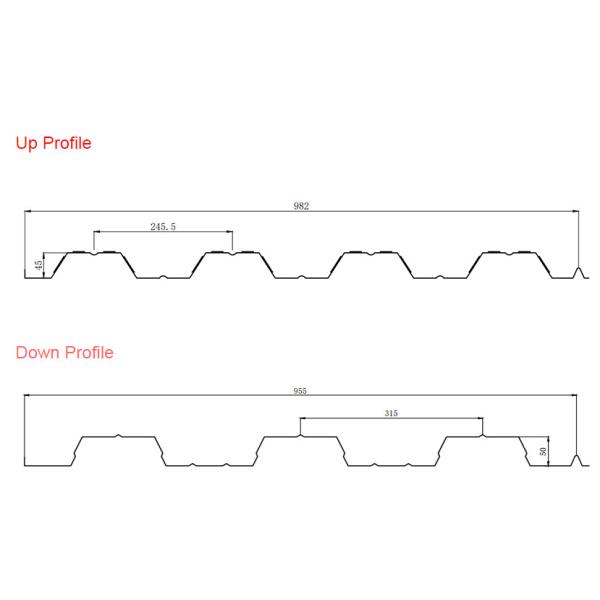

Profile Drawing

Shaft 95mm Thickness 0.8 0.9mm Steel Deck Roll Forming Machine

Parameter

Item Parameters
1 Type YX45-982/YX50-955
2 Thickness 0.8-1.5mm
3 Forming Speed 18-25m/min
4 Forming station up26-step,down27-step
5 Main motor 22*2 KW
6 Hydraulic Power 11KW
7 Roller GCr15
8 Housing H450

Effective Width: 982/955mm

Material Thickness:0.8-1.5mm
Applicable Material: GI
With Yield Strength:550Mpa
Effective Width Tolerance: +/-0.5mm
The Wave Spacing Tolerance:+/-0.5mm
The Wave Height Tolerance+/-0.5mm

Decoiler

5T Hydraulic Decoiler:one set
Hydraulic Control steel Coil lnner Bore Shrinkage And StopAuto Feeding Power And Self-Stop Device
Max Feeding Width:1220mm
lnside Coil ID Range:508mm+30mm,Outside Diameter:1600mmmotor:3Kw,Oil pump motor:2.2KW
Capacity:Max.5 Ton,With Coil Car

Shaft 95mm Thickness 0.8 0.9mm Steel Deck Roll Forming Machine

Main Machine

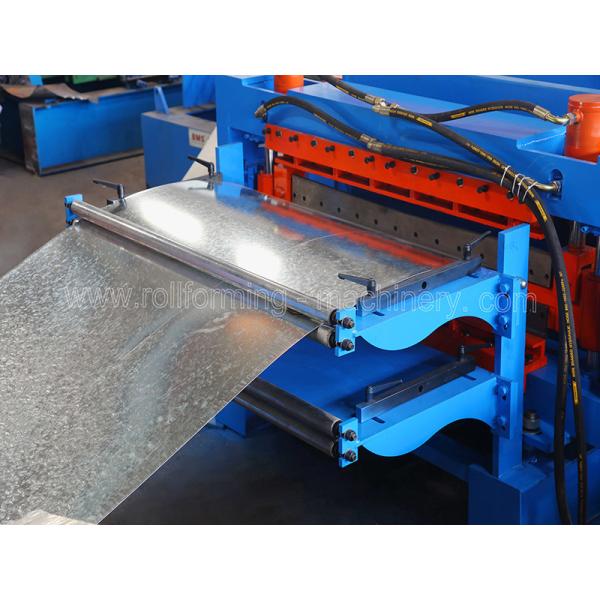

With Feeding Material Guide Device

Shaft 95mm Thickness 0.8 0.9mm Steel Deck Roll Forming Machine

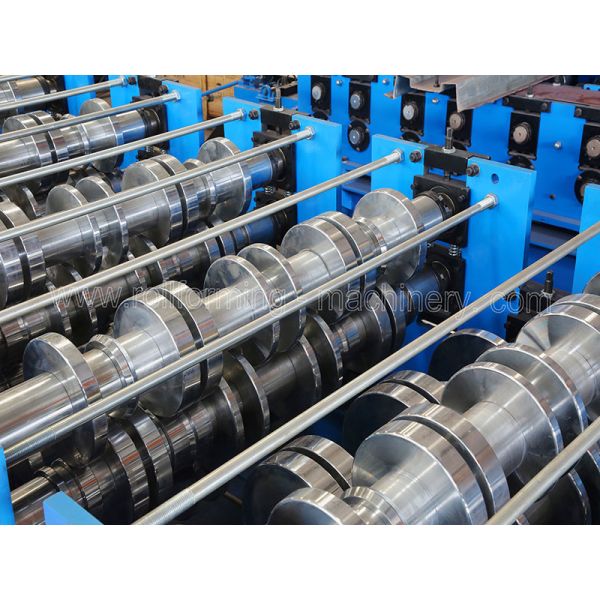

Rollers Manufactured From 45# Steel,Hard Chrome Coated

Body Frame Made From H450 type SteelSide Wall Thickness:Q235 t20mm

Embossing Rollers Manufactured From GCr15 Steel(=EN31 Steel)Heat Treatment,HRC 58-62 Degree

Shafts Diameter=dp80/95mm,High Frequency Processing

Gear/Sprocket Driving,Up 26-step & Down 27-step To FormMain Motor=22*2KW,Frequency Speed Control
Roll forming Speed:18-25m/min

Auto Double Layer Floor Decking Roll Forming Machine post cutter Made by high quality mold steel Cr12MoV(=SKD11,with at least one million times of cutting lives)Heat treatment to HRC 58-62 degree

Hydraulic motor: 11KW, Hydraulic pressure range: 0-16Mpa
The cutting power is provided by the main engine hydraulic station.

Shaft 95mm Thickness 0.8 0.9mm Steel Deck Roll Forming Machine

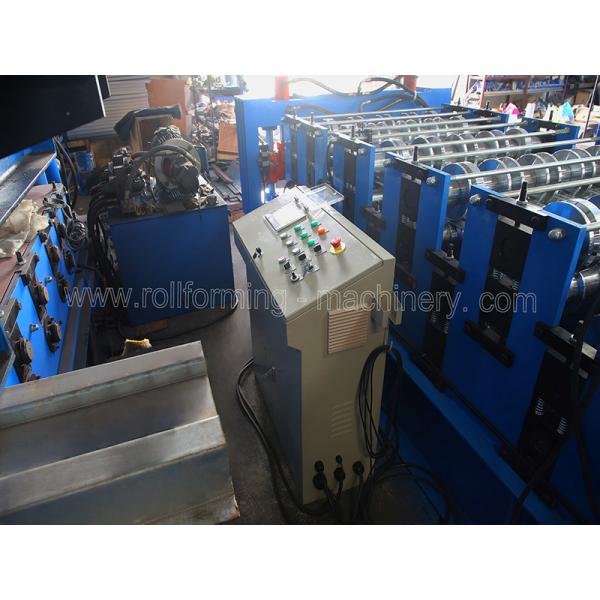

PLC Control System
Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On TheTouch Screen.
lt Can Finish The Production Automatically.
Combined With: PLC, Inverter,Touch Screen,Encoder, etc.

Shaft 95mm Thickness 0.8 0.9mm Steel Deck Roll Forming Machine

Exit Rack

Shaft 95mm Thickness 0.8 0.9mm Steel Deck Roll Forming Machine

Packing Style

Packing method: Main body of machine is naked and covered byplastic film(to protect of dust and corrosion),loaded into containerand steadily fixed in container suitable by steel rope and
lock, suitable for long-distance transportation.
Shaft 95mm Thickness 0.8 0.9mm Steel Deck Roll Forming Machine
After-sale service
1.The warranty is 24 months after the client receives themachine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2.We offer technical support for the entire life of our machines.
3.We can send our technicians to install and train the workers in theclients' factories with extra cost.
Terms of trade


1.Minimum order quantity (MOQ): 1 Set

2.Delivery time: about 45 workdays

3.Port of loading: port of Xiamen

4.Type of payment: by T/T or by L/c
5.Export:to more than 50 countries and regions, including Taiwan,UK, France, Singapore,India,Greece,Australia, USA, Mexico,Brazil,Chile, Bolivia,Trinidad, lsrael, Saudi Arabia, etc
