550Mpa Thickness 0.23mm PPGI Roof Forming Machine
550Mpa Thickness 0.23mm PPGI Roof Forming Machine
550Mpa Thickness 0.23mm PPGI Roof Forming Machine
550Mpa Thickness 0.23mm PPGI Roof Forming Machine
Specifications
Brand Name :
BMS
Model Number :
YX25-187-750
Certification :
CE
MOQ :
1 Set
Price :
USD 19980-28990/Set
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
45days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
After-sales Service Provided :
Engineers available to service machinery overseas
Working material :
PPGI
Thickness :
0.14-0.23mm
Yield strength :
550Mpa
Decoiler :
Manual
Housing :
H450 beam
Shaft :
80/95mm
Forming station :
20 steps
Cutter material :
Cr12MoV
Side wall thickness :
18mm
Description

Thickness 0 , 14 - 0 , 23mm Stength 550Mpa Thin Roof Forming Machine

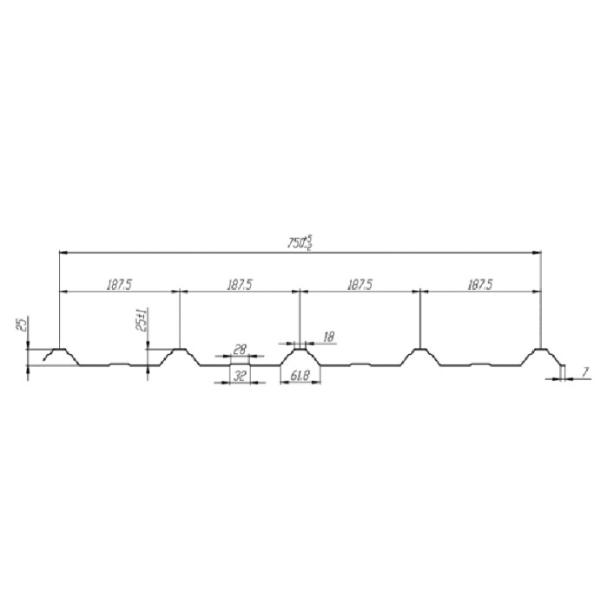

Profile Drawing

550Mpa Thickness 0.23mm PPGI Roof Forming Machine

Parameter

Item Parameters
1 Type YX25-187-750
2 Thickness 0.14-0.23mm
3 Forming Speed 20-25 m/min
4 Yeild Strength 550Mpa
5 Servo Motor Power 7.5 KW
6 Hydraulic Power 4 KW
7 Roller 45# steel
8 Weight about 8T

Material

Effective Width:750mm

Feeding Width:about 914mm

Material Thickness:0.14-0.23mm

Applicable Material:PPGI
With Yield Strength:550Mpa

The profile size tolerance:±0.5mm

Work follow

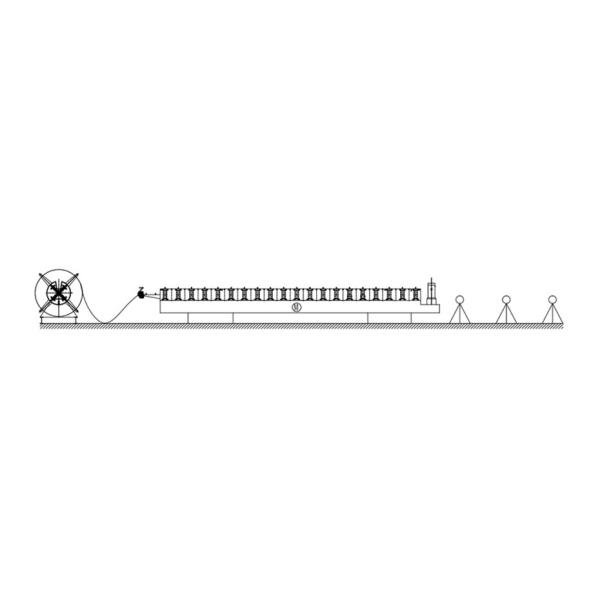

Decoiler→Manual Pre-cutter→Guide Feeding→Rolling Forming System →Hydraulic Post Cutter→Exit Rack

550Mpa Thickness 0.23mm PPGI Roof Forming Machine

Decoiler

Manually decoiler: one set.Un-powered,manually control steel coil inner bore shrinkage and stop

Max feeding width: 1000mm, coil ID range 508mm±30mm,Max capacity: 5T

550Mpa Thickness 0.23mm PPGI Roof Forming Machine

Main Machine

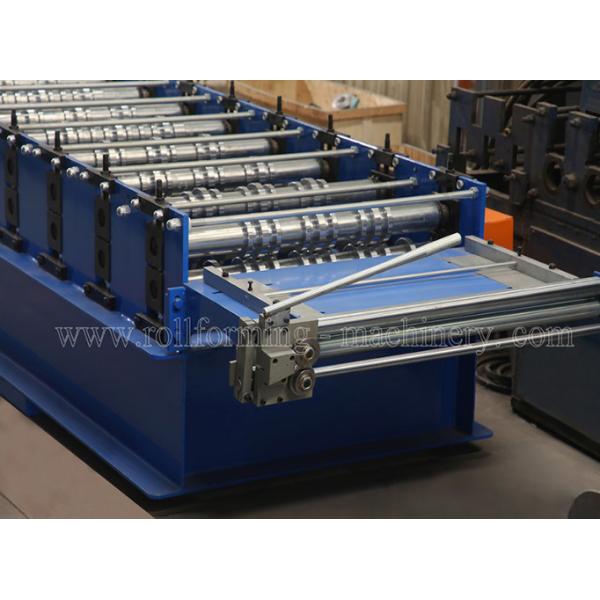

With manual pre-cutter for easy operation and save material:
550Mpa Thickness 0.23mm PPGI Roof Forming Machine

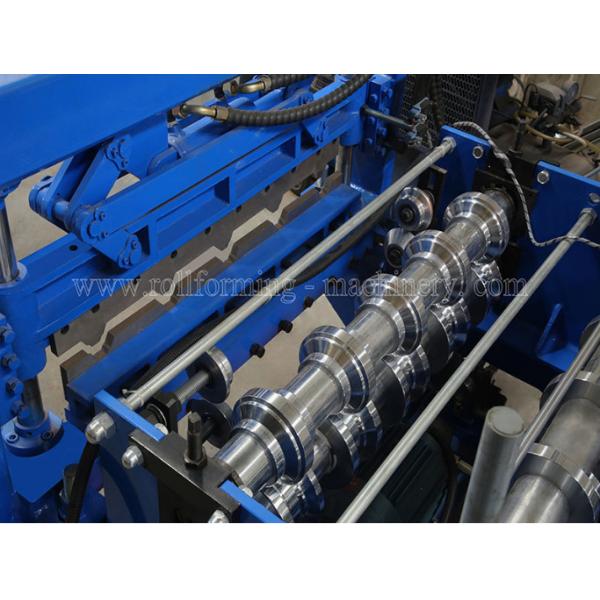

With feeding material guide,body frame made from H450 type steel by welding.Side wall thickness:Q235 t18mm

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment,Hard Chrome Coated. with thickness0.04mm,surface with mirror treatment(for longer life and anti-rust).

Main shaft diameter=φ80/95mm round steel, precision machined Motor driving, Gear chain transmission, 20 steps to form. Main motor=7.5KW, Frequency speed control.

550Mpa Thickness 0.23mm PPGI Roof Forming Machine

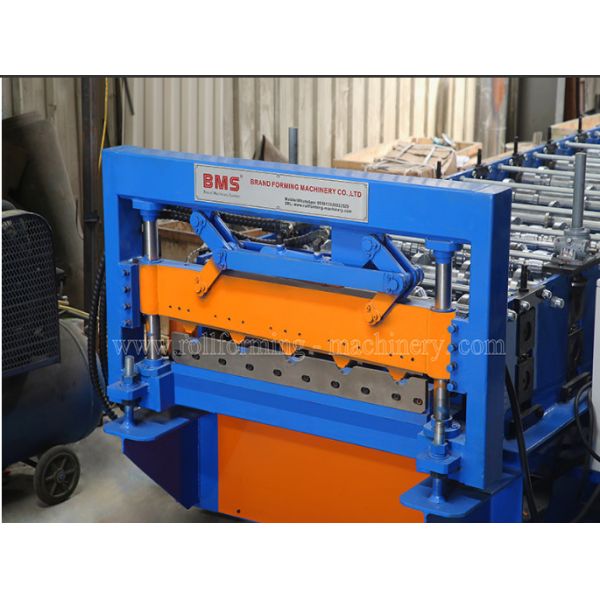

Post to cut,stop to cutting,Two pieces type of cutting blade design,no blanking.Cutting tool material: Cr12MoV(=SKD11,with at least one million times of cutting lives)Heat treatment to HRC 58-62 degree,Hydraulic motor: 3KW .The cutting power is provided by the main engine hydraulic station.

550Mpa Thickness 0.23mm PPGI Roof Forming Machine

PLC Control System

Control the quantity and cutting length automatically.Input the production date(production batch,Pcs,length,etc.)on the touch screen.
It can finish the production automaticlly Combined with: Plc. Inverter. Touch Screen. Encoder. etc
550Mpa Thickness 0.23mm PPGI Roof Forming Machine
Exit Rack
Un-powered,Three units,with rollers on it for easy movement.
550Mpa Thickness 0.23mm PPGI Roof Forming Machine

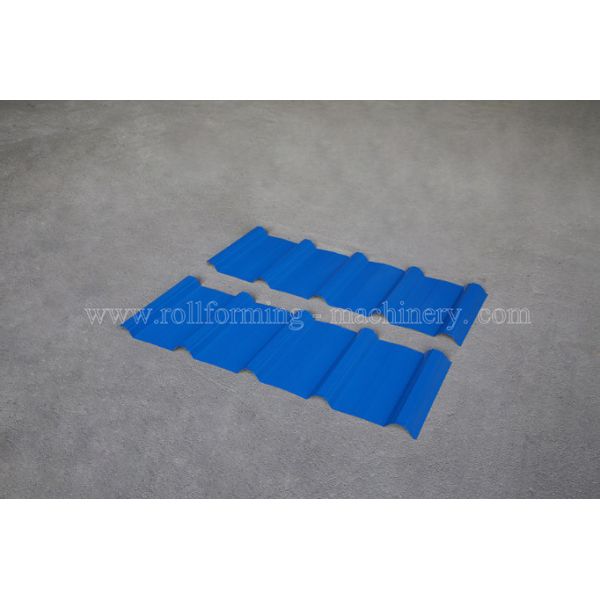

Prouduct show
550Mpa Thickness 0.23mm PPGI Roof Forming Machine
Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
550Mpa Thickness 0.23mm PPGI Roof Forming Machine
After-sale service
1. The warranty is 24 months after the client receives the machine Within 24 months, we will courier the replacement parts to the client free of charg.
2. We offer technical support for the entire life of our machine .
3. We can send our technicians to install and train the workers in the clients factories with extra cost.

Terms of trade

1. Minimum order quantity (MoQ): 1

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
