SGS Steel Construction Floor Deck Roll Forming Machine YX50-333-1000
SGS Steel Construction Floor Deck Roll Forming Machine YX50-333-1000
SGS Steel Construction Floor Deck Roll Forming Machine YX50-333-1000
SGS Steel Construction Floor Deck Roll Forming Machine YX50-333-1000
Specifications
Brand Name :
BMS
Model Number :
MS50-333-1000
Certification :
SGS
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
45set
Delivery Time :
70days
Packaging Details :
Nude Packing in The Container Suitable for Floor Deck Roll Forming Machine
Color :
Blue and Yellow
Condition :
New
Voltage :
380V 50Hz 3phases
Raw material :
Galvanized Sheet
Control system :
PLC(imported Brand)
Name :
Floor Deck Plate Making Machine
Description

Steel Construction Floor Deck Roll Forming Machine Price YX50-333-1000

Main description:

Floor decking forming machine: Complete line to make the floor deck forming machine, according to customer's requested sample or profile drawings.

Working schedule: Decoiler------Guiding ------Main forming machine-----Hydraulic cutting device-------Run out table----PLC Control system

Components:

Item Quantity
Decoiler 1set
Guiding 1set
Main forming machine 1set
hydraulic cutting device 1set
Hydraulic station 1set
PLC Control system 1set
Simple run out table 2set

The production process:

Decoiler→Guiding device→Roll-forming Machine→Hydraulic cutting→Run out table

Details main machine

1) Suitable material: pre-painted galvanized steel or Aluminum. material thickness: 0.8~1.5mm

2) Forming speed: 14-16 meters/min

3) Forming stations: According to customer's requested profiles

4) Roll material: 45# steel with heat treatment and chrome plating on surface, Hardness: HRC58~62

5) Shaft material: 45# steel with heat-treatment. (Dia:85mm)

6) Main machine motor power: 30KW

7) Cutting: Hydraulic cutting

8) Cutting blade material: Cr12Mov, HRC58~62

9) Control system: The whole machine is controlled by PLC,

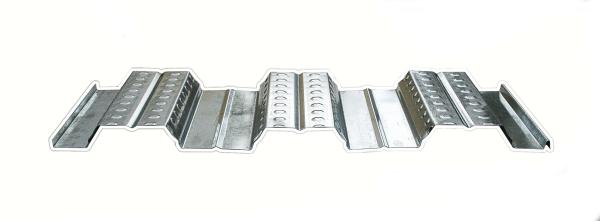

Sample Display:

SGS Steel Construction Floor Deck Roll Forming Machine YX50-333-1000
