High-Quality Shelf Pillar Supermarket Cold Roll forming Machines With Leveling

Machine Description

1. Applicable Materials:

1) Coil Thickness: 1.4-2.0mm

2)Yield Strength: G340-G550
2) Raw Material: GI/CRC

2. The equipment including

5T Manual decoiler:1 set

Leveling and punching machine: 1 set

Servo feeding machine: 1 set

Roll forming machine: 1 set
PLC control system: 1 set

Exit rack:3 set

Detailed Description

5T Manual De-coiler

Unpowered
Capacity weight: 5Tons

Coiling inner diameter: 508±30mm
Working pressure: 12Mpa
Coil outer diameter: 1500mm

Feeding and leveling machine

Servo motor:2.2KW(Yaskawa Japan)

After unwinding, the coil enters the unit guide roller (left and right adjustable)

Feed roller:material 45 # steel,with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Leveling roller are on top three shafts and four shafts in the following, surface quenching

Using hydraulic punching
Mould material: Cr12Mov, Quenching to 58-62°
Punching pressure: 120 tons

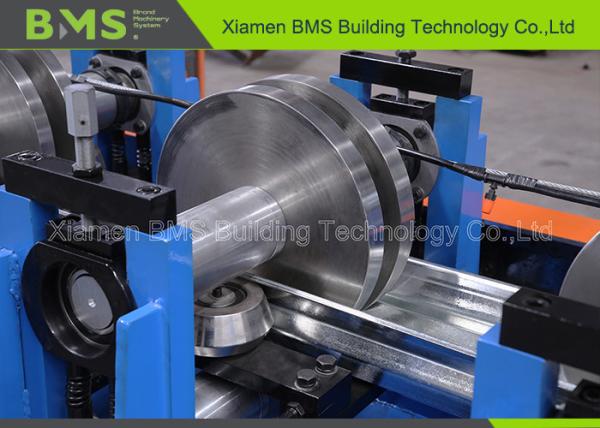

Main roll forming

Main power: 15KW

Structure: Arch frame

Drive: gearbox drive

Shaft Diameter: ￠ 75mm,

Material 45 # quenching and tempering

Roller material: GCR15 quenched to 58°-62°, with thickness 0.04mm, surface with mirror treatment(for longer life and anti-rust)

Forming Stations: about 18 stations

Forming speed:8-16m / min

Computer PLC control, operation panel with touch screen display

Packing & Delivery

Payment terms and after-sales service:

1) FOB Xiamen

2) Payment: 30% T/T deposit, and pay the balance before shipping.

3) Delivery time: 60 working days.

Installation and training:

1. If the buyer visits our factory and inspects the machine, we will teach you how to install and use the machine and train your workers/technicians face to face.

2. Without access, we will send you a user manual or video to teach you how to install and operate.

3. Installation cost:

1)Incorrect operation& maintaining, the machine is guaranteed for 24months from the date of the successful installation and commissioning of the types of equipment at the Buyer’s Installation site. (the spare parts stock are available for IMMDEIATELY SERVICE)

2)If necessary, we will dispatch a technician to the factory abroad to install regulate the machine with USD100/day. The buyer should assist our technician to get the visa and should pay for the air around the ticket and the local accommodation.

If you have any other questions about our machine, please feel free to contact me. Thanks
