Fast Speed 11 KW 45# Steel Roll Forming Machine High-Frequency Processing
Fast Speed 11 KW 45# Steel Roll Forming Machine High-Frequency Processing
Fast Speed 11 KW 45# Steel Roll Forming Machine High-Frequency Processing
Fast Speed 11 KW 45# Steel Roll Forming Machine High-Frequency Processing
Fast Speed 11 KW 45# Steel Roll Forming Machine High-Frequency Processing
Fast Speed 11 KW 45# Steel Roll Forming Machine High-Frequency Processing
Specifications
Brand Name :
BMS
Model Number :
BMS
Certification :
CE/SGS/ISO
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
35set/month
Delivery Time :
60days
Packaging Details :
Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
Tile type :
roll forming machine/building material machinery
Side wall thickness :
Q235 t20mm Integral type wall board
Rollers :
45# steel High frequency processing
Main Motor :
11KW
Chain size :
18teeth
Screw bolts :
grade 8.8
Description

11 KW 45# steel High-Frequency Processing Taiwan Roll Forming Machine

Machine Components

1) 5 Manual Decoiler: one set

Automatically control steel coil inner bore shrinkage and stop

Max feeding width: 1000mm, Coil ID Range: 508±30 mm

Max Capacity: 5 Tons

2)Manual Pre-Cutter

The pre-cutter is connected with PLC control system, PLC is calculating profile length within roll forming. Once the material is required to change, PLC is calculating the length for total quantity and remind operator: production finishes and able to manual shearing material before roll forming so as to change material for new production.

It is the advanced function and good for production to save material, no waste

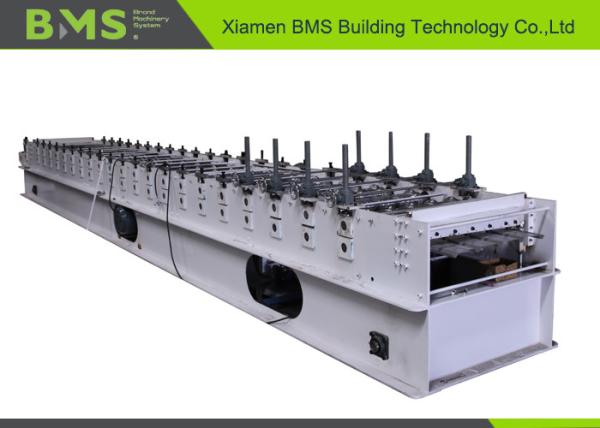

3)Main Machine

Main Parameter Description Remark
Sidewall Thickness 18MM
Main Motor 11KW Frequency speed control
Speed redcucer motor R series
Chain size 18teeth one inch with 18teeth
Screw bolts Grade 8.8
Forming speed 18m/min
Forming station 24 step

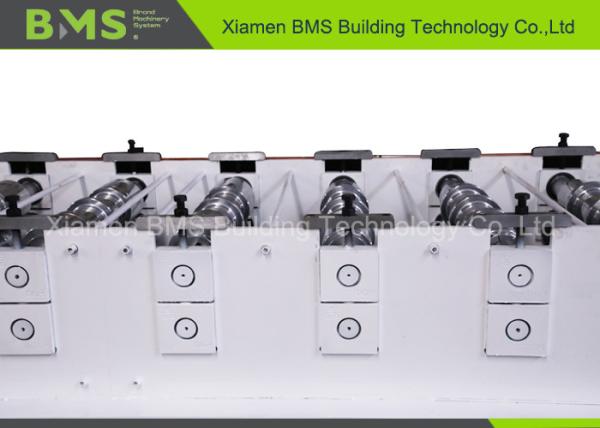

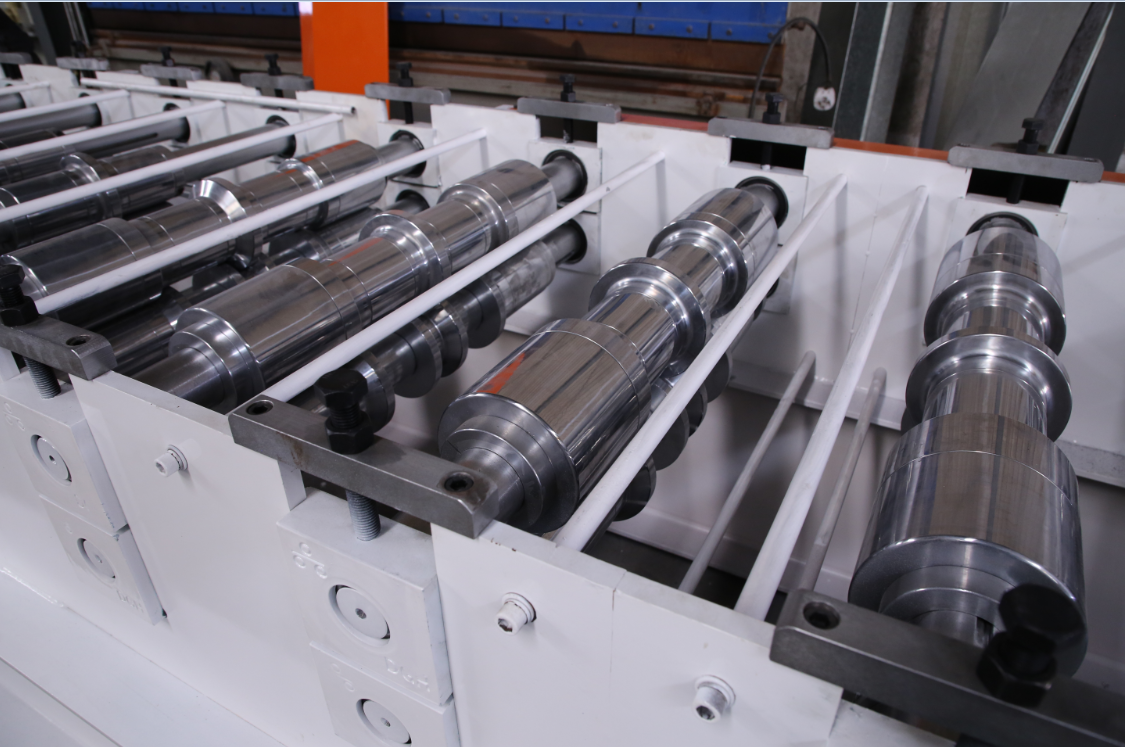

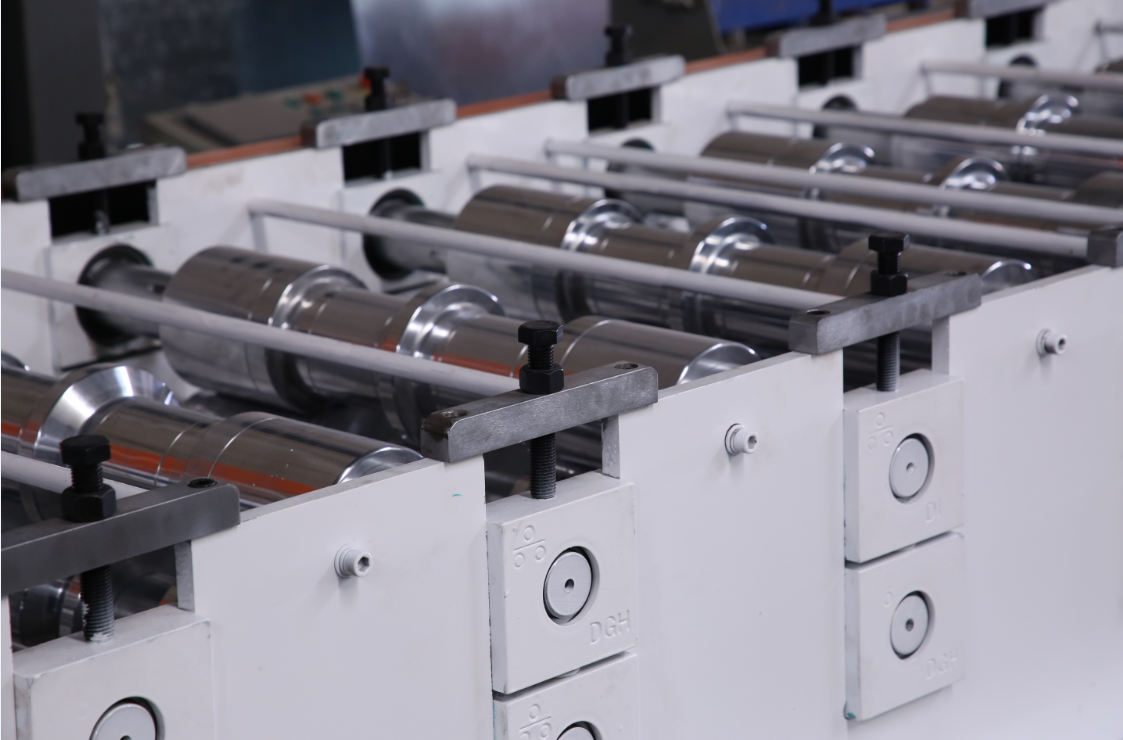

4)Roller

Fast Speed 11 KW 45# Steel Roll Forming Machine High-Frequency Processing

Fast Speed 11 KW 45# Steel Roll Forming Machine High-Frequency Processing
