Specifications
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
60day
Brand Name :
BMS
Certification :
SGS/CE/ISO9001
Place of Origin :
Xiamen，China
Model Number :
YX181-131
Packaging Details :
Cover the surface of the machine with plastic film to prevent dust and fix it in the container with steel rope
Cutter :
Hydraulic cutter
Control system :
PLC auto control
Process :
Finish machining
Production capacity :
15m/min,Can be designed according to requirements
Hydraulic power :
4KW
Raw material :
PPGI PPGL GI GL
Usage :
Poultry feeding
Punching :
Hydraulic Punching
Description

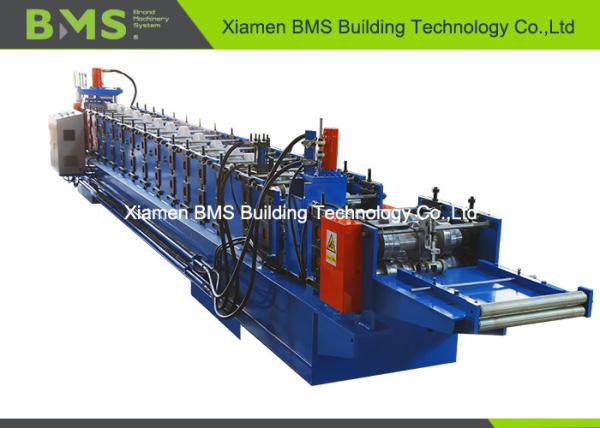

YX181-131 Gutter Roll Forming Machine for Poultry feeding with Hydraulic Punching

This machine is widely used in large poultry breeding. Main machine using H400steel, more strong.Roller after finishing treatment, roller in addition to finishing surface also hard chrome plating.

This machine can be customized.

Reference of applicable materials

Material: G390Mpa Galvanized sheet

Feeding Width:387.2mm

Thickness:1.0mm

Reference of parameter

Forming station:18steps

Roll Shaft:45#steel

Process: Finish machining, Hard chrome plating on the surface

Production capacity:15m/min, Can be designed according to requirements

Cutter:Cr12,heat treatment

Main Machine Power:11KW,Cutter Power:7.5KW

Machine color:Blue(RAL5015)+Black(RAL9011)+Orange(RAL2004)

No Parameter Quantity Remark
1 Feeding Port 1
2 Material Limit 1
3 Punching die 2 Hydraulic Power:7.5KW
4 PLC 1 Delta/Siemens/Schneider
5 Forming station 1 18steps
6 Cutter 1 Hydraulic
7 Run-out table 2

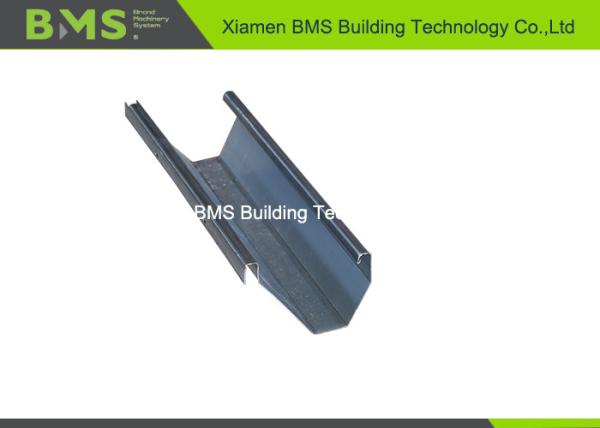

Profile Drawing

SGS Gutter Roll Forming Machine For Poultry Feeding With Hydraulic Punching

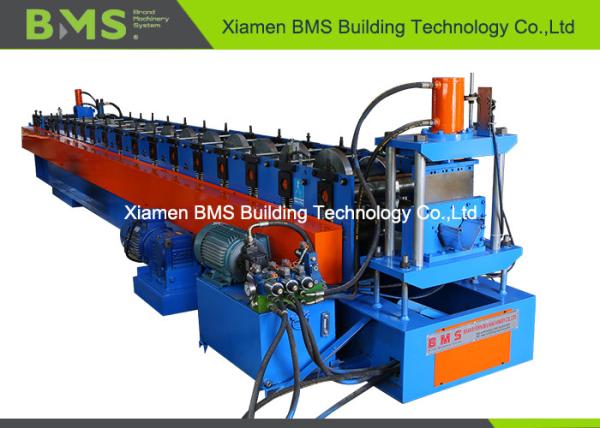

Hydraulic Punching

SGS Gutter Roll Forming Machine For Poultry Feeding With Hydraulic Punching

"K" series reducer

SGS Gutter Roll Forming Machine For Poultry Feeding With Hydraulic Punching

Hidden hydraulic scissors

SGS Gutter Roll Forming Machine For Poultry Feeding With Hydraulic Punching

Finished lapping effect

SGS Gutter Roll Forming Machine For Poultry Feeding With Hydraulic Punching
