Metal Door Frame Roll Forming Machine YX37-135

Main machine parameter

Work Follow:

Decoiler→Feeding Guide Device→Roll Forming System→Hydraulic Post Punching & Cutting Device→Exit Rack

Profile Drawing

Main Components

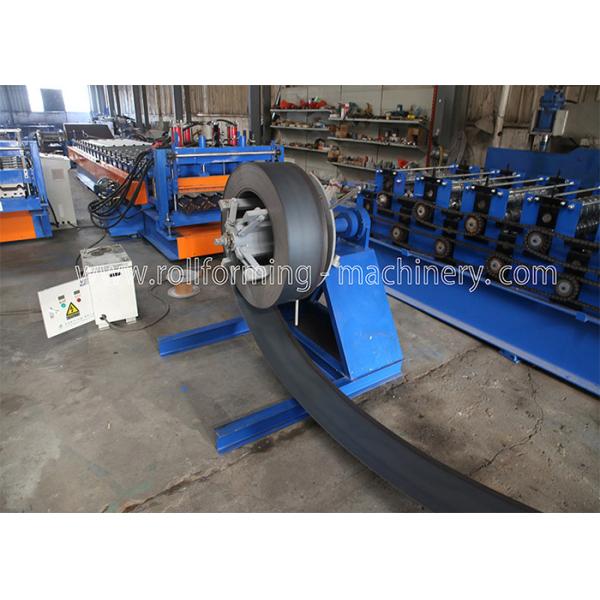

1) Manual Decoiler: one set

Un-powered, Manually control steel coil inner bore shrinkage and stop Max Feeding width: 500mm,coil ID range 508mm±30mm Capacity: Max. 3 Ton

2) Feed Guide Device

The guiding position can be adjusted for suitable material feeding.

3) Main Machine

Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm

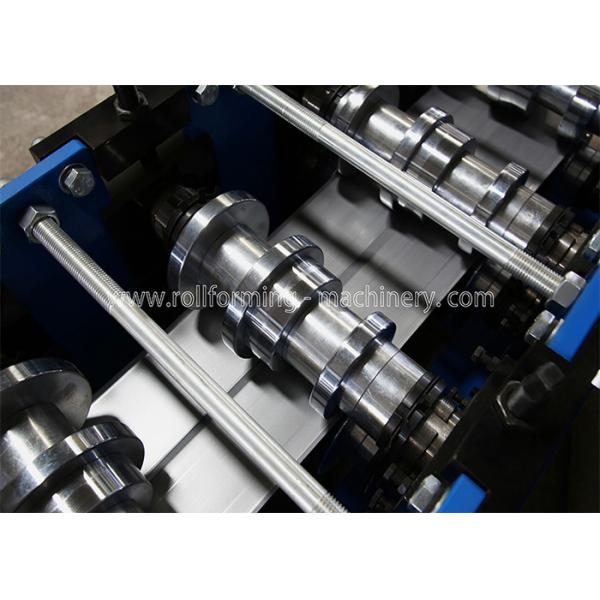

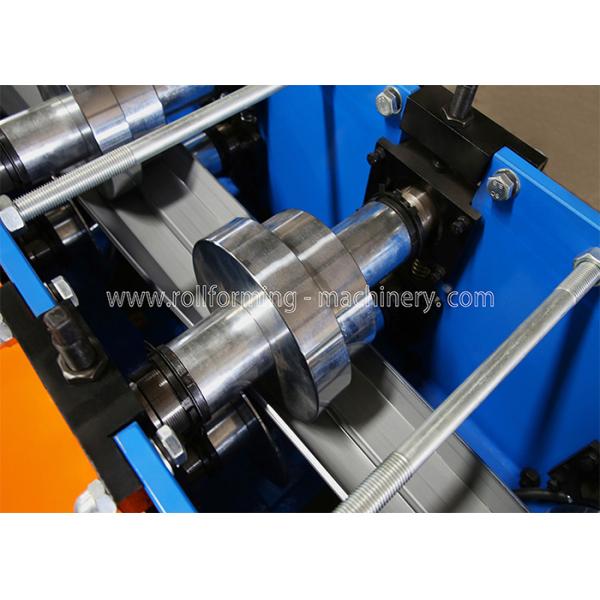

Rollers manufactured from GCr15 Steel,Heat Treatment,HRC58-62
Shafts Diameter=ф75mm,precision machined
Gear/Sprocket driving,about 14-step to form
Main Motor(Polaroid brand)=11KW,Frequency speed control
Real forming speed:15-18m/min

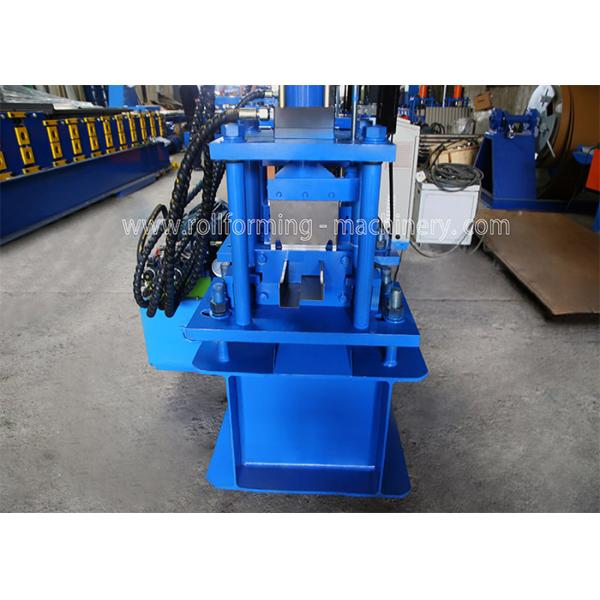

4)Hydraulic Post Punching & Cutting Device

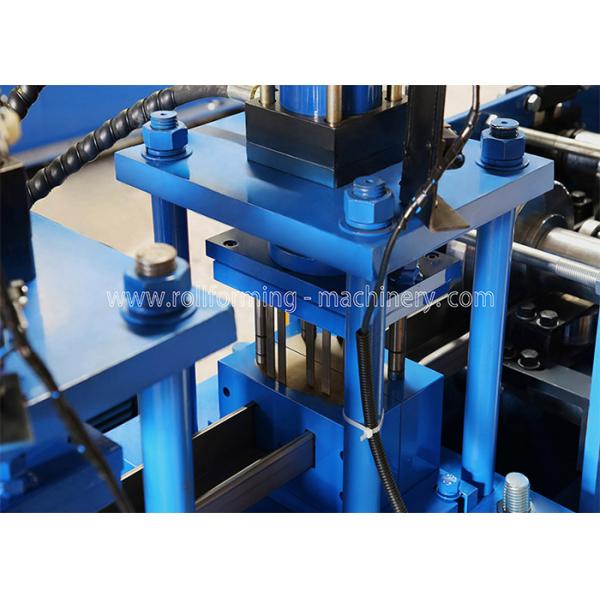

Post to cut & Punch holes, stop to cutting & punching,Three pieces type of cutting blade design

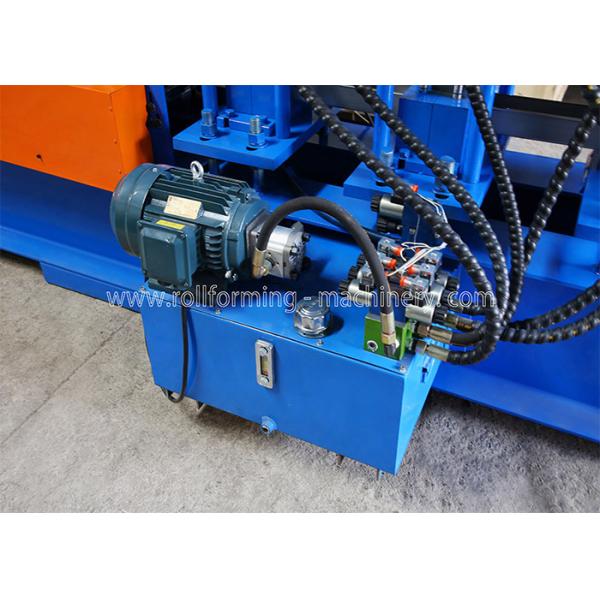

Hydraulic motor: 7.5KW,Cutting And Puching Device Use The Same Hydraulic Station
Cutting & Punching moulds material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station

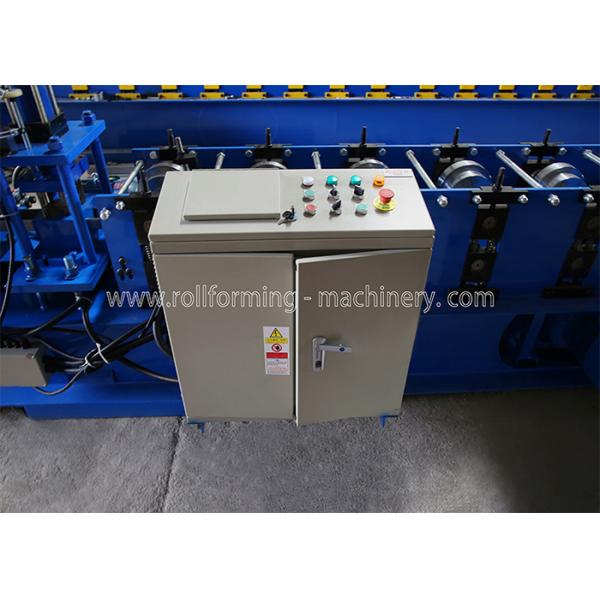

5) PLC Control System

Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

6.Exit Rack

Un-powered, Two units,with rollers on it for easy movement.
