Specifications
Brand Name :
BMS
Model Number :
YX51-915
Certification :
CE/SGS/ISO9001
Place of Origin :
Xiamen,China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
45days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
Production Capacity :
12-15m/min
Dimension(L*W*H) :
11000*1500*1500
Voltage :
AC 3-380V/415V/440V,50 or 60Hz
Weight :
16 T
Work material :
galvanized sheet(GI),cold roll steel(CRC)
Yield strength: :
235-550Mpa
Forming station :
22 steps
Control voltage :
24V
Description

18.5KW Cheap Steel Floor Decking Roll Forming Machine For YX51-915

1.Main features of floor decking roll forming machine

18.5KW Steel Floor Decking Roll Forming Machine 12-15m/min YX51-915

The advantages of floor decking machine are as follows:

1. Low cost, light weight but high strength, short building period, and re-cycle use
2. Save material, no waste.
3. Easy operation, low maintenance cost

2. Specifications:

Raw material
material spec colored steel sheet, galvanized steel sheet
thickness of coil sheet 0.8-1.5mm
Production capacity approx.12-15m/min
Machine details
roller material 45# steel, precision machined, hard Chrome Coated
shaft material 45#, precision machined
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 80mm or as your requirement
main frame 400 H steel
forming steps 22 steps
Main motor 18.5 KW
controlling system famous PLC computer control
frequency speed control 380V/50Hz/3Ph or 220V/60Hz/3Ph
Terms of trade
Delivery time 45 workdays
Payments T/T or L/C

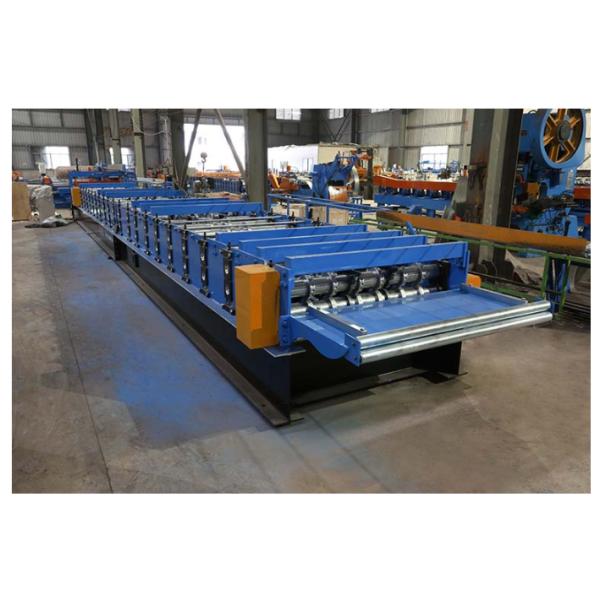

3.Detailed Images of YX51-915 floor decking forming machine


Machine Parts


1)YX51-915 floor decking machine feeding guide


Brand: BMS Original: China

18.5KW Steel Floor Decking Roll Forming Machine 12-15m/min YX51-915

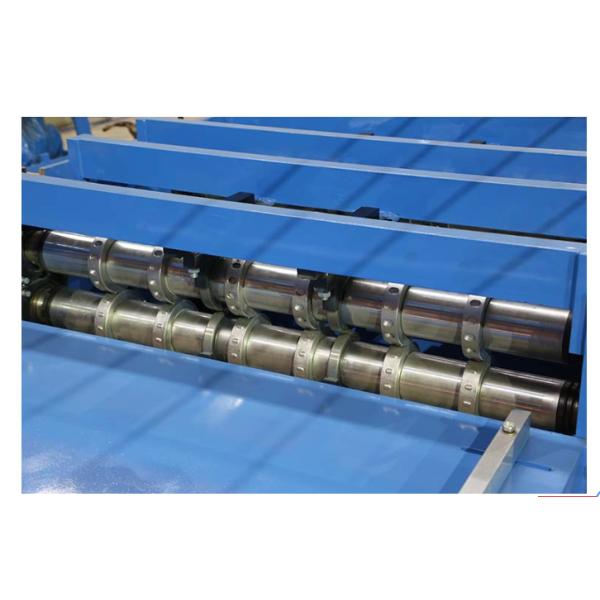

2) YX51-915 floor decking machine embossing

18.5KW Steel Floor Decking Roll Forming Machine 12-15m/min YX51-915

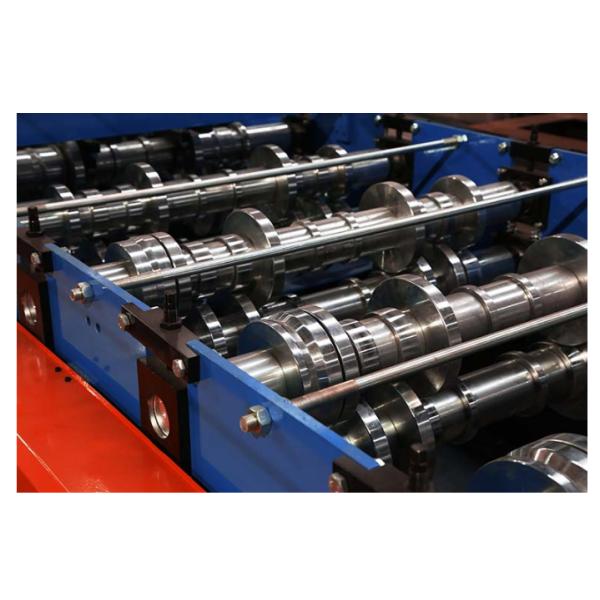

3)YX51-915 floor decking machine rollers


with black treatment or hard-chrome coating for options.
Body framemade from 400# H type steel by welding

18.5KW Steel Floor Decking Roll Forming Machine 12-15m/min YX51-915

4) YX51-915 floor decking machine post cutter


Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor: 18.5KW, Hydraulic pressure range: 0-16Mpa

5) YX51-915 floor decking machine decoiler


Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width:1200mm,coil ID range508mm±30mm
Capacity: 5-9 ton

18.5KW Steel Floor Decking Roll Forming Machine 12-15m/min YX51-915

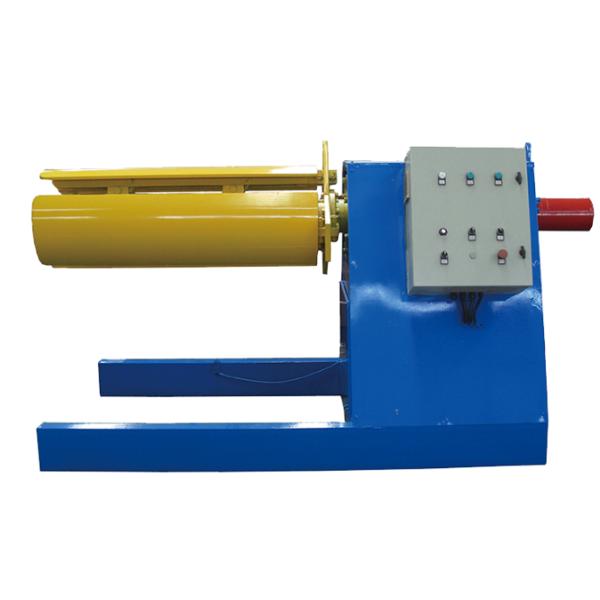

With 6 ton hydraulic decoiler for option

18.5KW Steel Floor Decking Roll Forming Machine 12-15m/min YX51-915

18.5KW Steel Floor Decking Roll Forming Machine 12-15m/min YX51-915

6) YX51-915 floor decking machine exit rack

Un-powered, one unit

4. Other detailes of YX51-915 floor deck roll forming machine

Shafts manufactured from 45#,Main shaft diameter=Φ80mm, precision machined
Motor driving, Gear chain transmission, 22steps to form.
Main motor=18.5KW, Frequency speed control, Forming speed approx.12-15m/min

PLC Control System

touch screen brand: German Schneider electric/ Taiwan Weinview,
Inverter brand: finland vocan/taiwan Delta/Alpha,

Encoder brand: japan Koyo / Omron
combined with: PLC, Inverter,touchscreen, encoder,etc
Cut-to-length tolerance≤±2mm
Control Voltage 24V
User's manualish English

5. After-sale service of roof panel roll forming machine
1. The warranty of roof panel roll forming machine is 24 months after the client receives the machine
Within 24 months, we will courier the replacement parts to the client free of charg
2. We offer technical support for the entire life of our machine
3. We can send our technicians to install and train the workers in the clients factories with extra cost
