YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved
YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved
YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved
YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved
YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved
YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved
YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved
YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved
Specifications
Brand Name :
BMS
Model Number :
YX36.5 - 780
Certification :
CE/SGS/ISO9001
Place of Origin :
Xiamen,China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
45days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
Voltage :
AC 3-380V/415V/440V,50 or 60Hz
Advantage :
Easy Operation, Fully Automatic
Item No :
YX36.5--780
Form Speed :
18-20m/min
Roller :
45#steel
Hydraulic motor :
2.2KW
Hydraulic pressure range :
0-12Mpa
Cutting tool material :
Cr12, Heat treatment
Description

YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved

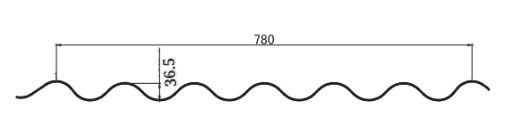

1. Profile

YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved

2. Main Technical Specifications

Name Corrugated Roof Metal Sheet Roll Forming Making Machine
Raw Material Material Aluminium PPGI
Width 914/1000/1200/1220/1250/1260mm
Thickness 0.4-0.8mm, customized
Power Power 380V 3Phase 50Hz, customized
Main Motor 5.5KW, Schneider/Siemens Brand
Cutting Motor 2.2KW, Schneider/Siemens Brand
Roll Forming Machine Support Frame 450H steel
Forming Station 28 rollers, exactly according to profile drawing
Structure 18mm
Shaft 45# high grade steel, 80mm, solid, with keyway
Roller 45# high grade steel with heat treatment, hard chrome plated
Bearing Standard
Speed 15-20m/min
Electric Components Delta / Siemens / Mitsubishi
Cutting Blade Cr12Mov, quenched 58°-62°
Operation Touch Screen
Weight 8T

3. Main features of corrugated panel roll forming machine

The advantages of corrugated roof panel forming machine are as follows:

1.Products widely used in modern factory,such as workshop,4S auto shop,is a new popular roof panel.

2.Easy operation, low maintenance cost

3.Forming steps: 28

Machine Parts

1) Corrugated roof panel forming machine rollers

Brand: BMS Original: China

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

With black treatment or Hard-Chrome Coating for options.

With feeding material guide,Body framemade from 300# H type steel by welding

2) Corrugated roof panel machine touch screen

easy to operate.

YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved

3) Corrugated roof panel machine post cutter

Cutter frame made from high quality 20mm steel plate by welding

Post cut, stop to cutting, use the same hydraulic motor drive

YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved

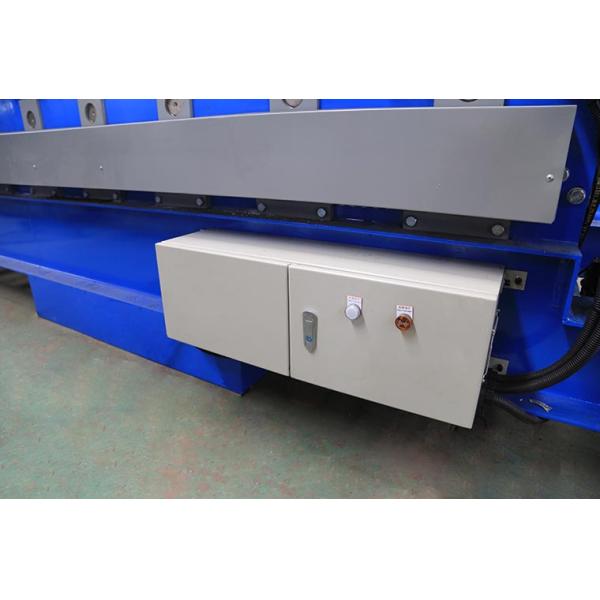

3) Corrugated roof panel machine control cabinet

YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved

4) Corrugated roof panel machine product show

YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved

Overlap Effect

YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved

5) Corrugated roof panel machine decoiler

Manual Decoiler: one set

Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1000mm, coil ID range 470mm±30mm

Capacity: Max. 5Ton

YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved

With 6 tons hydraulic decoiler for option

YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved

6) Corrugated roof panel machine exit rack

Un-powered,three units

YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved

4. Other detailes of corrugated roof panel roll forming machine

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 28 rollers to form

Main motor=5.5KW , Frequency speed control. Forming speed approx.15-20m/min

PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

User's manual in English
