Work Follow:

Decoiler and Leveling Device→Feeding Device And Pre-Punching Device→Main Forming System →Guide Wheel And Automatic Hydraulic Cutting Device →Exit Rack

Profile:

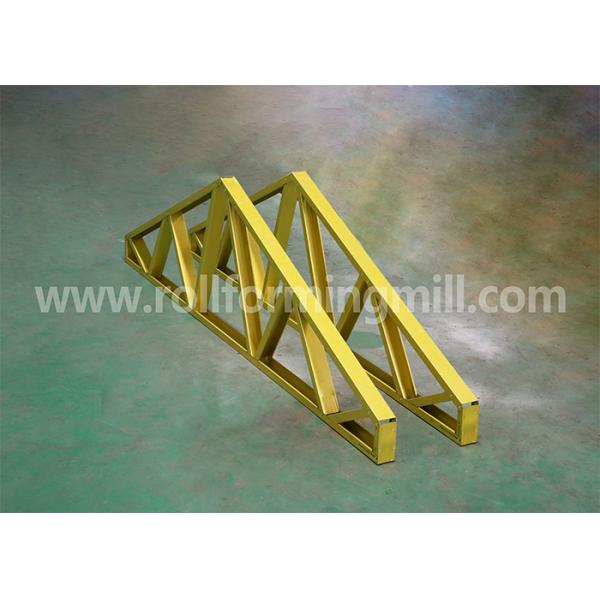

Machine Components

1) 2Tons Hydraulic Decoiler And Leveing Device

Hydraulic control steel coil inner bore shrinkage and stop
Max feeding width:500mm, coil ID range Ф460mm-Ф520mm,OD Ф1400mm,Capacity:Max 2Tons
decoiler by inverter control the speed,Power:2.2kw

2)Feeding Device And Pre-Punching Device

Left and right guiding device. The material enters into the main forming machine through left and right guiding device to reach the material feeding and leveling effect

Five-cylinder hydraulic driving

Stamping mould manufactured from S45C tooling steel, die core manufactured from D2 (SKD11) steel, mould parts use

Lip Notch hole,Dimple hole,Web notch hole,Web oval hole,Web round hole are available in the machine
Punching model:
Lip notch hole: one set
Dimple hole: three sets, hole diameter:Φ3.5mm/Φ10mm/Φ16.5mm
Web notch hole: many sets, depends on the commonly used specs
Web oval hole: one set
Web round hole: one set

Punching models: need to confirm with the buyer about the commomly used bottom width data.(Standard equiped with one set)

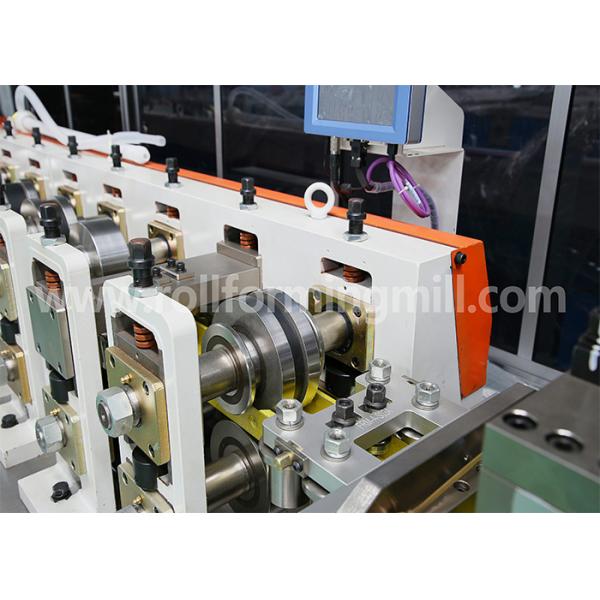

3)Roll Forming System

The machine dimension(L*W*H):About 4900mm*1000mm*1500mm
Body frame made from steel board by welding; wholely annealing and stress-relieve treatment to ensure the long time use

Without distortion;processed by CNC machining centre to ensure accuracy

Forming mold:Cr12MoV molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner

Hole and the end face.The precision machining roller surface with CNC lathe

Main shaft: manufactured from 40Cr tooling steel, quenching and tempering external grinding and machined

Driving type: servo motor and gearbox linkage, rollers adopt the precision hard gears oiled running, to ensure super long-time

Using without wearing.Bearing:Japan NSK brand

4)The Hydraulic Post Cutting

Accumulator type structure, for energy saving and environmental protection

Hydraulic parts: with Germany Bosch Rexroth product,Motor: and with Swedish-Swiss brand ABB motor,which ensure stable working and long life.

Hydraulic motor:5.5KW

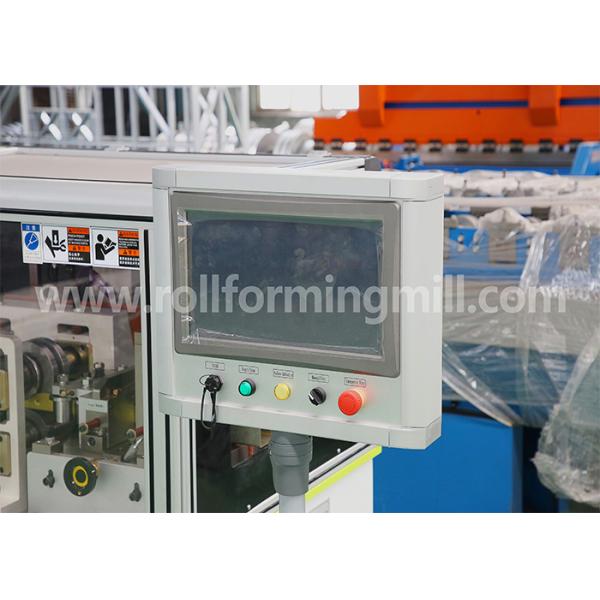

5)PLC Control System

Original imported motion controller and PLC,equipped with iPhone manufacturer FOXCONN brand Industrial grade computer

International first class brand of low voltage components

6)Exit Rack And Free-Standing Frame

With main free standing housing box-type structure, box body processed by CNC machining center

And others free standing frame with independent structures

7)Digit-controlled Inkjet printer

With Industrial class high quality solvent type electronic inkjet printer(maintenance-free ), which printing clearly, firmly and easy to installation
With universal solvent ink, easy to purchase, and save the cost
Automatically print the tags which generated automatically by the design software, without human intervention
You can add any information on the LGS maker production control system, such as: the company name, logo, website and so on

8)Production design

VERTEX BD Software
(International famous leading Light Steel Structure design software)
1.Automatically generate the frames structure of walls, floors and roof, reducing design time
2.Really automatic three-dimensional modeling, to ensure the accuracy of 100%
3. The Software built-in engineering analysis functions, can automatically calculate the structure bearing capacity
4.Automatic generate the frame 3D drawing and 3D decoration drawing
5.Automatic split the drawing, according to the design, split the architectural framework into the single unit drawing
6.Automatically generate the accurate steel part material placing form and BOM(bill of material)
7.Automatically calculate the BOM of the entire building, including the required steel, board, insulation material, number of
doors and windows, screws, and other related materials, can evaluate for the project cost accurately, and easy for users
to bid for projects
8.Automatically generate the processing data (including component tags) for docking with the equipment

9.With English version software, easy to understand. The designers can learn the usage just through a simple training

Packing Style
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.




After-Sale Service
1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
