AUTO Roofing Curving Machine YX35-200-1000 Máquina para curvar techos AUTO

► technical parameter

► Machine Components

Material Thickness:0.3-0.8mm
Applicable Material:Gavalized Steel(GI),Cold Roll Steel(CRC)
With Yield Strength:235-345Mpa

The machine features
The panel forming machine is mainly used to make the profile panel become curved with the required radius through cramps on the surface. It can realize auto control and the curving radius, length and cramp-distance are adjustable through setting on the screen and PLC cabinet.

Machine Components
Hydrualic motor =4KW, feeding motor with SERVO type motor
Curving Radius: Min.500mm
Horizontal and vertical two directions

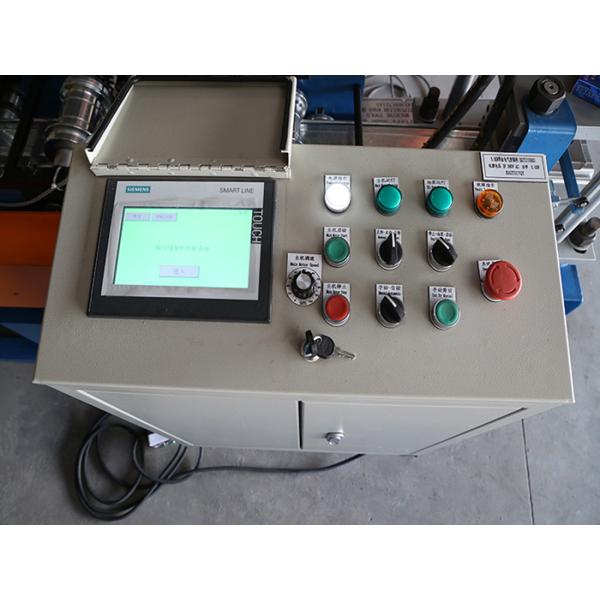

PLC Control System

Control The Quantity And Cutting Length Automatically

Input The Production Data(Production Batch, pcs,Length,etc.)On The Touch Screen,It Can Finish The Production Automatically.

Combined With:PLC,Inverter,Touc Scrren,Encoder,etc.

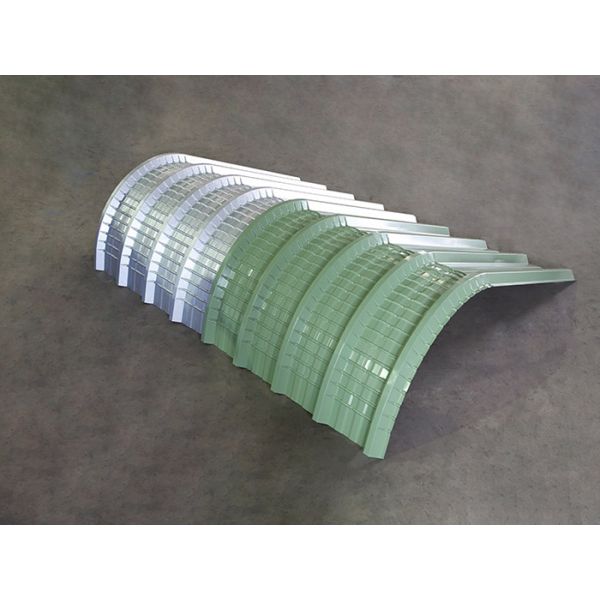

 Product Sample

Packing Style

Packing Method:Main body of machine is naked and covered by plastic film(to protect of dust and accosion),load into container and steadily fixedin container suitable by steel rope and lock,suitable of long-distance transportation.

After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

Terms Of Trade

1. Minimum order quantity (MOQ): 1 Set
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
