AUTO Change Shelf Deck Panel Roll Forming Machine YX40-(350-1000)

Profile:

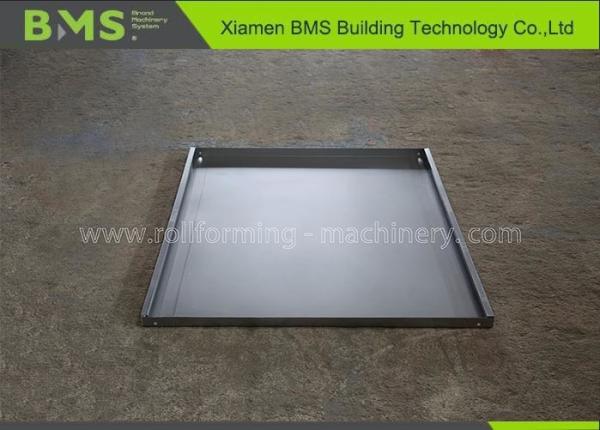

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

AUTO Change Size Width 350-1000mm

The Length Can Be Control By PLC Control System

Main machine parameter

No Main Item Description
1 Suitable Material Galvanized Steel,Cold Roll Steel
2 Material thickness 0.6-1.4mm
3 Material Yield strength G340-G550
4 Forming station About 24 steps
5 Rolled GCr15 steel
6 Shafts Diameter ф95
7 Hydraulic power 2.2 kw
8 Main power 15 kw
9 PLC Brand Siemens/Schneider/Delta
10 Touch Screen Siemens
11 Encoder Omron
12 Exit Rack

Unpower, Two-units, with rollers

Work Follow:

Decoiler→Servo Feeding & Punching Device→Feeding Guide Device→Roll Forming System→Hydraulic Post Bending & Cutting Device→Exit Rack

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

Machine Components

1)5 Ton Hydraulic Decoiler: one set
Hydraulic control steel coil inner bore shrinkage and stop
Max. feeding width:1250mm
Coil ID Range:508±30mm,Outside Diameter:1500mm
Max capacity:5 ton, frequency speed control
Oil pump motor:2.2KW,With Press Arm
Add automatic feeding power and self-stop device

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

2) Servo Feeding & Punching Device
Up Three down four totally seven shafts leveling device
With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm;Servo Motor:4.4KW,Two Gear Boxs Drive
Shafts manufactured from GCr15 Steel(=EN31),Diameter=φ105mm,plated with hard chrome
Coated,precision machined.

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

3) Feed Guide Device

The guiding position can be adjusted for suitable material feeding

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

4) Main Machine

Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm
Rollers manufactured from GCr15 Steel(=EN31 Steel),Heat Treatment,HRC 58-62
Shafts Diameter=ф80mm,precision machined
Gear/Sprocket driving,about 24-step to form
Main Motor(Polaroid brand)=15KW,Frequency speed control
Real forming speed 12-16m/min

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

Use electric motor to auto change size

5) Post Hydraulic Bending & Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor:15KW
Cutting & Bending tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

6) PLC Control System
Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

7)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

8)Product Show

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

Packing Style


Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

Auto Change Shelf Deck Panel Racking Roll Forming Machine 350-1000mm

After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
