Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel
Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel
Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel
Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel
Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel
Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel
Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel
Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel
Specifications
Brand Name :
BMS
Model Number :
Shelf
Certification :
CE，SGS,ISO9001
Place of Origin :
Xiamen，China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 set/month
Delivery Time :
45 days
Packaging Details :
Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
Type :
Shelf forming machine
Production Capacity :
16m/min
Material thickness :
1.2-2.3mm
Item No :
YX20-350
Applicable material :
Galvanized Steel, Cold Roll Steel
Shafts Diameter :
ф80
After-sales service provided :
Field installation, Free spare parts, Online support
Roller material :
GCr15
Description

Single Size Shelf Deck Panel Roll Forming Machine

Profile

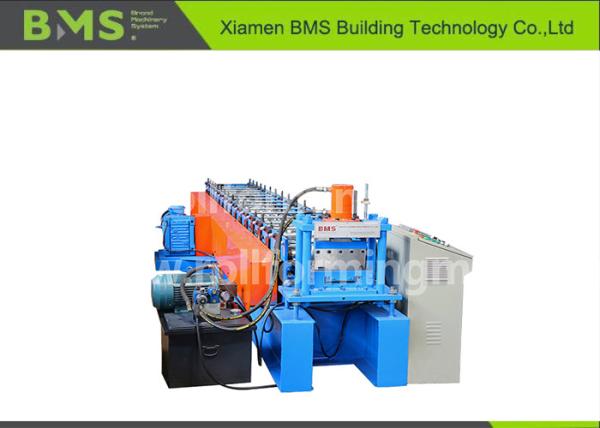

Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel

Main machine parameter

Name Model/Name Quantity Technical Description
1.Decoiling System Manual 1 set Capacity: Max. 3Ton

2.Roll Forming Machine

 Drive device 1 set Main power 7.5KW
main forming machine about 18 steps Sidewall type structure
Saw cutter 1 set Patented adjustable cutter, 1 set
3.Exit System Exit rack 1 PC Length 3 meters
4. PLC Control System 1 set PLC control system, encoder positioning and cut-to-length automatically, touch screen operating

Work Flow

Decoiler→Guide Feeding→Roll Forming System→Hydraulic Post Cutter→Exit Rack


Machine Components:

1) Manual Decoiler: one set
Un-powered, Manually control steel coil inner bore shrinkage and stop.Max Feeding width: 300mm,coil ID range 508mm±30mm.Capacity: Max. 3 Ton.

Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel

2) Feeding Device

Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel

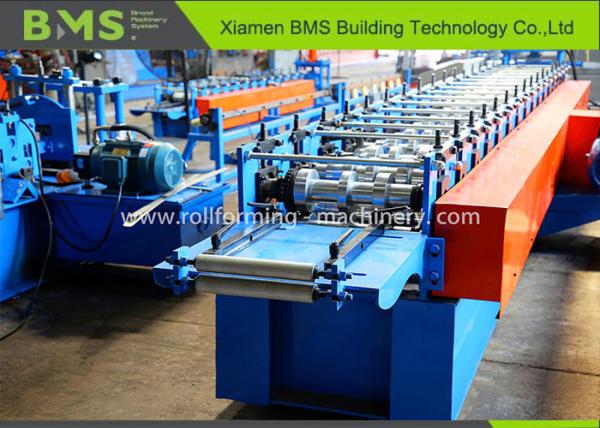

3) Main Machine
With feeding material guide, body frame made from H450 type steel by welding.
Side wall thickness: Q235 t18mm.
Rollers manufactured from GCr15 Steel(=EN31 Steel),HRC58-62
Shafts Diameter=ф80,precision machined.
Gear/Sprocket driving,about 18-step to form.
Main Motor=7.5KW , Frequency speed control.

Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel

Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel

4) Post Hydraulic Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking.
Hydraulic motor: 7.5KW ;Cutting pressure: 0-16Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree.
The cutting power is provided by the independent engine hydraulic station.

Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel

Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel

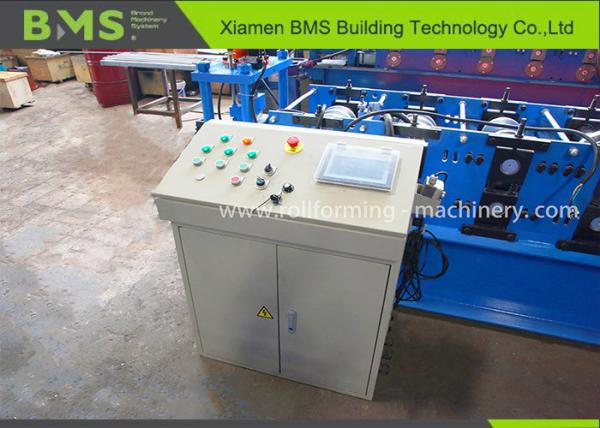

5) PLC Control System
Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel

6) Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel

7)Product Show

Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel

Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel

Packing Style


Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

Shelf Deck Plate Roll Forming Machine 16m/Min Cold Roll Steel


After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms Of Trade
1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 80 countries and regions, including South Korea, Taiwan, UK, Australia, USA, Mexico, Brazil, Russia, Saudi Arabia, UAE, Iran, India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt. With us your money in safe, Your Business in Safe.
