Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change
Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change
Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change
Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change
Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change
Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change
Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change
Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change
Specifications
Brand Name :
BMS
Model Number :
Shelf
Certification :
SGS,CE,ISO9001
Place of Origin :
Xiamen，China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 set per month
Delivery Time :
45 days
Packaging Details :
Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
Item No :
YX40-(250-500)
Form Speed :
12-14m/min
Weight :
15 T
yield strength :
G340-550Mpa
warranty :
24 months
Shaft diameter :
φ80 mm
Cutter :
Cr12MoV
Hydraulic motor :
5.5Kw
Description

AUTO Change Shelf Laminate Deck(Board)Roll Forming Machine use electric motor to auto change width from 350 to 1000mm

Profile

AUTO Change Size Width 250-500mm

Main machine parameter

Name Model/Name Quantity Technical Description
1.Decoiling System Auto 1 set Capacity: Max. 5 Ton

2.Roll Forming Machine

 Drive device 1 set Main power 15KW
main forming machine about 24 steps Sidewall type structure
Saw cutter 1 set Patented adjustable cutter, 1 set
3.Exit System Exit rack 2 PCS Length 3 meters/PC
4.PLC Control System 1 set PLC control system, encoder positioning and cut-to-length automatically, touch screen operating

Machine Components:

Material

Material Thickness: 0.8-1.4mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With yield strength :G340-550Mpa

Work Follow

Decoiler→Servo Feeding & Punching Device→Feeding Guide Device→Roll Forming System→Hydraulic Post Bending & Cutting Device→Exit Rack

Machine Components

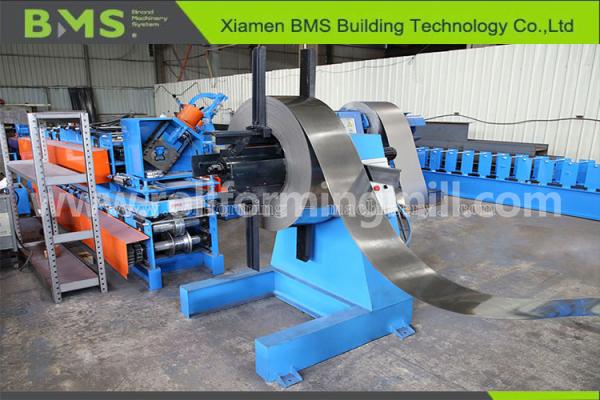

1) 5 T Hydraulic Decoiler

Hydraulic control steel coil inner bore shrinkage and stop
Max. feeding width:600mm
Coil ID Range:508±30mm,Outside Diameter:1600mm
Max capacity:5 ton,Oil pump motor:2.2KW

Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change

2) Servo Feeding & Punching Device

Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change

3) Feed Guide Device

The guiding position can be adjusted for suitable material feeding

Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change

4) Main Machine


Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm
Rollers manufactured from GCr15 Steel,CNC lathes,Heat Treatment
Shafts Diameter=ф80mm,precision machined
Gear/Sprocket driving,about 24-step to form
Main Motor(Polaroid brand)=15KW,Frequency speed control
Real forming speed 15-18m/min(Not include cutting time)


Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change

Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change

Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change

Use electric motor to auto change size

5) Post Hydraulic Bending & Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 5.5KW
Cutting & Bending tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station

Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change

Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change

6) PLC Control System

Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change

7)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change

8) Product Show

Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change

Packing Style


Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

Shelf Laminate Deck ( Board ) Roll Forming Equipment AUTO Change

After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
