Shelf C Beam Seaming To Box Beam Roll Forming Machine YX50-100/160
Shelf C Beam Seaming To Box Beam Roll Forming Machine YX50-100/160
Shelf C Beam Seaming To Box Beam Roll Forming Machine YX50-100/160
Shelf C Beam Seaming To Box Beam Roll Forming Machine YX50-100/160
Shelf C Beam Seaming To Box Beam Roll Forming Machine YX50-100/160
Shelf C Beam Seaming To Box Beam Roll Forming Machine YX50-100/160
Shelf C Beam Seaming To Box Beam Roll Forming Machine YX50-100/160
Shelf C Beam Seaming To Box Beam Roll Forming Machine YX50-100/160
Specifications
Brand Name :
BMS
Model Number :
Shelf
Certification :
CE，SGS,ISO9001
Place of Origin :
Xiamen，China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 set/month
Delivery Time :
45 days
Packaging Details :
Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
Type :
Shelf forming machine
Production Capacity :
20m/min
Material thickness :
1.5-2.0mm
Item No :
YX50-100/160
Applicable material :
Galvanized Steel, Cold Roll Steel
Shafts Diameter :
ф80
After-sales service provided :
Field installation, Free spare parts, Online support
Roller material :
GCr15
Description

Shelf Metal Box Beam Seaming Roll Forming Machine

Profile

Shelf C Beam Seaming To Box Beam Roll Forming Machine YX50-100/160

Change Size By Spacers

Main machine parameter

Name Model/Name Quantity Technical Description

1.Roll Forming Machine

 Drive device 1 set Main power 3KW
main forming machine about 5 steps Gear/Sprocket driving
2.Exit System Exit rack 1 PC Length 3 meters

Work Flow

Run Into Table→Roll Forming System→Run Out Table

Shelf C Beam Seaming To Box Beam Roll Forming Machine YX50-100/160

Material


Material Thickness:1.5-2.0mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With yield strength:G340-550Mpa

1) Feed Guide Device

The guiding position can be adjusted for suitable material feeding

Shelf C Beam Seaming To Box Beam Roll Forming Machine YX50-100/160

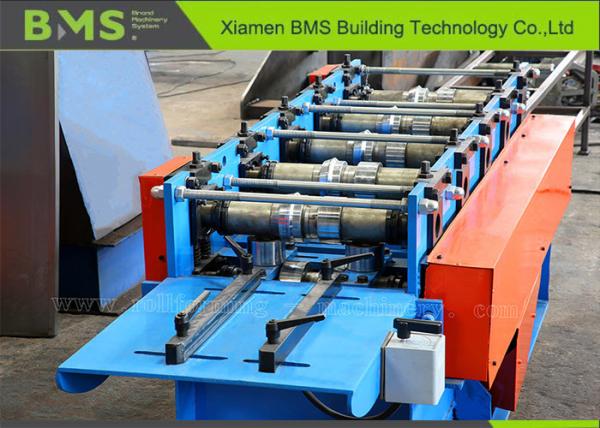

2) Main Machine

Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm
Rollers manufactured from GCr15 Steel(=EN31 Steel),Heat Treatment,HRC 58-62
Shafts Diameter=ф80mm,precision machined
Gear/Sprocket driving,about 5-step to form
Main Motor=3 KW,Frequency speed control
Real forming speed:20m/min

Shelf C Beam Seaming To Box Beam Roll Forming Machine YX50-100/160

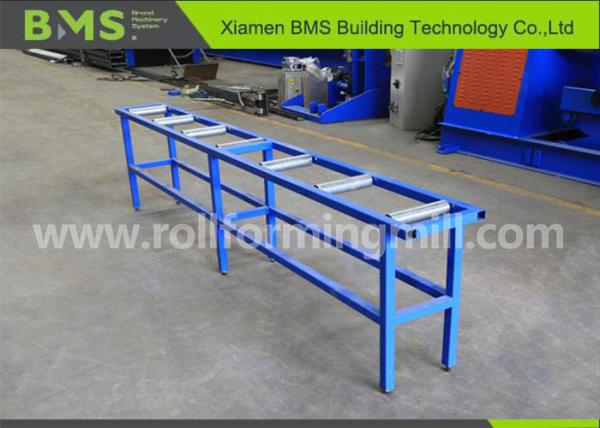

3) Run Out Table

Shelf C Beam Seaming To Box Beam Roll Forming Machine YX50-100/160

Packing Style


Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

Shelf C Beam Seaming To Box Beam Roll Forming Machine YX50-100/160


After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms Of Trade
1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 80 countries and regions, including South Korea, Taiwan, UK, Australia, USA, Mexico, Brazil, Russia, Saudi Arabia, UAE, Iran, India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt. With us your money in safe, Your Business in Safe.
