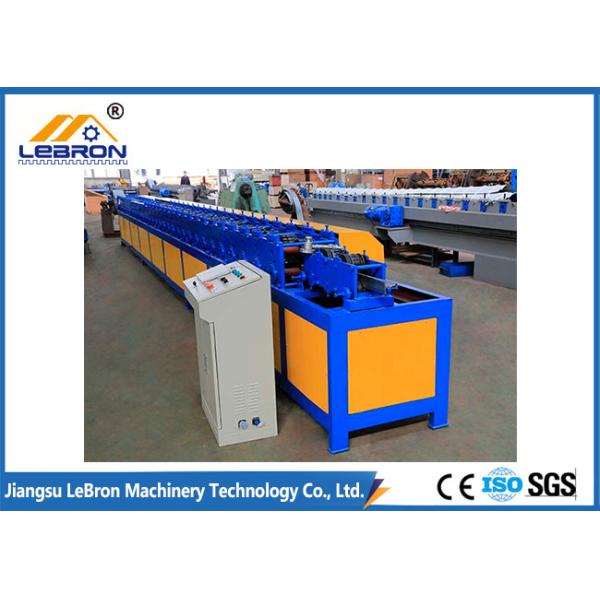

PLC control automatic door frame roll forming machine high precision and smooth
PLC control automatic door frame roll forming machine high precision and smooth
PLC control automatic door frame roll forming machine high precision and smooth
PLC control automatic door frame roll forming machine high precision and smooth
PLC control automatic door frame roll forming machine high precision and smooth
PLC control automatic door frame roll forming machine high precision and smooth
Specifications
Brand Name :
LBM
Model Number :
LBM-DFM-Model03
Certification :
ISO 9001: 2008
Place of Origin :
Jiangsu, China
MOQ :
1 Set per Month
Price :
USD 12000 ~ USD 15000 per Set
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
30 Sets per Month
Delivery Time :
30 days
Packaging Details :
Export sea worthy packing with each machine tied and protected in the container
Size :
Approx 10.0m*1.0m*1.4m (L*W*H)
Weight :
Approx 6 tons
Suitable material :
GI, GL strip
Roller quantity :
20~22 stations
Roller material :
45# steel, coated with chrome, quenched
Shaft diameter :
Dia 75mm
Forming speed :
10~15m/min
Cutter material :
Cr12 mould steel, with quenched treatment
Description

PLC control automatic door frame roll forming machine high precision and smooth

1. Description of Door Frame Forming Machines

LBM factory is manufacturing the high quality door frame machines, and they are mostly exported to the foreign countries, such as India, Angola, Ethiopia, Ghana, Zambia, Brazil, Argentina, Thailand, Philippines, Pakistan, Russia, etc.

This door frame roll forming machine can produce various kinds of roll forming metal door or window frames.

The punching also can be designed according to your needs. After roll formed by this door roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

PLC control automatic door frame roll forming machine high precision and smooth

2. Technical Parameters of Door Frame Roll Forming Machine

Machine Specifications
Weight About 6000kgs
Size About 10.0m*1m*1.4m (L x W x H)
Color Main color: Blue
Warning color: Yellow
Suitable Raw Material
Material Galvanized steel strip
Thickness 0.8~1.2mm
Coil width 240mm
Yield strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 20 ~ 22rows
Diameter of forming rollers shafts 75 mm
Roll Forming Speed 10-15m/min
Production Speed Approx. 8m/min
Forming rollers material 45# steel, coated with chrome, quenched
Cutter material Cr12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric power requirement Main motor power: 7.5 Kw
Hydraulic unit motor power: 4 kw
Electric voltage 380V 50Hz 3 Phase (as per local requirement)
Main Components
Manual Decoiler 1 Set
Guiding Device 1 Set
Roll Forming System 1 Set
Hydraulic Cutting 1 Set
PLC Control Cabinet 1 Set
Hydraulic Station 1 Set
Receiving Table 2 Sets

PLC control automatic door frame roll forming machine high precision and smooth

PLC control automatic door frame roll forming machine high precision and smooth

3. Door Frame Sketch

PLC control automatic door frame roll forming machine high precision and smooth

5. After Sale Service

Install and Training:

If buyers come to our factory to inspect, the training to install and operate is provided face to face.

If not, manual and video is provided to show how to install and operate.

After-sale Service:

We provide 12-hour online service for our customers. Phone: +86 15821208506

a .The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.

When technique men go to the buyer's place to debug the machines, the buyer should pay the

expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.

b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
