Specifications
Brand Name :
LBM
Model Number :
LBM-DSM-Model 02
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
1 Set
Price :
USD 5000-20000 per Set
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
25 days
Packaging Details :
Export sea-worthy packing with each machine tied and protected in the container (40gp')
Weight :
About 10tons
Size :
About 22mx2.2mx1.3m(Length*Width*Height)
Roller stations :
12-14 stations
Diameter of forming rollers shafts :
60mm
Roll Forming Speed :
15-20m/min
Forming rollers material :
No.45 steel, coated with chromed treatment
Controlling system :
PLC and Converter
Main motor power :
5 Kw
Installation :
Technicians can go to your place to make the installation
Warranty period :
18 months
Description

Export sea-worthy packing door shutter roll forming machine with easy control high hydraulic

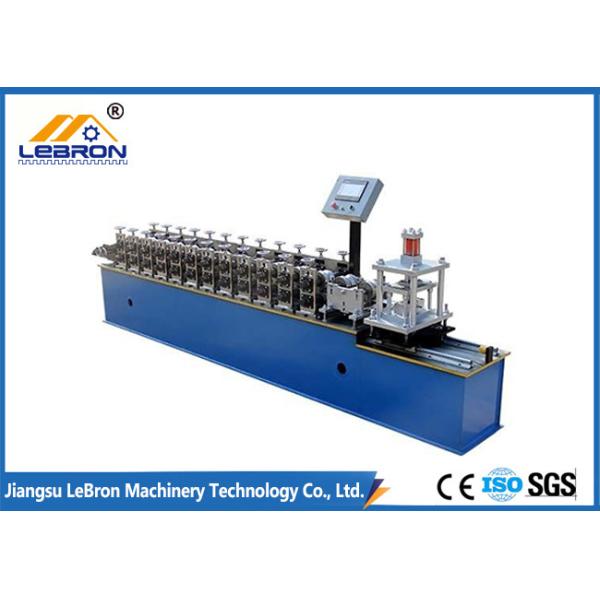

1. Description of door shutter roll forming machine:

For the rolling shutter strip making machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.3-1.4mm, the shape will be design by your demand.

LBM is manufacturing high quality guardrail roll forming machines, and regularly exported to Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.

Export sea-worthy packing door shutter roll forming machine with easy control high hydraulicExport sea-worthy packing door shutter roll forming machine with easy control high hydraulicExport sea-worthy packing door shutter roll forming machine with easy control high hydraulic

2. Technical details of door shutter roll forming machine:

Machine Specifications
Weight About 10tons
Size About 22mx2.2mx1.3m(length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.3-0.6mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 12-14
Diameter of forming rollers shafts 60mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 3kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement

3. Main components of door shutter roll forming machine

Decoiler 1 Set
Guiding Equipment 1 Set
Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
PLC Control System 1 Set
Reveiving Table 1 Set

Export sea-worthy packing door shutter roll forming machine with easy control high hydraulic

4. Production Flows:

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5. Advantages:

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 22 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 3 years maintenance and whole life technical support

6. Application:

This machine is widely used in the production of the door shutters.

Export sea-worthy packing door shutter roll forming machine with easy control high hydraulic
