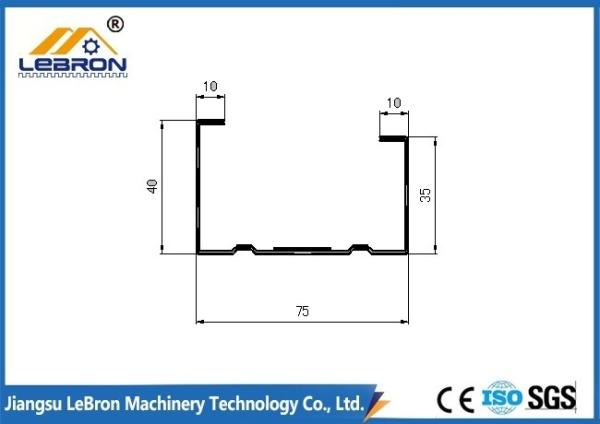

Light steel keel metal profiles roll forming machine C channel roll former
Light steel keel metal profiles roll forming machine C channel roll former
Light steel keel metal profiles roll forming machine C channel roll former
Light steel keel metal profiles roll forming machine C channel roll former
Light steel keel metal profiles roll forming machine C channel roll former
Light steel keel metal profiles roll forming machine C channel roll former
Specifications
Brand Name :
LBM
Model Number :
LBM-MEM-Model 06
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1 Set
Price :
USD 10000-30000 per Ton
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
25 Set per month
Delivery Time :
25-30 working days
Packaging Details :
Standard export packing with each machine tied and protected in the container
Size :
10m x 1.5m x 1.0m (Legth*Width*Height)
Weight :
About 5000 Kg
Color :
Blue and Yellow, Custom
Forming roller station quantity :
26 rolls
Forming roller shaft diameter :
60mm
Roll forming speed :
10-15m/min
Warranty period :
18 months
Installation :
Our technicians can be available to installation at your location
Value-add service :
Free accessories can be offered to you during the warranty period
Description

Light steel keel metal profiles roll forming machine C channel roll former

1. Description of mental profiles roll forming machine:

LBM Company according to the different industrial usage to produce the different metal profiles roll forming machines. The products produced by the machine including decoration buckles, light-gauge steel joists, shelf columns, door frame parts and other profiled accessories.

LBM factory is manufacturing high quality metal profiles roll forming machines. The roll forming machines mostly exported to Australia, India, Singapore, Iran, Croatia, South Africa, Saudi Arabia, Russia, Indonesia, Malaysia, Thailand, etc.

2. Technical details of metal profile roll forming machine

Suitable Raw Material
Material GI and GL coils
Thickness 1.0-2.0mm
Coil width 333mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 26
Diameter of forming rollers shafts 60mm
Roll Forming Speed 10-15m/min
Forming rollers material CR12 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5.5kw
Electric voltage According to customer’s requirement

3. Main componets of metal profiles roll forming machine

Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Roll Forming system 1 set
PLC control box 1 set
Hydraulic unit 1 set
Run outs tables 1 set

Light steel keel metal profiles roll forming machine C channel roll formerLight steel keel metal profiles roll forming machine C channel roll formerLight steel keel metal profiles roll forming machine C channel roll former

4. Our Advantages:

Design Germany COPRA software design
Engineer 5 engineers with more than 20 years experience
Technician 30 professional technician
Facility 22 sets advanced CNC production lines on site
Team Passionate Team
Service Installation engineers can reach your factory within 6 days
Warranty 3 years maintenance and whole life technical support
After service 24 hours professional service tem

5. Applications:

This machine is widely used in the production areas such as construction decorations, doors manufacturing, shelf fabrication, logistics, etc.

Light steel keel metal profiles roll forming machine C channel roll former

6. Contact Us

Jiangsu LeBron Machinery Technology Co., Ltd.

Factory address:

No. 551, the Zhenze West Road, Huazhuang Street, Binhu Distrct, Wuxi City, Jiangsu Province, China

Telephone: +86-510-8202 1910

Company address:

1604#, Yangming Sicence & Technology Industry Center, No.855 Nanhu Avenue,Wuxi city, Jiangsu, China

Zip Code: 214000

Telephone: +86-510-8388 8805

Fax: +86-510-8262 0085

Contact Person:

Alfred (Manager)

Cell/Whatsapp/Skype: +86-15821208506

Email: alfred@lebron-machinery.com

Website: www.lebron-machinery.com
