Steel Corrugated Panel / Steel Silo Corrugated Sheet Roll Former Machine 10m/min
Steel Corrugated Panel / Steel Silo Corrugated Sheet Roll Former Machine 10m/min
Steel Corrugated Panel / Steel Silo Corrugated Sheet Roll Former Machine 10m/min
Steel Corrugated Panel / Steel Silo Corrugated Sheet Roll Former Machine 10m/min
Steel Corrugated Panel / Steel Silo Corrugated Sheet Roll Former Machine 10m/min
Steel Corrugated Panel / Steel Silo Corrugated Sheet Roll Former Machine 10m/min
Specifications
Place of Origin :
China
Brand Name :
Friendship
Certification :
ISO
MOQ :
One set
Price :
as per client requirements
Packaging Details :
plastic film or wooden case
Delivery Time :
30-60days
Payment Terms :
T/T or LC
Supply Ability :
100 sets per months
Description

Steel Corrugated Panel / Steel Silo Corrugated Sheet Roll Former Machine 10m/min

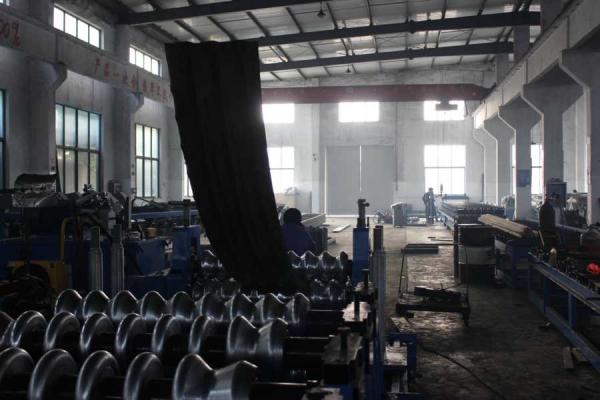

Main Specifications of Steel Silo Corrugated Wall Panel Roll Forming Machine

  • Suitable material: Galvanized sheet, Zinc Alumina sheet
  • Material yield strength:550Mpa
  • Material thickness: 1-4.0mm
  • Max. Feeding coil width: 1250mm
  • Machine working speed: 4-8m/min
  • Forming station: approx 18 stations
  • Size of roll shaft: Ф120mm
  • Roller material: GCr15, quenching HRC 58-62 °
  • Total power: approx 180KW
  • Power supply: AC440V+/-10%, 50Hz, 3 Phase
  • Whole line dimention: about 35M X 4.5M ( L X W )
  • Installation height: 4.5m
  • Total weith of machine: approx 70 tons

Working Flow

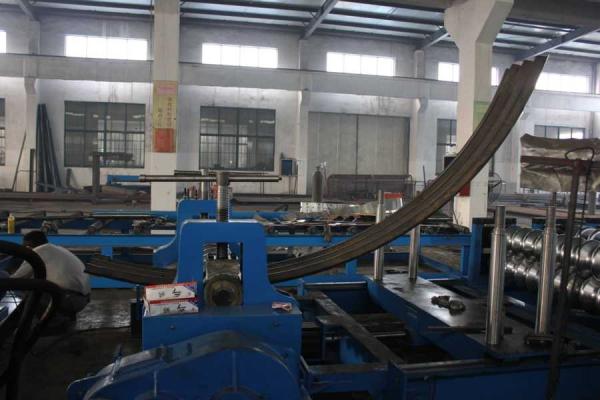

Hydraulic decolier---- feeding& guiding----leveller ---- post cutting---- rollforming----hydraulic punching----hydraulic curving---- hydraulic cutting----run out

Application:


Steel silo corrugated sheet, steel silo corrugated panel, silo wall sheet, silo corrugated wall sheet, silo wall panel, silo corrugated wall panel, silo side panel, steel corrugated sheet, steel corrugated wall panel, steel corrugated panel
