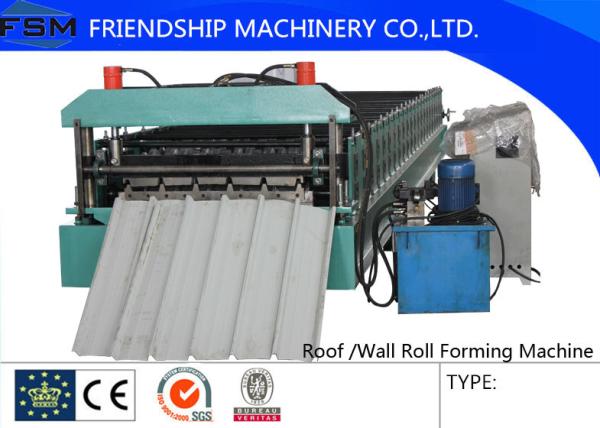

Roof Roll Forming Machinery 0-20m/min

7.5 KW Main Power And Siemens Control Panel

Character of main structure

• Machine should be have base screw to fix machine in the floor,it can adjust the leveling.
• Machine should be have moving switch (it is for easy make machine to moving)
• Machine frame: H beam structure, thickness in 25mm, material is Q345
• The surface of the complete machine should be perfect.
• Machine should be having protected film device.
• The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
• All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
• We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
• It is very easy to install the equipment and suitable for producing in the factory.
• The machine has features of low noise and high efficiency.

Technical specification

Cutting process

• Motorized Pre-cutting: It is used when changing the coil of raw material; it can cut the coil rapidly and time-saving.
• Cutting after forming: Cut the sheet after roll forming to required length
• Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
• Material of blade: SKD11 with heat treatment
• Length measuring: Automatic length measuring
• Tolerance of length: 3m+/- 1.5mm

12m auto stacker

• Run out motor power:0.75KW
• Max speed:36m/min
• Max stacking length : 12m
• Max stacking thickness:300mm
• Max stacking weight: 2 tons
• Frequency unit imported from Korea LG
• Computer PLC .modles7-200, Siemens
• Computer operation screen is TD200 from Siemens

Composition of machine

Technological process

Decoiling—feeding—roll forming----make logo and cut to length—product packing
manual

Profile:(Basis on customer’s require to design)

Some pictures of machine

Introduction of company

We, Friendship Machinery Co.,Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.China leading expert in designing and manufacturing equipments for welding and cutting, automation system and metal works. We use and produce high-technology utilizing the most available robotic and automatic techniques. Every work is uncompromisingly designed to improve our clients' competitiveness and productivity.

We invest more on developing roll forming machine such as Metal roof & wall panels machines,C&Z purlin machines drywall Stud-track forming machines,Metal decks machines,No-girder and Column curves forming machine,Guard rails forming machines,Downspout pipes forming machines and so on.With fast development ,very short period for construction and beautiful external appearance,as well reasonable price was occupied in the market of building industry.
