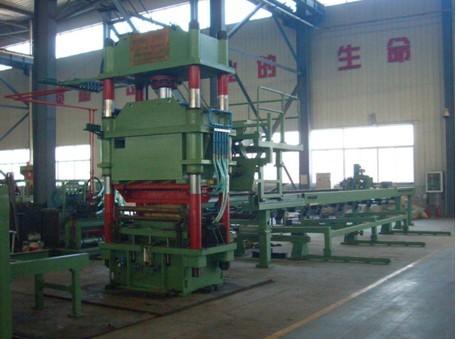

Four-cylinder Steel Grating Welding Press / Roll Forming Machines
Four-cylinder Steel Grating Welding Press / Roll Forming Machines
Specifications
Place of Origin :
China
Brand Name :
FSM Machinery
Model Number :
GYH
MOQ :
1
Packaging Details :
Standard Packing
Delivery Time :
45 working days
Payment Terms :
TT, L/C
Supply Ability :
5 sets per month
Description

Four-cylinder Steel Grating Welding Press / Roll Forming Machines

Features:

Welding power supply with single-phase AC power input, AC output. Equipment consists of flat steel feeding device, bonding the host, Gentiana steel blanking device, pull the net mechanism, hydraulic stations, control systems, pneumatic systems, water cooling loop and wooden combs and so on.
Manual adjustment of automatic welding distortion correction;
Division Multi-set welding parameters, all parameters set through the intelligent touch screen, and stored in the PLC control system;
Control console with manual and automatic mode selection;
Control cabinet with a current, voltage display;
Technical parameters

Model

Project

GYH-1000-2A

GYH-1250-2A

Welding power

Control Type

AC frequency

AC frequency

Welding capacity kVA

1000kVA

1250kVA

Welding voltage

Single-phase380V/50Hz

Single-phase380V/50Hz

Production of grating specifications

Grating length

6000mm(Customizable)

6000mm(Customizable)

Grating width

1000mm(Customizable)

1000mmv

Flat pitch

30,40mm(Customizable)

30,40mm(Customizable)

Each bar maximum contact area and load flat steel

1250mm2

1500mm2

Load Specifications

Width for flat steel

25--65mm

25--65mm

For flat steel thickness

3--6mm

3--6mm

Bar size

5×5,6×6

5×5,6×6

Equipment function

The form of hydraulic pressure welding host

Four-cylinder

Four-cylinder

The number of each welding bar

2

2

Maximum pressure bonding host

100T

100T

Load flat steel feeding mode

Automatically sent to manual positioning

Automatically sent to manual positioning

Admitted to bar mode

Automatically sent automatically aligned

Automatically sent automatically aligned

Welded steel grating step approach

Linear pull nets

Linear pull nets











Product tags

welded steel grating

,

grating welding machine

,

grate welding machine
