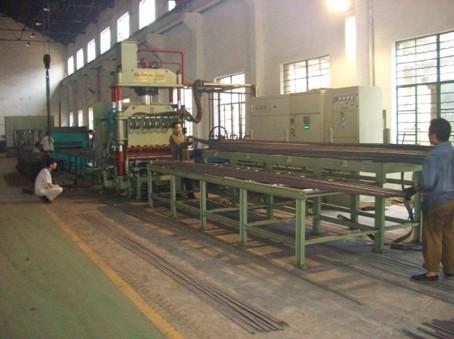

Four-cylinder 75T Roll Forming Machinery , Manual Positioning welder
Four-cylinder 75T Roll Forming Machinery , Manual Positioning welder
Specifications
Place of Origin :
China
Brand Name :
FSM Machinery
Model Number :
GYH-800
MOQ :
1
Packaging Details :
Standard Packing
Delivery Time :
45 working days
Payment Terms :
TT, L/C
Supply Ability :
5 sets per month
Description

Four-cylinder 75T Roll Forming Machinery , Manual Positioning welder

Features:
Three-phase AC welding power supply input, the inverter controller and inverter for the single-phase AC power output through the single-phase step-down transformer provided after welding the welding current, welding pressure to solve the single-phase AC power supply problems and avoid power imbalance. Equipment from the flat on the feeding device, the former enter the body, pressure welding host, twist steel blanking device, correctional institutions, output roller, hydraulic stations, control systems, pneumatic systems, water cooling circuit and combs etc.
lefficient energy-saving, efficiency can reach 80% - 90% energy saving than the traditional press welder 1 / 3;
lthe welding inverter main circuit control methods used to effectively improve the power factor of the equipment, if not configure a dedicated power factor compensation device, and also can supply the power factor greater than 0.9;
lembedded single chip inverter control, simple and reliable anti-interference performance;
lthe inverter power supply modular structure, each module unit output power of 115KVA, so easy maintenance.
lmanual adjustment of automatic welding distortion correction;
lMulti-Section setting welding parameters, all parameters set through the intelligent touch screen, and stored in the PLC control system;
lcontrol console with manual and automatic mode selection;
Technical parameters

Model

Project

GYH-630-2A-1

GYH-800-2A-1

Welding power

Control Type

CNC conversion

CNC conversion

Welding capacity kVA

630kVA

800kVA

Welding voltage

3-phase 380V/50Hz

3-phase 380V/50Hz

Production of grating specifications

Grating length

6000mm(Customizable)

6000mm(Customizable)

Grating width

1000mm(Customizable)

1000mm(Customizable)

Flat pitch

30,40mm(Customizable)

30,40mm(Customizable)

Each bar maximum contact area and load flat steel

800mm2

1000mm2

Load Specifications

Width for flat steel

20--60mm

20--60mm

For flat steel thickness

2--4mm

2--5mm

Bar size

5×5,6×6

5×5,6×6

Equipment function

The form of hydraulic pressure welding host

Four-cylinder

Four-cylinder

The number of each welding bar

2

2

Maximum pressure bonding host

75T

75T

Load flat steel feeding mode

Manual Positioning Manual sent

Manual Positioning Manual sent

Admitted to bar mode

Automatically sent manually aligned

Automatically sent manually aligned

Welded steel grating step approach

From the manner set forth

From the manner set forth
