45 # Steel And HRC 58 - 62 K Span Roll Forming Machinery With Vechicle
45 # Steel And HRC 58 - 62 K Span Roll Forming Machinery With Vechicle
45 # Steel And HRC 58 - 62 K Span Roll Forming Machinery With Vechicle
45 # Steel And HRC 58 - 62 K Span Roll Forming Machinery With Vechicle
Specifications
Place of Origin :
China
Brand Name :
Friendship
Certification :
ISO
MOQ :
One set
Packaging Details :
plastic film or wooden case
Delivery Time :
15 working days
Payment Terms :
T/T or LC
Supply Ability :
100 sets per month
Description

45 # Steel And HRC 58 - 62 K Span Roll Forming Machine With Vechicle

Features of machine

  • All the rollers are forged form the high quality structural steel and are processed intensely. The surfaces of the rollers are plated with hard chromium. The rollers have a high hardness and long operating life.
  • The power set to automatically transport the colored steel sheet is equipped in the forming press section which can press the colored steel sheet with the thickness of 0.6-2.5mm. It is not needed to frequently adjust the clearance between the pressing rolls when pressing the sheet with different thickness which can make the sheet come out from machine is very simple. But the quality of the finished product can be guaranteed.
  • The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument .The helping hand wheel and the counter are used in the adjustment of the bending of arch sheet ,which makes the operation simple and guarantees the quality and the dimensional precision.

Main technical parameter

Item Description
Size 9000mm × 2250mm × 2300mm
Total Weight about 23000KG
Main Motor Power 39KW
Forming power 15kw
Bending power 10kw
Cutting power 10kw
Conical power 4.0kw
Working Speed

 Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 6m/min
Material of rollers 45# steel, quenched HRC 58-62
Material of roller shafts 45# steel, quenched HRC 58-62
Dia of shaft 90mm
Material of cutting blade Cr12 steel (Taiwan Airline Technique)
PLC Type OMRON JAPAN BRAND
Step of rollers 14 steps
Feeding Width 914mm
Effective Width 610mm
Thickness of the coil 0.6-2.5mm
Gear/Spoket driving 14 stations to form
Electric Standard 380V / 50 HZ / 3 PHASE
Type of cutting Roll-formed and length-set cutting
Ship Container 40HC x 1
Operating factor of the panel 66%
Proper span ≤40m
Bending leaf 30mm stainless
Side frame thickness 35mm

Main component

NO. Name Unit Qty
1 Manual decoiler7T Set 1
2 Roll forming machine(including curving machine) Set 1
3 Electric control cabinet Set 1
4 Run out table Set 1

Working flow

Uncolier----Feeding and straight---- Rollforming-Hydraulic cutting -----Mechanisim curving----Sealing

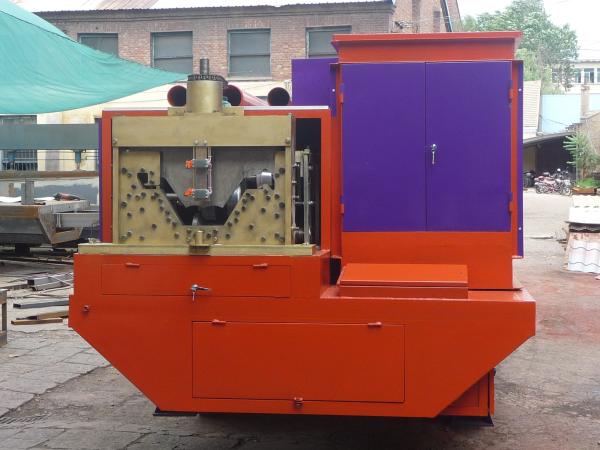

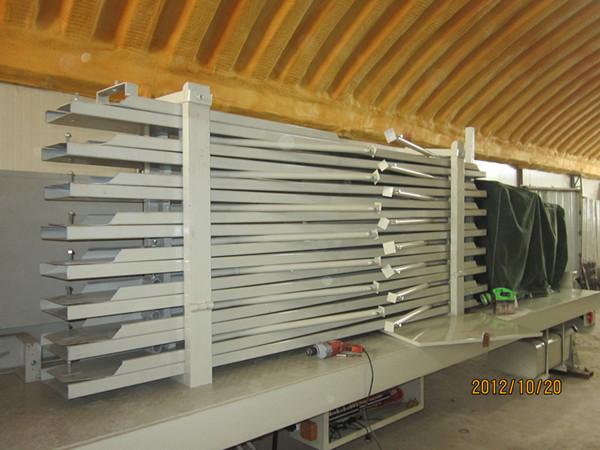

Pictures of machine

45 # Steel And HRC 58 - 62 K Span Roll Forming Machinery With Vechicle45 # Steel And HRC 58 - 62 K Span Roll Forming Machinery With Vechicle
