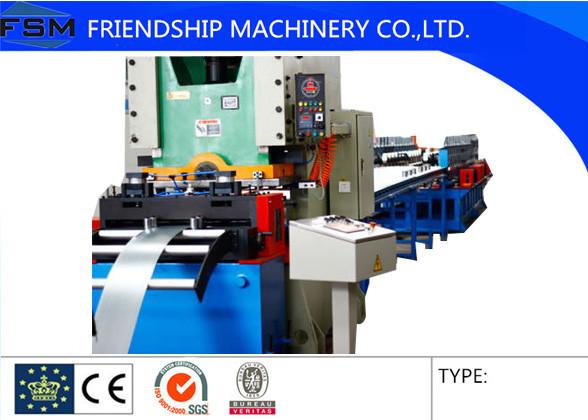

380V 50HZ 3Phases Cable Tray Roll Forming Machine For 1.5-2.0mm Thickness Colored plate
380V 50HZ 3Phases Cable Tray Roll Forming Machine For 1.5-2.0mm Thickness Colored plate
Specifications
Price :
as per client requirements
MOQ :
One set
Packaging Details :
plastic film or wooden case
Payment Terms :
T/T or LC
Supply Ability :
100 sets per months
Place of Origin :
China
Brand Name :
Friendship
Certification :
ISO
Delivery Time :
30-60days
Description

380V 50HZ 3Phases Cable Tray Roll Forming Machine

For 1.5-2.0mm Thickness Colored plate

Introduction of Cable tray making machine

  • Condition: New
  • Tile Type: Colored Steel
  • Use: tray Production
  • Capacity: 5-15m/min
  • Power(W): 11 kw
  • Voltage: 380V
  • Dimension(L*W*H): 13.0*1.5*1.2m
  • Weight: 7.8T
  • Warranty: 12 months After-sales
  • Service Provided: Engineers available to service machinery overseas
  • Color: blue (Or according to the customer required)
  • Control: PLC control
  • Raw material thickness: 1.5-2.0mm steel, color steel, GI
  • Equipment components: Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting
  • Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.


Specifications technical of machine

NO. Main parameter of roll forming machine
1 Suitable to process Color steel plate
2 Width of the place 500-1000mm
3 Rollers 18 stations
4 Dimensions 13*1.5*1.2m
5 Power 11KW
6 Thickness of the plate 1.5-2.0mm
7 Speed of machine 5-12m/min
8 Diameter of the roller 80mm
9 Weight About 7.8T
10 Voltage 380V 50HZ 3Phases
11 Rolling material Carbon Steel 45#
12 Material of the cutting plate Cr12
13 Processing precision Within 1mm
14 Control system PLC control


Our advantages of machine

  • More than 10 years life
  • Size 13.0*1.5*1.2m
  • 12 months guarantee
  • Good quality, lowest price.

Introduction of company

We, Friendshachinery Co., Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.Our manin products: Metal roof &wall panels machines, C&Z purlin machines drywall Stud-track forming machine,Metal decks machines,No- girder and Column curves forming machines,Guard rails forming machine,Downspout pipes forming machines and so on.

We can customize forming machine according to user's requirements.And we can provide professinal service,high quality,through design,and installation.

Warmly welcome to visit our factory no matter you are distibuters or end-users,and looking forward to cooperating with you for mutual benefits.
