Specifications
Place of Origin :
CHINA
Brand Name :
FSM MACHINERY
Certification :
CE,ISO
MOQ :
one set
Price :
As per client requirements
Packaging Details :
Plastic film or wooden case
Delivery Time :
30 working days
Payment Terms :
T/T or LC, T/T, Western Union, MoneyGram
Supply Ability :
25 sets per month
Model Number :
FSM-103
Material :
color steel
Thickness :
1.0-2.0mm
Power :
380v
speed :
3-5m/min
weight :
10ton
Punching :
automatic punching holes
Description

1.0-2.0mm Thickness 4 - 6m/min Speed Shelf Rack Roll Former Machine with 15 Forming Station

Forming machine parameter:

Forming Stations: 15 Stations
Roller material: Gcr 12 bearing steel
Shaft diameter: Ø55 mm
Drive type:chain
hydraulic mold numbers :1 set
Punching mold number : 3 sets
Machine forming speed:4-6 M/min
Motor :380 voltage ,3 phase
Main Motor power: 11 kw*2 sets
Hydraulic station : 5.5kw
Working area occupy : about 25m*1.5m*1.2m
Weight :about 8 tons

Machine working flow:

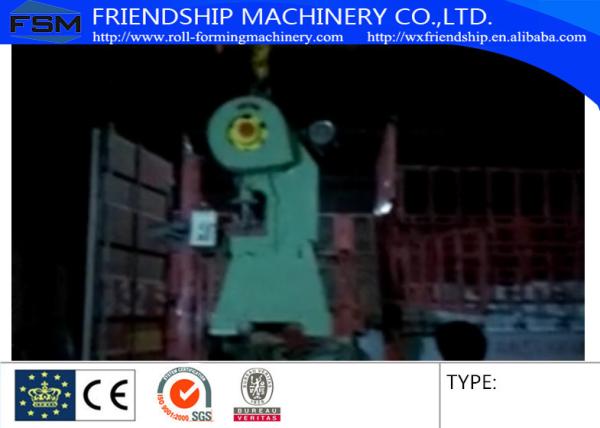

3 sin1feeding machine---> mechanical press machine(120 tons)--> hydraulic cutting device ---> Roll Forming Machine —>—>Product Stand Tables

Composition of machine:

NO. Name Unit Qty
1 Roll forming main machine Set 1
2 Manual Uncoiler Set 1
3 Control panel Set 1
4 Hydraulic station Set 1
5 Manual out table Set 2
6 Spare tools Box 1

The productions of machine:

1.0-2.0mm Thickness 4 - 6m/min Speed Shelf Rack Roll Former Machine with 15 Forming Station

1.0-2.0mm Thickness 4 - 6m/min Speed Shelf Rack Roll Former Machine with 15 Forming Station

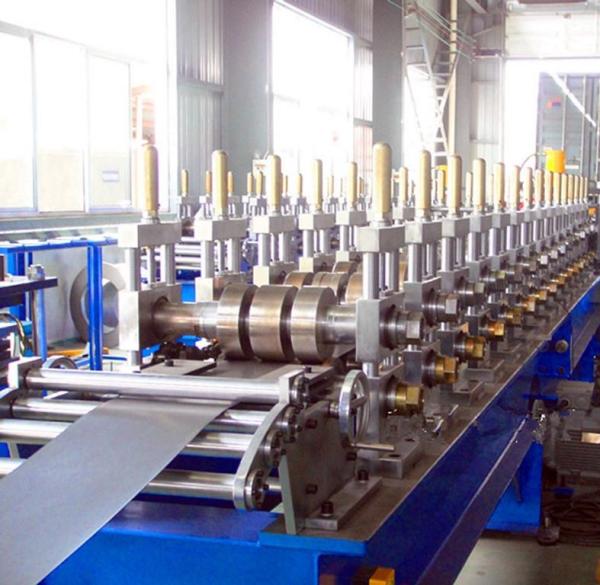

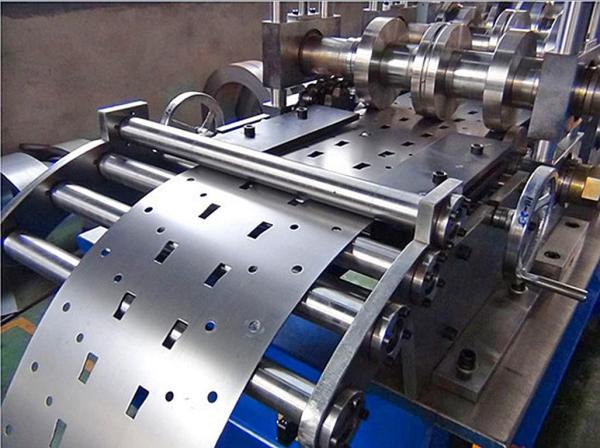

Pictures of machines:

1.0-2.0mm Thickness 4 - 6m/min Speed Shelf Rack Roll Former Machine with 15 Forming Station

1.0-2.0mm Thickness 4 - 6m/min Speed Shelf Rack Roll Former Machine with 15 Forming Station

Roll forming machine:

Roll forming machine line with galvanized steel plate color or different color steel or aluminum as raw materials, production of products used in the roof of the building external plate and wall board, increase their roofs or walls of aesthetics and durability. The limitation of length of the line is not production, but according to construction requirements set many different sets of data on the computer controller, a key, after the "confirmation" equipment automatically according to the data of computer produce different length of the finished product. Through the production lines of the surface of the finished product level off is smooth, level off, without scratches, is advantageous for the construction of the installation. Products meet the national steel structure building standards.

Introduction of company:

We, Friendship Machinery Co.,Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.China leading expert in designing and manufacturing equipments for welding and cutting, automation system and metal works. We use and produce high-technology utilizing the most available robotic and automatic techniques. Every work is uncompromisingly designed to improve our clients' competitiveness and productivity.
We invest more on developing roll forming machine such as Metal roof & wall panels machines,C&Z purlin machines drywall Stud-track forming machines,Metal decks machines,No-girder and Column curves forming machine,Guard rails forming machines,Downspout pipes forming machines and so on.With fast development ,very short period for construction and beautiful external appearance,as well reasonable price was occupied in the market of building industry.
