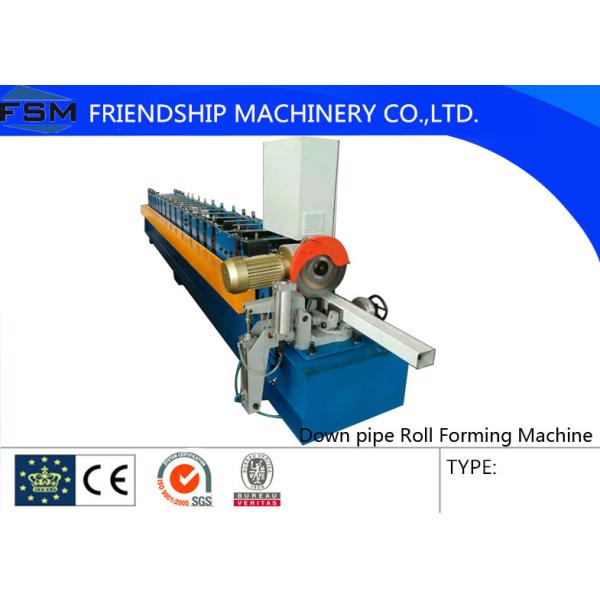

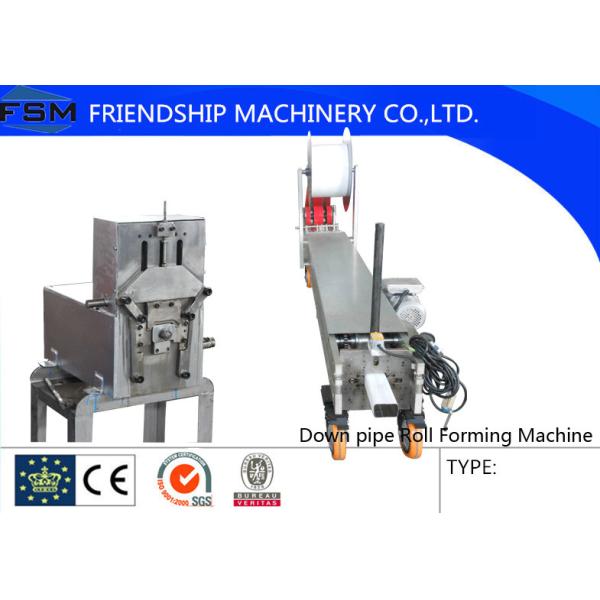

Round / Square Downspout For Rainwater , Downpipe Roll Forming Machine,Portable

This machine was orginally designed by American famous engineer and made in our factory for first time.

Technical Parameter:

Working Flow:

Passive decoiler---- feeding & guiding---- roll forming--- straightening-- hydraulic cutting---run out table

Application:

downspout, rainspout,Rainwater downpipe, drainpipe, water pipe

Pipe Size:

2"x 3" , 3" x 3" ,3"x 4" Rectangle

3" Round, 4" Round

CUSTOM

(Each machine make one size only)

Speed:Standard 30 ft./min.

Material:

Aluminum .019 - .024 in.

Steel 29 - 26 ga.

Copper 16 oz.

Warranty:

1 year limited warranty

Spools:

One 15" I.D. spool included

Electrical:

110 volt or 220 volt (1phase),Or industry power supply 3 phases

ON/OFF switch

Forward/Reverse switch

Entrance JOG button

Models:

Portable or stationary

Semi-automated: length control with limit switch

Drive System:

Urethane top and bottom drive rollers

for smooth even, non-twisting drive

Frame:

1"x 5" Aluminum side blocks

Cutoff Mechanism:

Standard: Cut off Saw.

Or Hand operated Quadra-shear with built-in crimper add USD 1500

Enterprises Introduction

We, Friendshachinery Co., Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.Our manin products: Metal roof &wall panels machines, C&Z purlin machines drywall Stud-track forming machine,Metal decks machines,No- girder and Column curves forming machines,Guard rails forming machine,Downspout pipes forming machines and so on.

We can customize forming machine according to user's requirements.And we can provide professinal service,high quality,through design,and installation.

Warmly welcome to visit our factory no matter you are distibuters or end-users,and looking forward to cooperating with you for mutual benefits.
