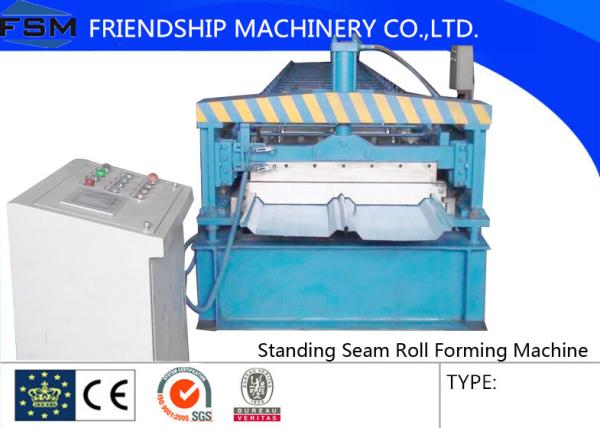

7.5kw Standing Seam Roll Former Machine Galvanized Steel With 3 Phase
7.5kw Standing Seam Roll Former Machine Galvanized Steel With 3 Phase
7.5kw Standing Seam Roll Former Machine Galvanized Steel With 3 Phase
7.5kw Standing Seam Roll Former Machine Galvanized Steel With 3 Phase
Specifications
Place of Origin :
China
Brand Name :
Friendship
Certification :
ISO
MOQ :
One set
Price :
as per client requirements
Packaging Details :
plastic film or plywood box
Delivery Time :
60days
Payment Terms :
T/T or LC
Supply Ability :
20 sets per months
Motor :
Motor
speed :
15m/min
Thickness :
0.8-1.2mm
Description

7.5kw Standing Seam Roll Former Machine Galvanized Steel With 3 Phase

Features

This producing line uses galvanized steel sheet, colored armor plate or aluminum plate as the

material plate.

The products of it are used as the roof tile and wall panel outside of building, to increase the

beauty and durability of the roof tile and wall panel. This line has no limit on processing length; you

can set several different data on the computer control cabinet according to your own need. After

pressing the button "Confirm", the machine can produce the panel automatically according to the

set data. The molding plate surface smooth and not easy to be marked when it is being stamped

So it is easy to install.

Technical parameter:

Name

Item

Specification

Coil requested

Material

galvanized steel

Thickness

0.8-1.2mm

Tensile strength

235Mpa

Decoiler(1 unit)

Type and weight capacity

Manual decoiler, 5T

Inner diameter

498-508mm

Outer diameter

Max:1800mm

Rollforming machine

(1 unit)

Rolling speed

15m/min

Motor

7.5KW, 3phase, 60Hz, 380V

Rolling step

17

Driving system

Chain transmission

Structure of machine body

Entire wall steel structure

Material of roller

45# steel, chromed thickness0.05mm

Diameter of shaft

80mm

Dimession

Abt.13m*1.8m*1.6m

Weight

Abt.13T

Electric control cabinet

(1 unit)

Main component

PLC, frequency convertor, touching screen, encoder

Cutting and length measurement

Automatic stop to cut, encoder

Brand

From Japan, can be chosen by client

Hydraulic station (1 unit)

Power and strength

3.5KW, 16Mpa

Cutting machine(1 unit)

Material of blade

GCr12 mov steel, heatment and hardness up to HRC58-62

Cutting type

Hydraulic cutting

Run out table

(1 unit with 4pics)

Size

1.2m*0.7m*1.2M

Working flow:

Manual decoiler----Feeding&guiding----Rollforming----hydraulic cutting----Run out table

Application:

7.5kw Standing Seam Roll Former Machine Galvanized Steel With 3 Phase

  • The roof panel used as the roofing of factory, garage,warehouse, reliable and safety installation is easy to realize.
  • Good toughness: with super toughness, Tere is no necessary to do any treatment amontg the nail hole, it is sealing and can prevent leaking water.
  • Long life: life ≥ 25 years, is an alternative to steel tile.
  • Corrosion resistance: strong acid, alkali, salt, anti-static, anti-vapor corrosion, etc.
  • Noise performance: noise performance is good, away from the noise.
  • The appearance of the shape: colorful. color, length can be arbitrarily chosen.
