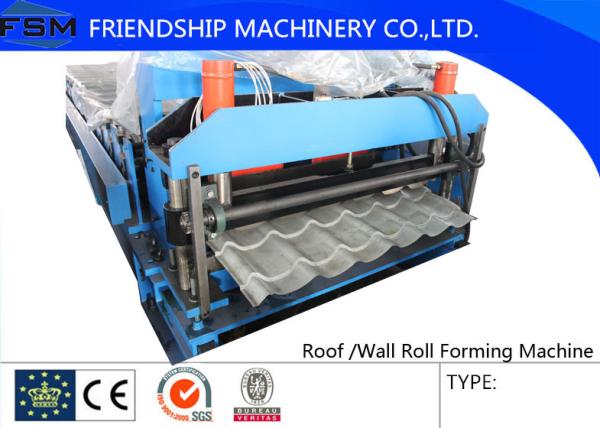

Color And Galvanized Steel G550 Roof Roll Forming Machinery

12m/min - 15m/min

Character of main structure

• Machine drive part adopt protect cover
• Machine adopt new station with chrome
• Machine has press system to produce tile panel press mould: Cr12
• Machine should be with four legs (made from metal) in 350mm
• The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
• All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
• We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
• It is very easy to install the equipment and suitable for producing in the factory.
• The machine has features of low noise and high efficiency.

Technical specification

Un-coiler

• Loading of hydraulic decoiler:7t
• Dimensions: 2000mm*1700mm*1000mm
• Width of feeding: 1300mm
• Capability: 6Ton
• Bound of expand &fight: 460mm—540mm
• Diameter of shaft: 160mm
• Motor power: 5.5KW
• Hydraulic power: 4KW
• Mode of expand &fight: inner expand &fight by hydraulic
• Speed: 0-25m/min adjustable which control by loop

Composition of machine

Technological process

Decoiling—feeding—guide---roll forming----cut to length—product packing manual

Profile Drawing:(Basis on customer’s require to design)

Introduction of company

We, Friendship Machinery Co.,Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.China leading expert in designing and manufacturing equipments for welding and cutting, automation system and metal works. We use and produce high-technology utilizing the most available robotic and automatic techniques. Every work is uncompromisingly designed to improve our clients' competitiveness and productivity.

We invest more on developing roll forming machine such as Metal roof & wall panels machines,C&Z purlin machines drywall Stud-track forming machines,Metal decks machines,No-girder and Column curves forming machine,Guard rails forming machines,Downspout pipes forming machines and so on.With fast development ,very short period for construction and beautiful external appearance,as well reasonable price was occupied in the market of building industry.
