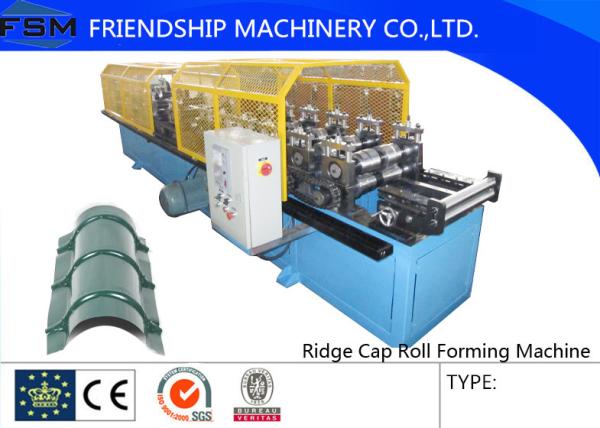

14 Stations Ridge Cap Roll Forming Machine For Cinema / Theatre / Garden
14 Stations Ridge Cap Roll Forming Machine For Cinema / Theatre / Garden
Specifications
Place of Origin :
China
Brand Name :
Friendship
Certification :
ISO
MOQ :
One set
Price :
as per client requirements
Packaging Details :
plastic film or wooden case
Delivery Time :
30-60days
Payment Terms :
T/T or L/c
Supply Ability :
100 sets per month
Description

14 Stations Ridge Cap Roll Forming Machine

For Cinema / Theatre / Garden

Production Characteristic

  • Main power: 5.5KW
  • Hydraulic power: 3KW
  • Control system: PLC Panasonic
  • Corner ridge cap roll forming machine adopts new station to increase the solid of the machine the same time to make the machine more attractive.
  • The machine is controlled by control panel and simple push-button,more convenient to operate the machine.
  • Products are widely used in modern architecture roofing, the product increased the housing aesthetics.

Main Technical Specification

  • Thickness: 0.4-0.8mm
  • Speed: 10-20m/min
  • Roll station: 14stations (depend on the profile)
  • Main power: 5.5KW
  • Hydraulic power: 3KW
  • Control system: PLC Panasonic
  • Drive: by chain
  • Shaft material: 45# steel, outer diameter 70mm
  • Roller material: #45 steel
  • Number of forming station: 10 pairs
  • With hydraulic station, motor 3 KW
  • Cutting press 40 ton
  • Blade material of hydraulic cutter: G12 steel with quenched treated 60-62°C
  • Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factory
  • Automatic length measurement
  • Automatic quantity measurement
  • Computer is used to control length and quantity.
  • Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily

Working flow

Decoiling→/rollforming→/pressing and cutting→/run out table

Advantages

  • High efficiency
  • Lower cost
  • Long life time
  • Low energy consumption
  • ISO certificated

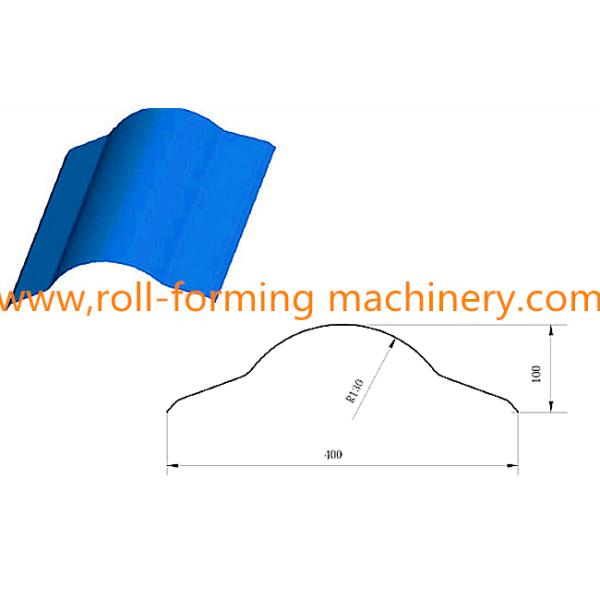

Profile drawing

14 Stations Ridge Cap Roll Forming Machine For Cinema / Theatre / Garden

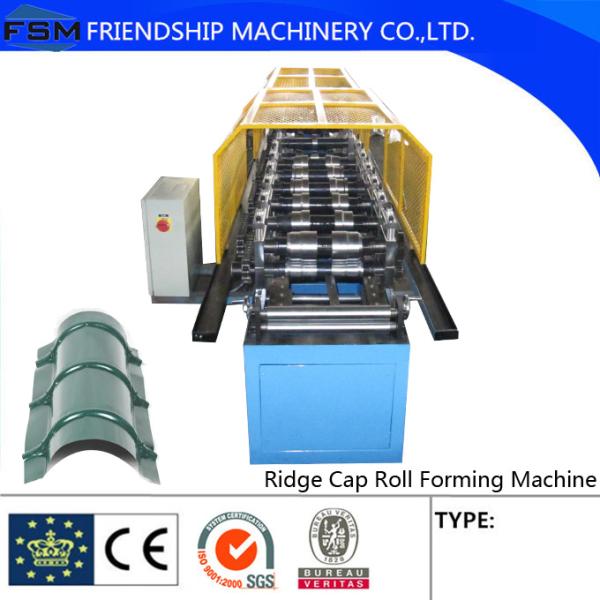

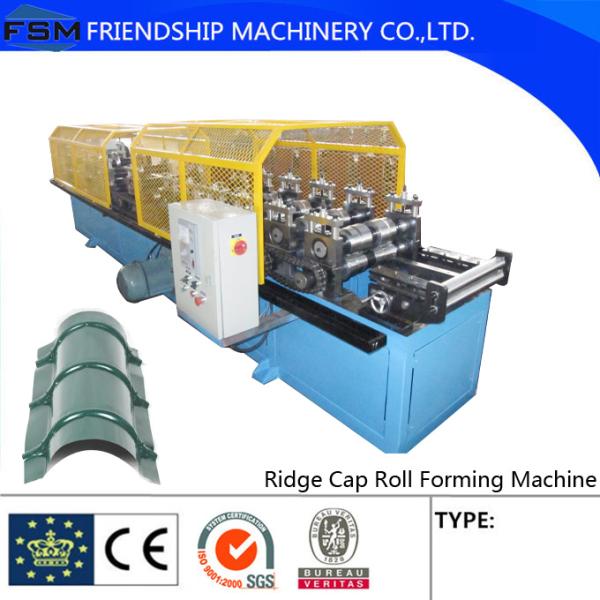

Pictures of machine

14 Stations Ridge Cap Roll Forming Machine For Cinema / Theatre / Garden

14 Stations Ridge Cap Roll Forming Machine For Cinema / Theatre / Garden
