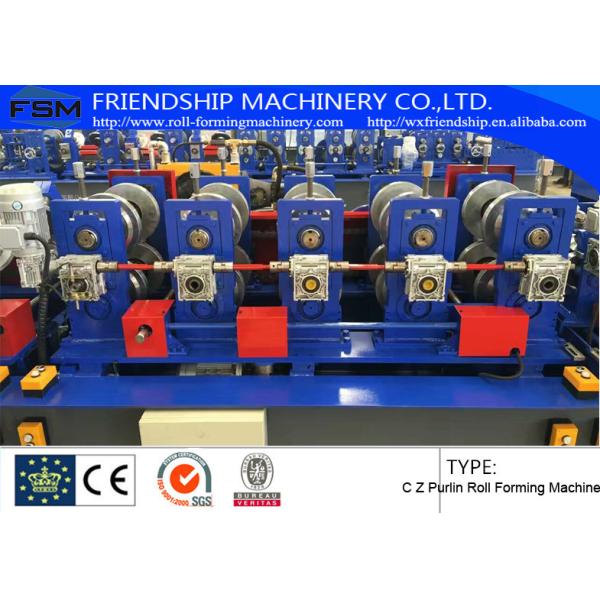

Hydraulic Punching and cutting C Z Purlin Roll Forming Machine With 15m/min

Introduction Of This Machine

• This kind of machine can produce C,Z two profiles,through the exchange side of the roller up and down position to achieve saving time.
• This machine also can automatically adjust roller horizontal distance to achieve C or Z purlins of the width with high precision,but also save time to increase production.
• We adopt the shape-steel structure and process as a whole after welding for this machine.
• It has the ability of strong loading,stable operation,low noise and high efficiency when running the machine.
• we adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

Main Compositions

• Hydraulic Decoiler....................................1unit
• Straightening.............................................1unit
• Roll Forming Machine...............................1unit
• PLC Control System..................................1unit
• Hydraulic Pressing&Cutting.......................1unit
• Hydraulic station..........................................1unit
• Production Stand........................................2unit

Noted:All the parameters can be changed as the customer's requirement.

C&Z Steel Producing Process Sketch

Details Of Roll Forming Main Machine

• Material of roller:GCr15,quenched
• Material of main shaft:45#forge steel
• Main motor:15KW
• Hydraulic power:7.5KW
• Working speed:15m/min
• Forming stations:18 stations
• Control system:PLC Panasonic
• Transmission:by chains 1.2 inch double time
• Main dimension:1100mm*1400mm*1400mm(L,W,H)
• Total weight:14000Kg

Control Panel (PLC Panasonic)

• Automatic length and quantity measurement
• Tolerance of length: 3m+/- 1.5mm
• Computer used to control length and quantity,the machine will automatically cut to length and stop when required quantity is achieved.
• Control panel:button-type switch and touch screen
• The program should be can set 5 different measure and quantity
• The picture of control panel

The Progress Of Punching And Cutting

• Material of punching mold: Cr12 HRC 58-62
• Punching with hydraulic drive
• This machine with 2 sets punching system

1.punching at end-wise controlled by PLC control system

2.punching at broad-wise adjusted by manual

• Material of cutting blade: CR12with heat treatment
• Hydraulic Cutting before forming: Cut the sheet before roll forming to required length
• Cutting motion: The main machine automatically doesn't stop and the continue punching and cutting .

Some Pictures Of This Machine

Some Pictures Of Factory
